Double Piece Automatic Box Stitching Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HS -3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20-40 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Double Piece Carton Box Stitching Machine Double Head Corrugated Sheet Stitcher Machine Maximum Cardboard(A+B)*2: 5800mm
Max. Tongue: 100mm Stitching Pitch Distance: 30-120mm
Maximum Nailing Speed: 500nail/min Total Weight: 4200kgs
Stitching No.: 2-99 Feeding Height: 600mm
High Light:

Double Piece Automatic Box Stitching Machine

,

500 nail/min Automatic Box Stitching Machine

Product Description

Double Piece Carton Box Stitching Machine Double Head Corrugated Sheet Stitcher Machine



Cradboard Stitching Machine Features



1. Imported Japanese Fuji series dual servo drives, with high precision, reducing mechanical transmission parts, and effectively reducing the mechanical failure rate.
2. After the electric baffle, it is driven by the Taiwan Liming stepper motor, which is accurate in size and more convenient to change size.
3. The whole set of nail heads. All computer gongs are made of special steel, precision processed, imported from Taiwan and Italy
4. Single nail or double nail can be nailed at one time, which can meet the different requirements of different customers for nails.
5. This kind of carton size change and adjustment starts from nails and can be completed in one minute, which greatly saves time and is easy to operate.
6. The front feeding part is automatically counted, and the feeding table is equipped with a photoelectric sensor device, which automatically raises the feeder.
7. This post has an automatic counting function, and the finished carton can be stacked according to the quantity (1-99), and sent to the end of the machine, which is convenient for packing and ordering
8. From semi-finished product binding to finished product packaging, the whole process of binding and placing only requires two people to operate, and the operation is simple, convenient and pay less.


Cradboard Stitching Machine Parameter



Model
HS-2400mm
HS-3000MM
Max. sheet size(A+B)*2(mm)
4600
5800
Min. sheet size(A+B)*2(mm)
1060
1060
Max.sheet size length(mm)
2250
2850
Min.sheet length(mm)
350
350
Max.sheet width(mm)
1200
1500
Min.sheet width(mm)
180
180
Min.sheet height(C+D+C) (mm)
400
400
Stitching pitch(mm)
30-120
30-120
No.of stitching
1-99
1-99
Machine speed(stitch/min)
500
500
Power Required(HP)
18
18
Machine Length(mm)
6000
6000
Machine width(mm)
3550
4150
Machine Weight(kg)
4000
4200
Max.stopper Measurement
600mm(C)
Max.TS width
45mm(E)
Min.Frist stitch Pitch
25mm(D) Uncover

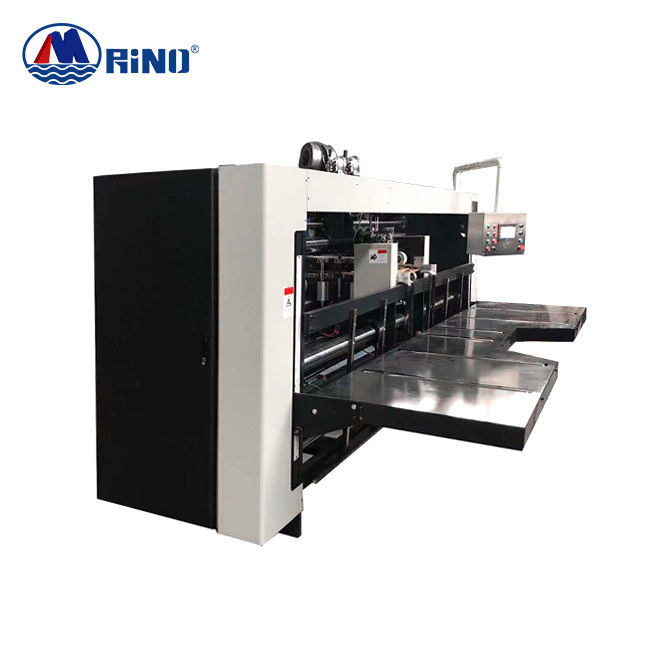

Double Piece Automatic Box Stitching Machine 0







Packaging&Shipping

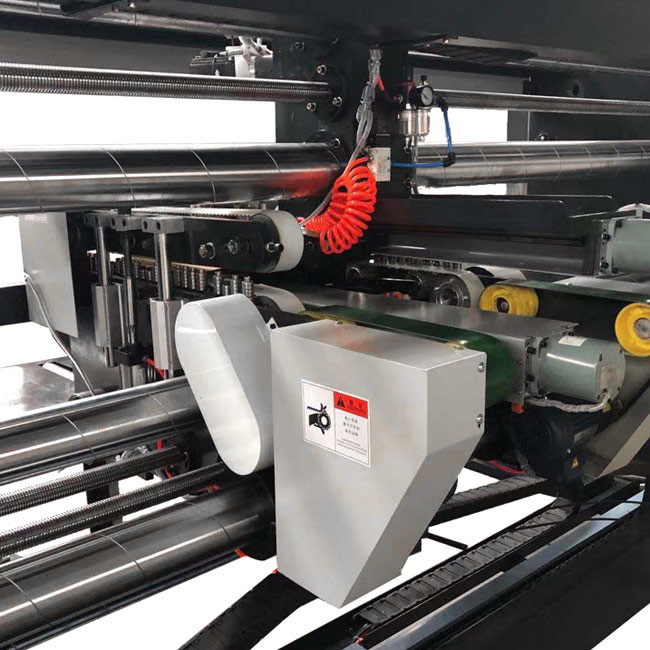

Double Piece Automatic Box Stitching Machine 1
