Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HT-BM2200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 30 Set/Month |
|
Detail Information |
|||
| Model: | HT-BM2200 | Qty. Of Blade: | 4 Or 5 Blades Or As Customer's Requirement |
|---|---|---|---|
| Max Slitting Width: | 2200mm | Thickness Of Blades: | 1.3mm |
| Power: | 4000W | Overall Dimension: | 3400*1600*1500mm |
| Voltage: | 220V/380V | Name: | Corrugated Box Thin Blade Slitter And Scorer Cardboard Machine |
| High Light: | Carton Box Thin Blade Slitting Machine,4000W Thin Blade Slitting Machine,RINO Thin Blade Slitting Machine |
||
Product Description

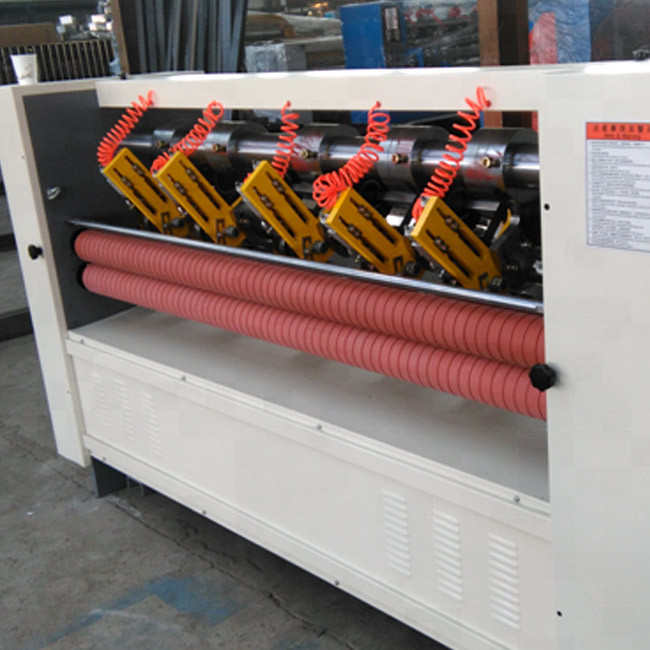

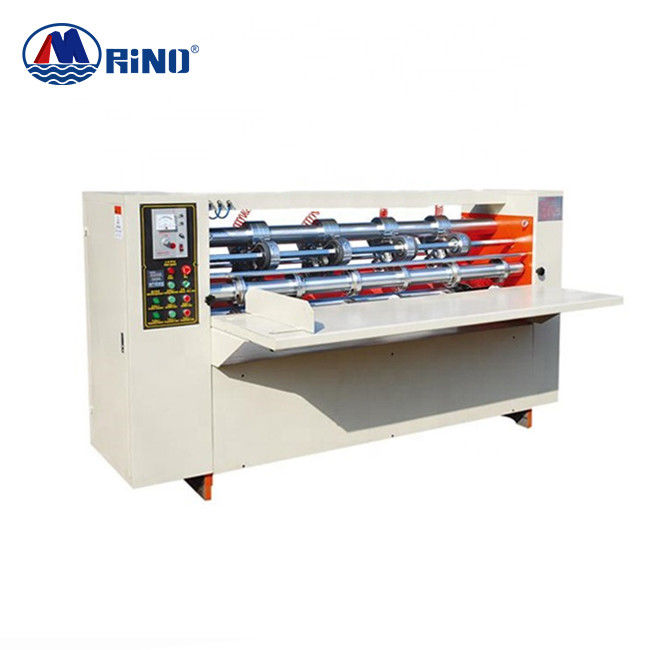

Corrugated Box Thin Blade Slitter And Scorer Cardboard Machine
Thin Blade Slitter Scorer Machine Introduction
Corrugated cardboard thin blade slitter and scorer machine widely used in carton box making machine .Thin balde slitter and scorer machine function is slitting corrguated paperboard to narrow pieces and creasing bending line for carton box making . Slitting blade and creasing wheels can be made according to customer request.
Parameter of Thin Blade Slitter Scorer Machine
| Model |
HT-BM1800 |
HT-BM2000 |
HT-BM2200 |
HT-BM2500 |
|
| Qty. of blade | pcs | 4 or 5 blades or as customer's requirement | |||
| Qty. of scorer | pcs | 6 or 8 scorers or as customer's requirement | |||
| Max slitting width | mm | 1800 | 2000 | 2200 | 2500 |
| Min slitting width | mm | 140 | 140 | 140 | 140 |
| Min scoring distance | mm | 30 | 30 | 30 | 30 |
| External diameter of blades | mm | Φ200 | Φ200 | Φ200 | Φ200 |
| Thickness of blades | mm | 1.3 | 1.3 | 1.3 | 1.3 |
| Power | KW | 4 | 4 | 4 | 4 |
| Overall dimension(L*W*H) | mm | 3000*1600*1500 | 3200*1600*1500 | 3400*1600*1500 | 3700*1600*1500 |
Packaging&Shipping
