Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HSF-F1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Board Production Line High Speed Finger Less Type Single Facer Carton Machine | Maximum Speed: | 100m/min |
|---|---|---|---|
| Working Speed: | 80m/min | Max. Working Width: | 1600mm |
| Steam Temperature: | 160—210 Centigrade | Power Requirements: | 220V, 50Hz |
| Diameter Of Press Roller: | 320mm | Diameter Of Corrugated Roller: | 280mm |
| High Light: | 80m/Min Corrugated Board Production Line,RINO Corrugated Board Production Line,Finger Less Single Facer Carton Machine |
||
Product Description

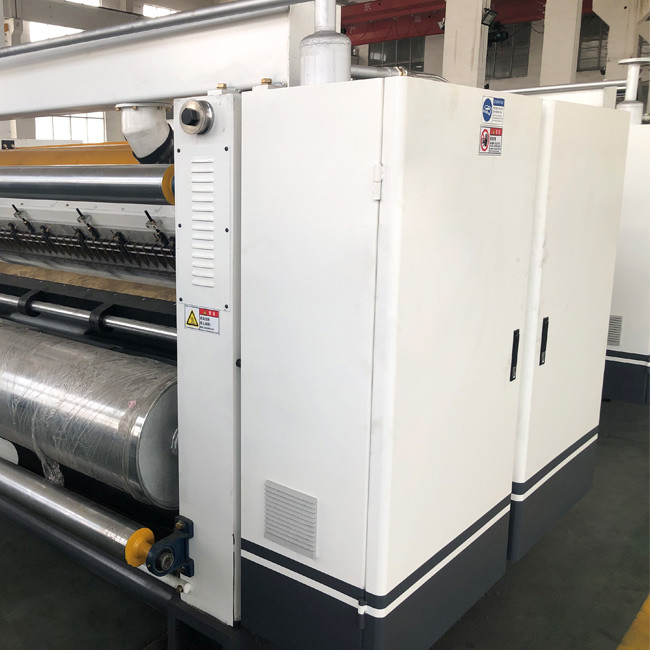

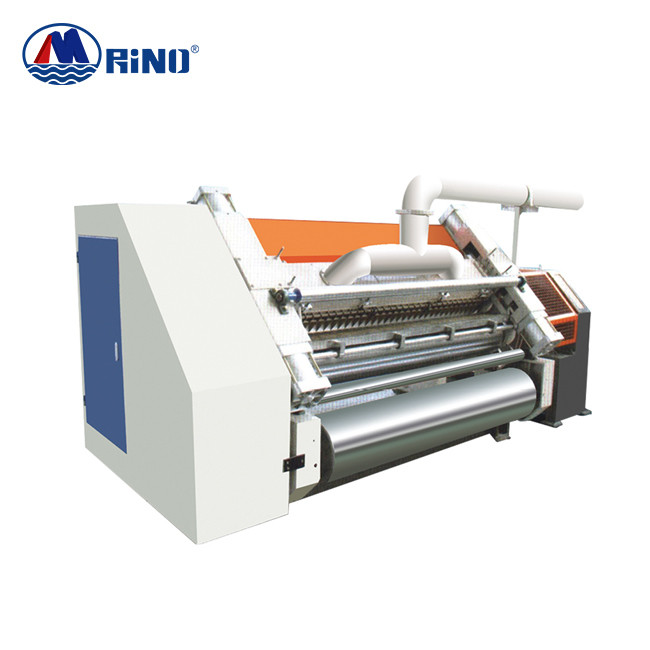

Corrugated Board Production Line High Speed Finger Less Type Single Facer Carton Machine
Introduction of Single Facer Corrugated Machine
1. Drive reducer box with oil immersed type lubricating to reduce nose keep running stable.
adopt gimbal transmission, seperate power.
2. Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
3. Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
Single Facer Corrugated Machine Parameter
| Max. machine speed | 100m/min |
| Economic speed | 80m/min |
| Max. working width | 1600mm |
| Steam temperature | 160—210 centigrade |
| Power requirements: | 220V, 50Hz |
| Diameter of corrugated roller | 280mm |
| Diameter of Press roller . | 320mm |
| Diameter of preheater roller | 300mm |
| Diameter of Glue roller | 215mm |
| Diameter of doctor roller | 105mm |
Machine Details
1. Corrugated diameter is 320mm, 48CrMo high quality alloy steel; Adopt independent gearbox, universal joint drive structure.
2. Surface of glue roller is ground, then with 25 line rut type net dot,then plating chrome
3. Surface of glue balance roller is ground then plating chrome
4. Cylinder control of the Lifting Up-down. Glue circulating system(storage tank+glue pump).
