Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HH-M1800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | 1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand Corrugator Making | Max. Width: | 1800mm |
|---|---|---|---|
| Min. Width: | 900mm | Max. Paper Mill Diameter: | 1500mm |
| Max Working Pneumatic Pressure: | 16-18Mpa | Power: | 380V, 50Hz |
| Length Of Track For Carry Paper Mill: | 6000mm | Function: | Kraft Paper Holder Feeding |
| High Light: | 1800mm Corrugated Board Production Line,380V Corrugated Board Production Line |
||
Product Description

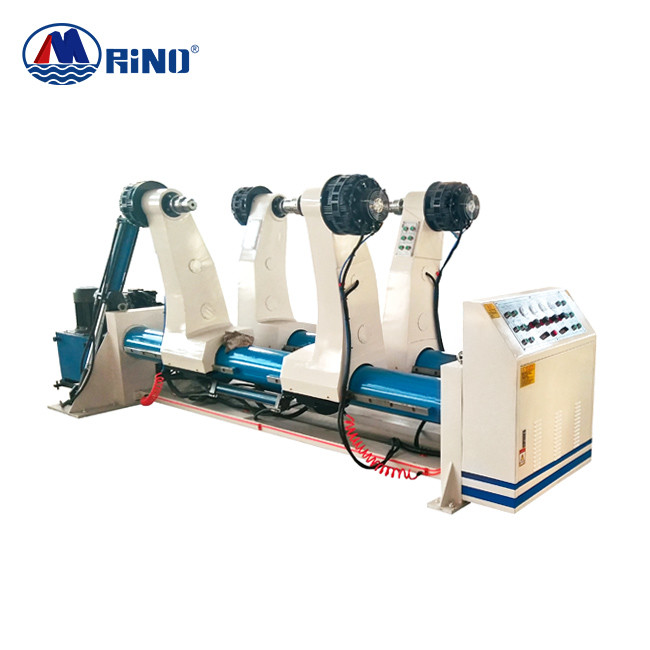

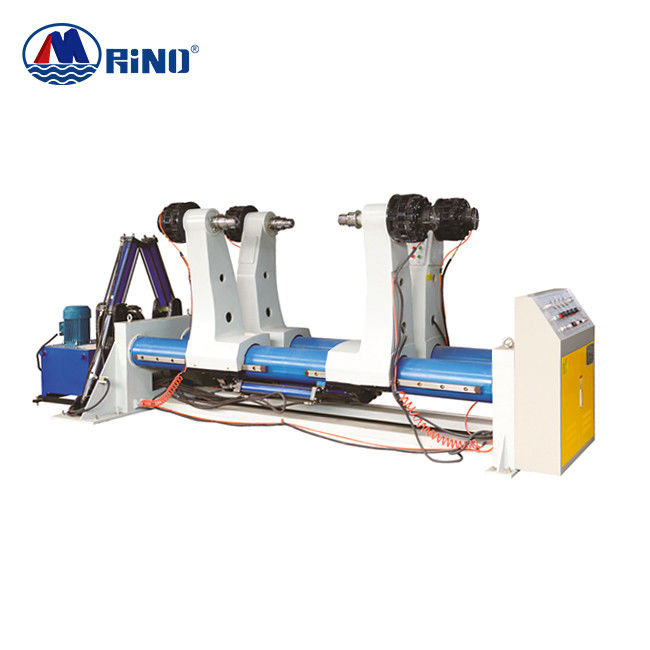

1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand Corrugator Making
Features of Hydraulic Shaft Less Mill Roll Stand
1. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
2. Brake adjustable adopts multipoint braking system.
3. Every stand matched two sets paper car , and they can paper on the both sides at the same time.
Parameter of Hydraulic Shaft Less Mill Roll Stand
| Name | Main Parameter | |
| 1 | Expiry width | 1800mm |
| 2 | Clamp paper range | Max:1600--1800mm Min:900mm |
| 3 | Clamp paper Dia | Max:1400mm Min:400mm |
| 4 | Singlearm Max load | Max weight: 1500kg |
| 5 | Clamp motor | Work power:0.75kw 4pcs |
| 6 | Lift motor | Work power:2.2kw 1pcs |
| 7 | Voltage | As customer’s required |
Hydraulic Shaft Less Mill Roll Stand Introduction
|
|
|
|
Main Parts
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang prduction | Q235AWelding parts |
| bearing | HRB OR C&U | |
| teeth chuck | 3-4inch shared | |
| Main electrical appliance | Siemens |
