Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HT-BC2200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2200 Corrugated Board Production Line Servo Computer Controlled Slitter Scorer | Width: | 2200mm |
|---|---|---|---|
| Max Speed: | 300m/min | Mini Thin Blade Width: | 135mm |
| Total Motor Power: | 67.5kw | Precision: | ±1mm |
| Thin Blade Qty: | 4、5、6、7 Blades | Scoring Wheel: | 6、8、10、12 Scoring |
| High Light: | Computer Controlled slitter scorer machine,Board Thin Blade Slitter Scorer Machine,Servo Thin Blade Slitter Scorer Machine |
||
Product Description

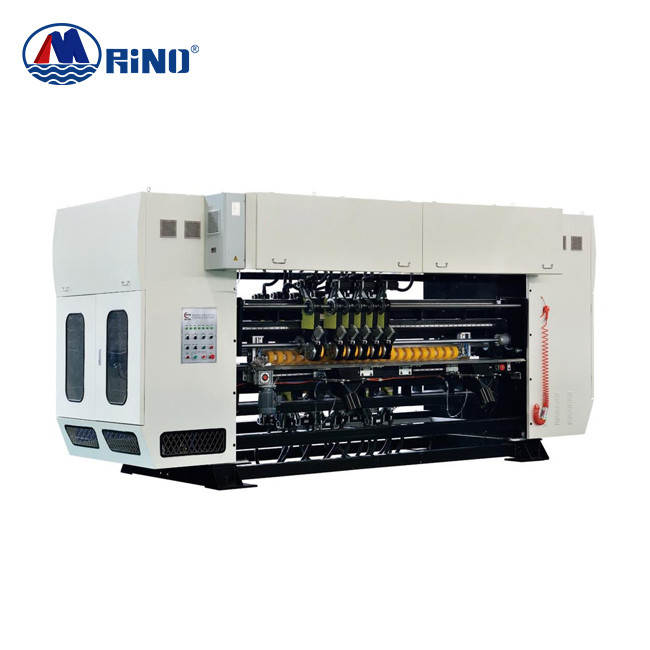

2200 Corrugated Board Production Line Servo Computer Controlled Slitter Scorer
Function Character of Thin Blade Slitter Scorer
★ The slitting knife and scoring wheel are in the same row. The independent servo motor controls the left and right movement of the blade and scoring . The cylinder controls the overall up and down.
★ Slitting and Scoring speed are controlled by inverter and adjusted synchronously with cardboard delivery speed.
★ There are two rows of scoring wheels in the front and rear, and the scoring wheels can be combined in any combination to achieve zero scoring.
★ The scoring point is concave-to-concave and sharp-to-flat (the flat-to-flat can be used to automatically control to forward and back, completely solve the problem of dents and drag marks) without manual operation.
★ Independently sealed control cabinet, standard industrial air conditioner, electrical equipment operates in dust-free, constant temperature and constant humidity environment.
★ Alloy tungsten steel blade, automatic sharpening.
Parameter of Thin Blade Slitter Scorer
| Width | 1600,1800,2200,2500 | Thin Blade Qty | 4,5,6,7 Blades |
| Mini Thin Blade Width | 135mm | Scoring Wheel | 6,8,10,12 Scoring |
| Mini Scoring Width | 0mm | Ordering Time | ≤3 seconds |
| Correction Range | Left and Right 100mm | Precision | ±1 |
| Total Motor Power | 67.5KW | Correction Precision | ±1 |
