2500mm Corrugated Board Production Line , Mill Roll Stand For Kraft Paper Holding

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HH-M2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2500 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand For Kraft Paper Holding Maximum Working Width: 2500mm
Minimum Working Width: 1000mm Maximum Paper Mill Diameter: 1500mm
Maximum Working Pneumatic Pressure: 16-18Mpa Power: 380V, 50Hz
Length Of Track For Carry Paper Mill: 6000mm Usage: Kraft Paper Holder Feeding
High Light:

2500mm Corrugated Board Production Line

,

Stand Corrugated Board Production Line

,

Kraft Paper Holding Mill Roll Stand

Product Description

2500 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand For Kraft Paper Holding



Features of Hydraulic Shaft Less Mill Roll Stand



1. Pneumatic braking is adopted, and the braking force can be adjusted according to the size of the paper roll at any time during the production process to maintain the standard strength. The brake mechanism adopts a multi-point disc structure, which has a sensitive action, uniform and stable output, long service life and easy replacement;

2. Inner-expansion top paper chuck is adopted to reduce the loss of base paper;

3. The cylinder is used to assist in pushing down the remaining base paper on the chuck



Parameter of Hydraulic Shaft Less Mill Roll Stand



Product Name
Hydraulic Mill Roll Stand
Width
1200-2800mm
Roll Paper Min. width
1200-2000mm: 800mm
2000-2800mm: 1200mm
Roll paper diameter
Max. 1500mm
Support Weight
Max. 3Tons
JIG
Standard: Inner expanding chuck
Option: Zero waste type chuck
Feeding trolley
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
Brake
Pneumatic, multi-point brake
Material
Cast Iron
Network control
Available, need to connect to Auto Splicer, Automatic tension adjustment
Centering device
Option
Connect with Roll paper conveying system
Available



Hydraulic Shaft Less Mill Roll Stand Introduction

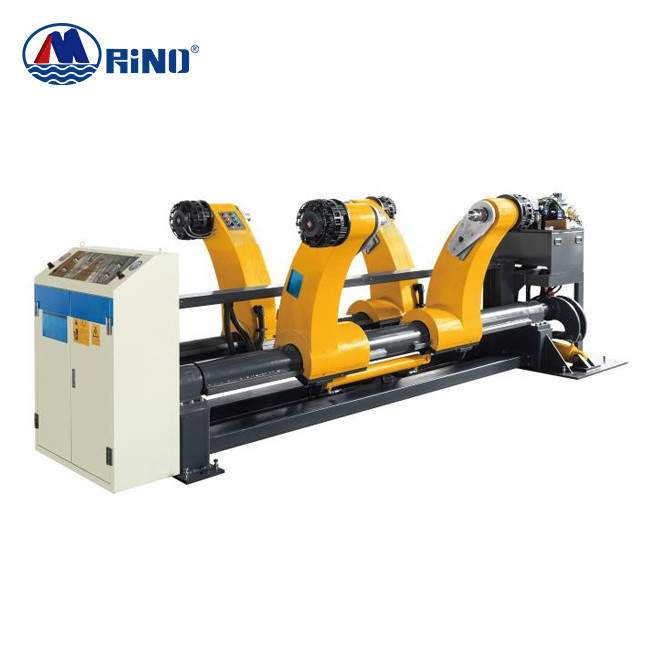

2500mm Corrugated Board Production Line , Mill Roll Stand For Kraft Paper Holding 0 2500mm Corrugated Board Production Line , Mill Roll Stand For Kraft Paper Holding 1



Structural Feature



1. This equipment is the unwinding equipment of the base paper in the corrugated board production line;

2. Operation of clamping, loosening, lifting, left and right translation of the original paper adopts hydraulic drive, double station design, which can replace the original paper roll without stopping;

3. Pneumatic braking is adopted, and the braking force can be adjusted according to the size of the paper roll at any time during the production process to maintain the standard strength. The brake mechanism adopts a multi-point disc structure, which has a sensitive action, uniform and stable output, long service life and easy replacement;

4. Inner-expansion top paper chuck is adopted to reduce the loss of base paper;

5. The cylinder is used to assist in pushing down the remaining base paper on the chuck



2500mm Corrugated Board Production Line , Mill Roll Stand For Kraft Paper Holding 2
