1100×780mm Carton Box Die Cutting Machine RINO 18 Ton Flat Bed Die Cutter

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1100 High Speed Corrugated Cardboard Carton Box Flat Bed Feeder Feeding Die Cutting Machine Max Cardboard Size: 1100×780mm
Min Cardboard Size: 400×350mm Max Speed: 7000 Sheets/h
Weight: 18T Total Power: 18KW
Vlotage: 220V/380V Max Die Cutting Size: 1080×760mm
High Light:

1100×780mm Carton Box Die Cutting Machine

,

RINO Flat Bed Die Cutter

,

18 Ton Carton Box Die Cutting Machine

Product Description

1100 High Speed Corrugated Cardboard Carton Box Flat Bed Feeder Feeding Die Cutting Machine





Carton Box Die Cutting Machine Introduction



Automatic die-cutting and creasing machine is one of the main equipment in the processing of color boxes and paper . It is famous for its excellent processing quality, and it has become the mainstream choice of manufacturers by replacing the hand-swing die-cutting machine.



Parameter of Die Cutting Machine



Model HD-F1100
Max feeding cardboard size 1100×780mm
Min feeding cardboard size 400×350mm
Max die cutting size 1080×760mm
Max die cutting pressure 300T
Cardboard thickness Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm
Max die cutting speed 7000 sheets/h
Weight 18Ton
Total power 18KW
Dimension

7300*2170*2245mm



Main Units



1100×780mm Carton Box Die Cutting Machine RINO 18 Ton Flat Bed Die Cutter 0

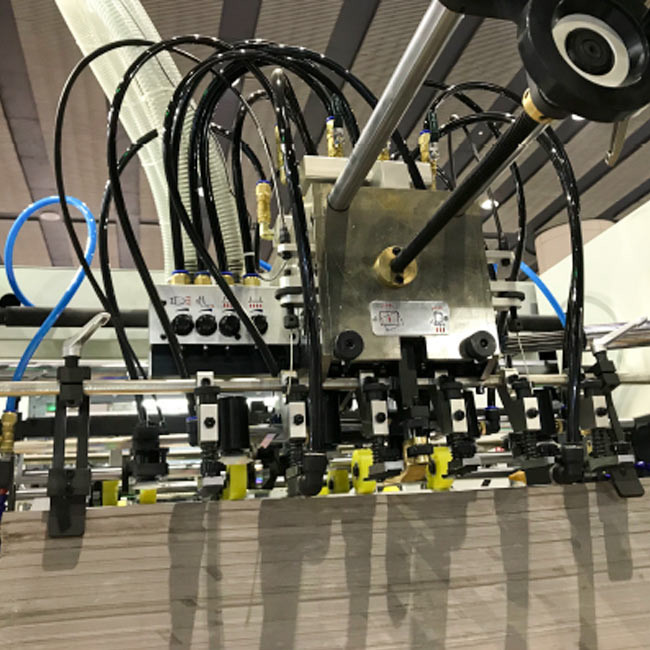

Feeder feeding unit



The improved paper feeder feeding device makes the adjustment of the paper push displacement easier and faster.

The paper feed head with four suction and four feeds with 8 suction nozzles has strong suction force and stable paper feeding. The suction nozzle can adjust the angle and suction air volume according to the deformation of the paper to realize the smooth conversion between thin paper and thick paper.



1100×780mm Carton Box Die Cutting Machine RINO 18 Ton Flat Bed Die Cutter 1

Die cutting unit



Turbine crank drives the elbow-type high-precision die-cutting upper workbench;

Fixed high-precision die-cutting lower workbench;

The main parts of the core unit (crankshaft, worm, worm gear, toggle shaft) are imported high-grade alloy steel;





Main Electrical device



Name Model Brand
Breaker 3P040 LG
Breaker 3PD16 LG
Breaker 2PD16 LG
Breaker 1PD6 LG
Air switch NSC60E3060N Schneider
PLC programmable controller CP1W-M60DT-D Omron
Expand CP1W-40EDT Omron
Expand CP1W-20EDT Omron
Communication card CP1W-CIF11 Omron
AC contactor LC1D32 Schneider
AC contactor LC1D12 Schneider
AC contactor LC1D09 Schneider
AC contactor LC1D50 Schneider
Switching power supply DR-120-24 MIWE
Transformer 380V-220V 670V TENGEN
Swim suppressor LAD4RCU Schneider
Interlock connector LAD9R1V Schneider

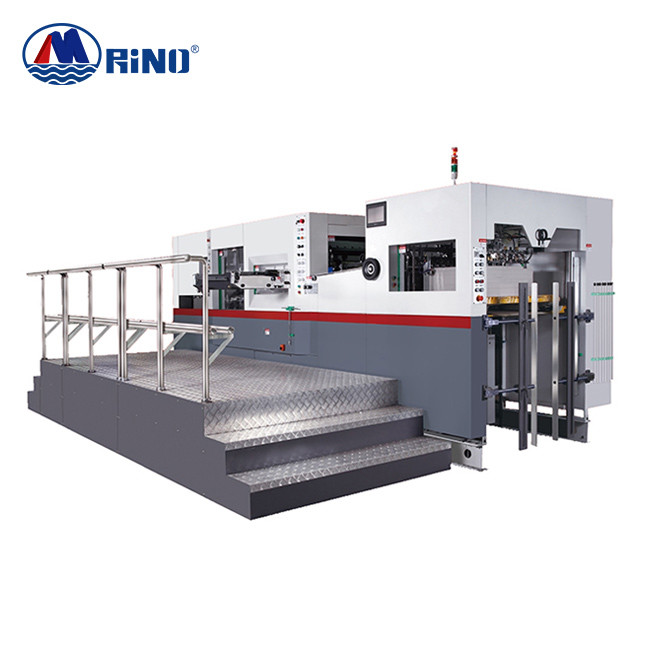

Finished Products
1100×780mm Carton Box Die Cutting Machine RINO 18 Ton Flat Bed Die Cutter 2
Machine details



1100×780mm Carton Box Die Cutting Machine RINO 18 Ton Flat Bed Die Cutter 3
