Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HH-M1800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | 1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand | Max. Working Width: | 1800mm |
|---|---|---|---|
| Min. Working Width: | 900mm | Max. Paper Mill Diameter: | 1500mm |
| Max Working Pneumatic Pressure: | 0.6-0.9Mpa | Power Requirements: | 380V, 50Hz |
| Length Of Track For Carry Paper Mill: | 6000mm | Usage: | Kraft Paper Holder Feeding |
| High Light: | 1800mm Corrugated Board Production Line,Roll Stand Corrugated Board Production Line,Shaft Less Mill Roll Stand |
||
Product Description

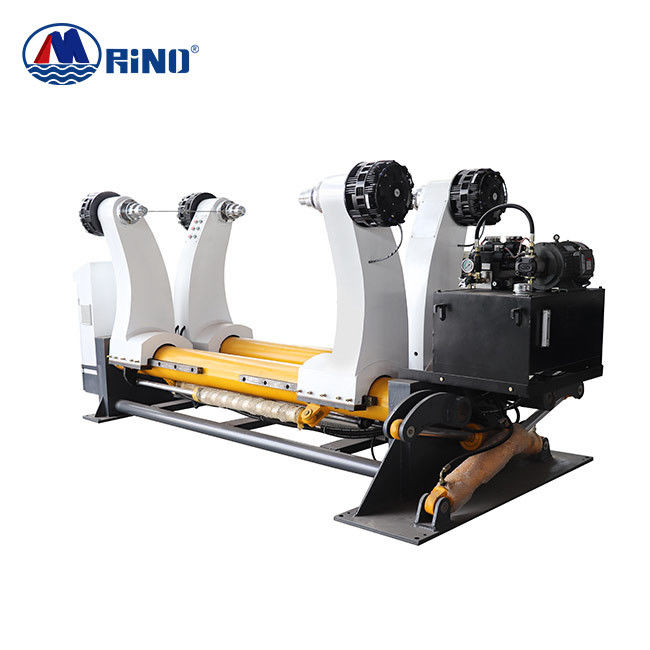

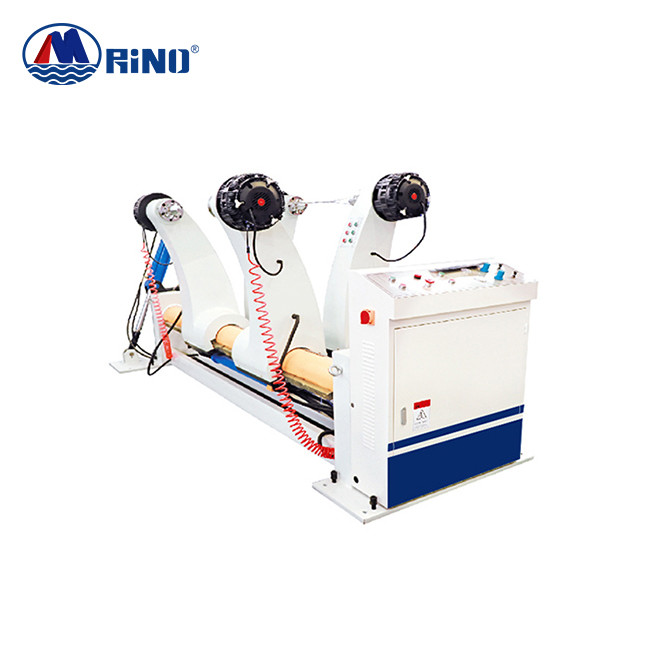

Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand
Features of Hydraulic Shaft Less Mill Roll Stand
* Made of QT450(cast iron), Single arm loads 3000kg, 6 set ot hydraulic cylinder control
* Internal expanding type Clamp chuck without damage roll paper core
* Multi-point brake realizes perfect tension balance control, produce high quality cardboard, reduce paper brake
* Heavy rail track to convey roll paper smoothly
* Auto-centering device ensure the centering of Roller paper
* Connect to the PLC network to realize synchronous tension control( Need Splicer and PMS system
Parameter of Hydraulic Shaft Less Mill Roll Stand
|
Product Name
|
Hydraulic Mill Roll Stand
|
|
Width
|
1200-2800mm
|
|
Roll Paper Min. width
|
1200-2000mm: 800mm
2000-2800mm: 1200mm
|
|
Roll paper diameter
|
Max. 1500mm
|
|
Support Weight
|
Max. 3Tons
|
|
JIG
|
Standard: Inner expanding chuck
Option: Zero waste type chuck
|
|
Feeding trolley
|
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
|
|
Brake
|
Pneumatic, multi-point brake
|
|
Material
|
Cast Iron
|
|
Network control
|
Available, need to connect to Auto Splicer, Automatic tension adjustment
|
|
Centering device
|
Option
|
|
Connect with Roll paper conveying system
|
Available
|
Hydraulic Shaft Less Mill Roll Stand Introduction
|
|
1 .Automatic alignment for paper core and clamp it.
2. Ball screw drive, lateral moving of hydraulic cylinder + detector, guide rail is provided; realizeΦ350-1500 automatic correction and clamping of scroll, automatic centering and automatic paper feed.

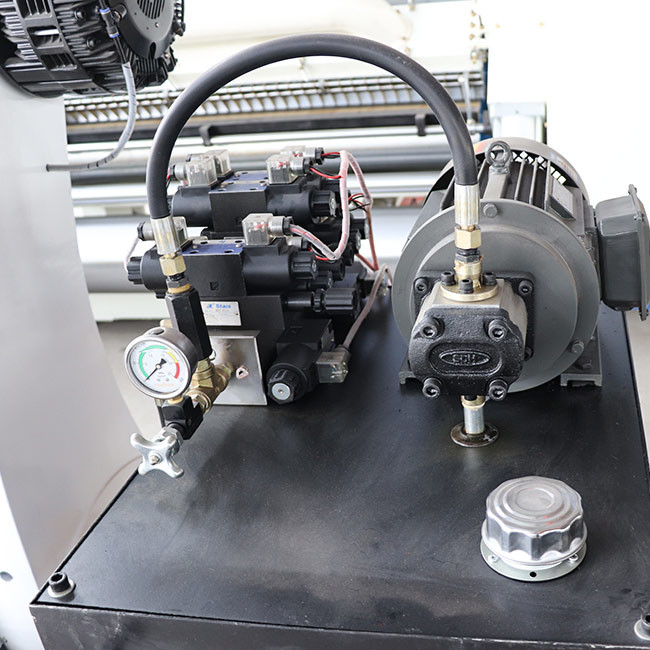

3. Hydraulic lifting and lateral moving.
4. Pneumatic adjustment is adopted for tension control; multi-point braking system is adopted.
5. Integral welding structure is adopted for feather key and supporting axle, so as to guarantee the service life.
6. Single-step 3-inch expandable chuck applied as the standard reel chuck.
7. Paper roll can be fed in/out from both left and right sides of the machine.
