440V 50Hz 7 ply Corrugated Board Production Line , High Speed Fingerless Type Single Facer

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HSF-F 1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Corrugated Board Production Line High Speed Finger Less Type Single Facer Max. Machine Speed: 100m/min
Economic Speed: 80m/min Max. Working Width: 1400mm
Steam Temperature: 160—210 Centigrade Power Requirements: 440V, 50Hz
Diameter Of Press Roller: 320mm Diameter Of Corrugated Roller: 280mm
High Light:

7 ply Corrugated Board Production Line

,

440V Corrugated Board Production Line

,

High Speed fingerless type single facer

Product Description

7 ply Corrugated Board Production Line  High Speed Finger Less Type Single Facer



Introduction of Single Facer Corrugated Machine



The corrugated board production line single facer machine consists of a roll holder and a single facer orrugated forming machine. First, the corrugated core paper is heated, and then the corrugated roll is used to form the required corrugated shape. Finally, the glue (starch adhesive) is applied to the corrugated peak and combined with the single facer corrugated The corrugated paper is bonded to form a single facer corrugated board. The heating methods of core paper include steam heating, electric heating and oil heating.
The single facer machining flute shape can be customized or customized.



Single Facer Corrugated Machine Parameter



Max. machine speed 100m/min
Economic speed 80m/min
Max. working width 1400mm
Steam temperature 160—210 centigrade
Power requirements: 440V, 50Hz
Diameter of corrugated roller 280mm
Diameter of Press roller . 320mm.
Diameter of preheater roller 300mm
Diameter of Glue roller 215mm
Diameter of doctor roller 105mm



Machine Details

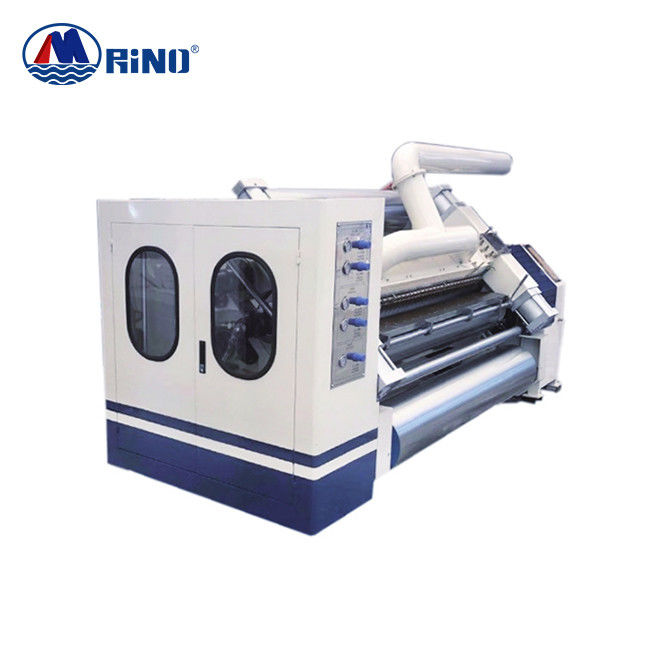

440V 50Hz 7 ply Corrugated Board Production Line , High Speed Fingerless Type Single Facer 0

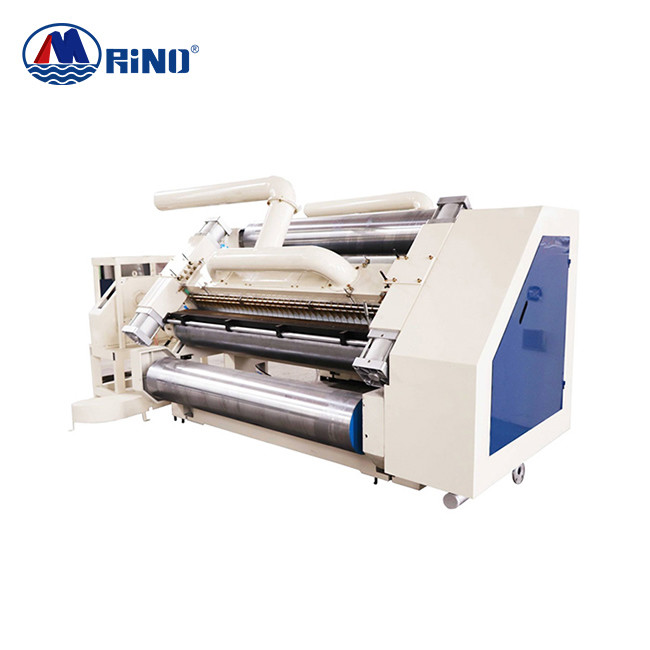

440V 50Hz 7 ply Corrugated Board Production Line , High Speed Fingerless Type Single Facer 1

* Design speed: 100m/min.

* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.

* corrugating roller: Dia.280mm with a drum.

* Press roller: Dia.320mm. with drum.

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.

* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for    maintenance.

* Gluing roller: surface is embossed with netting design and chrome plated.

* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.

* With preheating and preconditioning rollers.



Packaging&Shipping



440V 50Hz 7 ply Corrugated Board Production Line , High Speed Fingerless Type Single Facer 2
