Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Hot Selling Carton Box Folding Gluing Machine Factory | Model: | HF-GA2600 |
|---|---|---|---|
| Maximum Cardboard Size: | 2600×1100mm | Minimum Board Size: | 440×170mm |
| Power: | 12kw | Diemension Of Machine: | 15000*4600mm |
| Voltage Supply: | 380V/220V | Function: | Corrugated Cardboard Carton Box Pasting Gluing |
| High Light: | Automatic Carton Box Folding Gluing Machine,PLC Carton Box Folding Gluing Machine |
||
Product Description

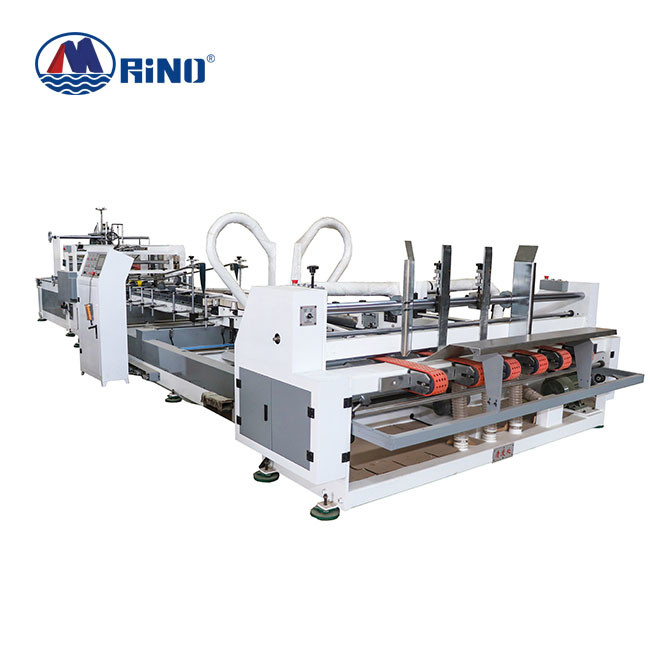

Product Introduction of Carton Box Folder Gluer
The whole machine adopts PLC computer programming controller, digital operation, touch screen input data can realize non-stop change of data, production speed, etc., the whole machine automatically feeds paper, automatically folds, and automatically counts . Highly configured, the middle section uses ultraviolet photoelectric to identify the slotting and pressing line of the carton, which is convenient to adjust the size of the carton. The left and right arm adjustment is a remote control device, which is convenient for operation and saves time. It is an ideal product for the carton industry.
Main units 1. Automatic paper feeding 2. Automatic gluing 3. Automatic folding 4. Automatic stacking and counting out of piles 5. Electrical components
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2200 | 440-2400 | 440-2600 | 440-2800 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2800×1200 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Adopting imported high-tech material suction belt, suction and feeding paper, automatic stacking input, ensuring smooth and high-speed paper feeding. 2. The high-grade electromagnetic clutch and electromagnetic brake system are selected to enable the paper feeding section to operate in a single sheet or continuously, effectively reducing the waste of cardboard and the accuracy of output cardboard in the specification adjustment.
|
|
|
Paper folding unit
1. The folding part is made of imported high-friction, ultra-wearable special materials, seamless butt-jointed endless conveyor belt, frequency conversion speed regulation can be individually controlled, and the automatic folding of the cardboard can be completed accurately and accurately. 2. Gluing width 20-25mm, under-gluing method 3. According to the box-shaped plastic box, it can be moved left and right, the glue is evenly spread, the amount of glue is stable, and the glue is saved and efficient.
|
| Name | Model | Place of origin |
| PLC | Siemens | Germany |
| Touch screen | Siemens | Germany |
| Contactor | Siemens | Germany |
| Intermediate relay | Siemens | Germany |
| Emergency stop | Siemens | Germany |
| Button | Siemens | Germany |
| Key switch | Siemens | Germany |
| Limit switch | Siemens | Germany |
| Photoelectric switch | Siemens | Germany |
| Terminals | Siemens | Germany |
| Cooling fan | China | |
| Electric bell | China | |
| Thermal overload relay | Schneider | Germany |
| Open 3P | Schneider | Germany |
| Open 1P | Schneider | Germany |
| Large load rectangular plug-in | China | |
| Aviation plug-in | China | |
| Transformer | 300VA | China |
| Frequency converter | Siemens | Germany |
