Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HF-GD3000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Name: | Semi Automatic Corrugated Cardboard Two Pieces Carton Box Folder Gluer Machine | Maximum Cardboard Size: | 1500x1300mm |
---|---|---|---|
Minimum Paper Feeding Size: | 550x450 Mm | Maximum Height Of Stacking: | 400mm |
Main Motor Supply: | 1.5KW | Total Power Consumption: | 18KW |
Total Weight: | 4MT | Overall Dimensions Size: | 4500x4000x1400mm |
Highlight: | Two Pieces Carton Box Folder Gluer Machine,1500mm Carton Box Folder Gluer Machine,1500mm semi automatic folder gluer machine |
Product Description

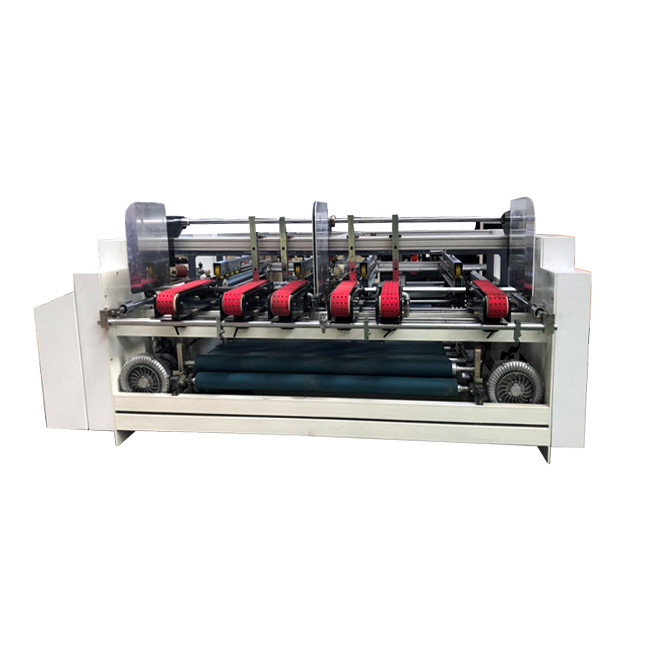

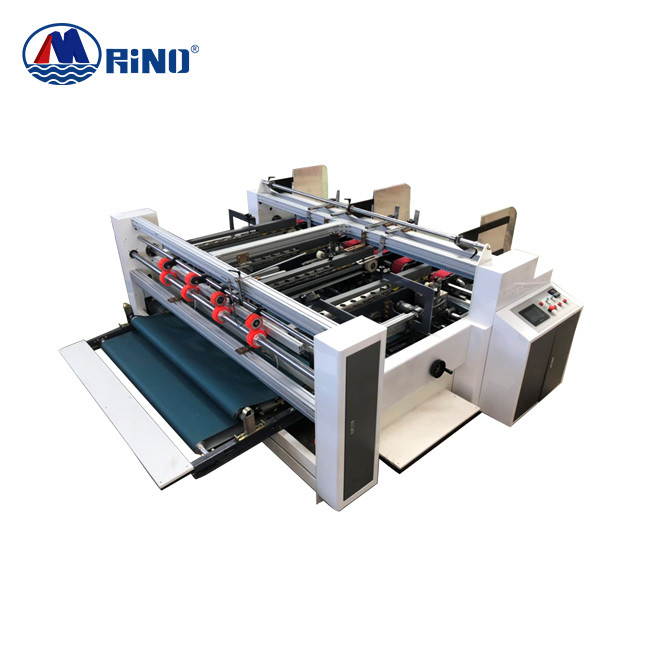

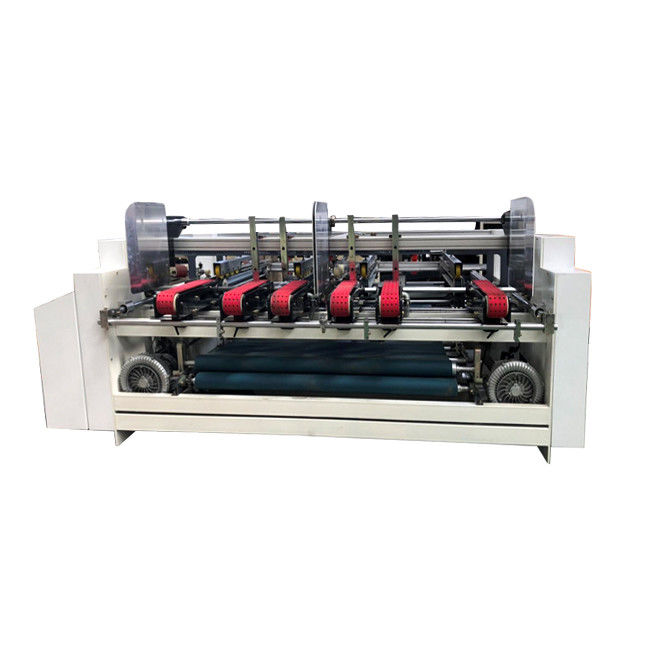

Semi Automatic Corrugated Cardboard Two Pieces Carton Box Folder Gluer Machine
Carton Box Folder Gluer Machine Introduction
1. The paper feeding unit of this machine has two stacks of cardboard, which can hold two sheets of AB paper, which improves production efficiency. The suction type structure is adopted below, which is beneficial to improve the conveying efficiency and accuracy.
2. The connecting unit adopts hot melt glue, and the four sides are fixed to ensure accurate registration and high precision.
3. The folding unit adopts manual folding, which solves the problem that the folding position is difficult to determine. Can effectively control the overlap margin.
4. The machine can be operated by two people, one person stacks paper and collects the completed work. The other folds the paper and feeds them into the compression belt. The whole machine is easy to operate and can be operated by novices.
Parameter of Carton Box Folder Gluer Machine
Model |
HF-GD2300 |
HF-GD2600 |
HF-GD3000 |
Max Output Paper Size (Single) | 1150x1300mm | 1300x1300mm | 1500x1300mm |
Mini Feed Size (Single) | 450x320 mm | 450x320 mm | 550x450 mm |
Max Height Of Stack | 400mm | 400mm | 400mm |
Main Motor Power | 1.5Kw | 1.5Kw | 1.5Kw |
Total Power | 14KW | 14KW | 18Kw |
Total Weight | 2.5T | 3.0T | 4.0T |
Dimensions Size | 3500x4000x1400mm | 4000x4000x1400mm | 4500x4000x1400mm |
Carton Box Folder Gluer Machine Detail
![]() |
Feeding Unit
1. Vacuum suction feeding, easy feeding of warped cardboard. 2. Adopt high-quality electromagnetic clutch and brake, the feeding section is controlled independently, and the operation is convenient.
|
![]() |
Alignment system
The connecting unit adopts hot melt glue, and the four sides are positioned to ensure accurate registration and high precision.
|
Main parts list
Name | Brand | Model |
Interface | HCFA China | EA-070BC |
PLC | HCFA China | A8c-24x24yt-d |
Inverter | LITE-ON Taiwan | DVP-M |
Power supply | Mean well Taiwan | S-250-24 |
Servo motor | HCFA China | MSD-KAD15AA+SM80 |
Contactor | Schneider France | D0910 |
Intermediate relay | Hequan China | |
Button | Schneider France | |
optoelectronic switch | Omron Japan | |
pneumatic element | AirTAC Taiwan |
