Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HF-GD3000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Name: | Double Pieces Semi Automatic Carton Box Folder Gluer Machine For Corrugated Box | Maximum Paper Size: | 1500x1300mm |
---|---|---|---|
Minimum Paper Feeding Size: | 550x450 Mm | Max Height Of Stacking: | 400mm |
Motor Power: | 1.5KW | Machine Total Power: | 18KW |
Total Weight: | 4Ton | Dimensions: | 4500x4000x1400mm |
High Light: | 18Kw Carton Box Folder Gluer Machine,Corrugated Box Automatic Folder Gluer,4Ton Carton Box Folder Gluer Machine |
Product Description

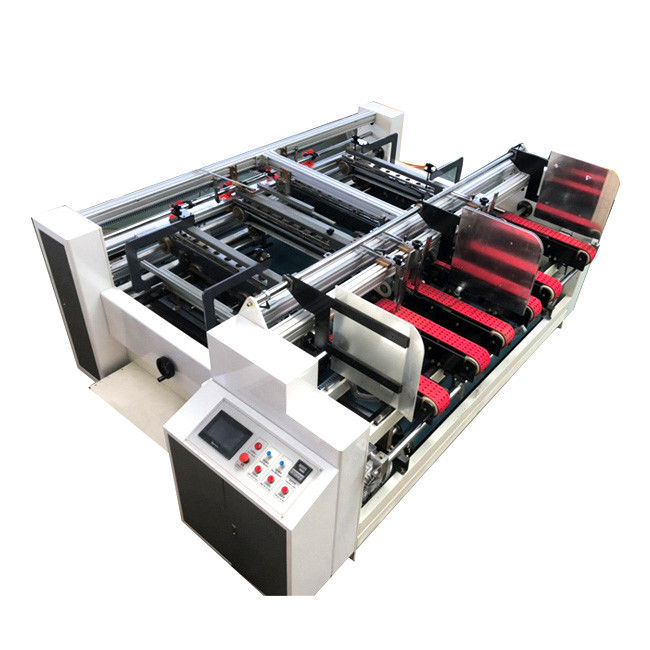

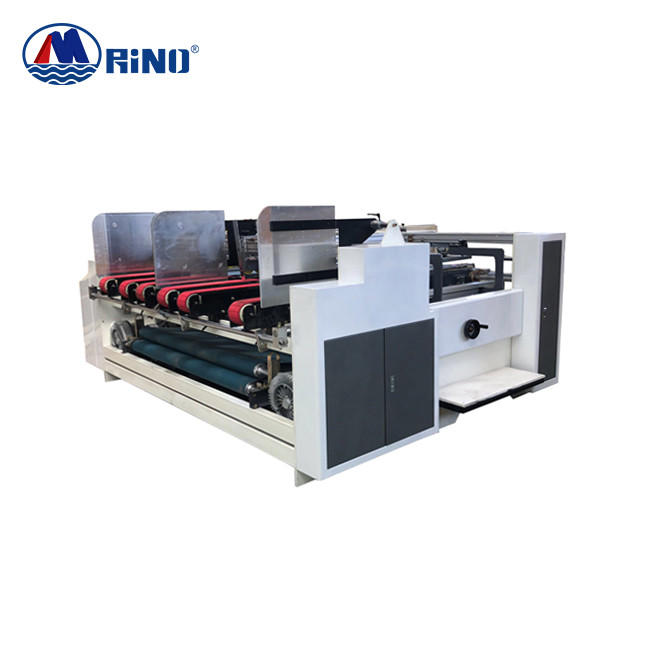

Double Pieces Semi Automatic Carton Box Folder Gluer Machine For Corrugated Box
Carton Box Folder Gluer Machine Introduction
1. High-speed semi-automatic folding gluing machine can be used for AA, AB two-piece or single-piece carton forming
2. This machine can replace manual gluing machine to reduce labor intensity. Because the degree of automation is high. Compared with the traditional glued carton machine, it not only reduces manpower, but also greatly improves product quality and reduces labor costs.
3. Only two workers are required to operate, one worker feeds paper and collects finished boxes, and another worker folds and arranges the boxes. Reduce machine space
4. Available plates: A-E flute.
5. The machine adopts double frequency conversion motor, PLC centralized control, high driving control precision.
Model | HF-GD2300 | HF-GD2600 | HF-GD3000 |
Max Output Paper Size (Single) | 1150x1300mm | 1300x1300mm | 1500x1300mm |
Mini Feed Size (Single) | 450x320 mm | 450x320 mm | 550x450 mm |
Max Height Of Stack | 400mm | 400mm | 400mm |
Main Motor Power | 1.5Kw | 1.5Kw | 1.5Kw |
Total Power | 14KW | 14KW | 18Kw |
Total Weight | 2.5T | 3.0T | 4.0T |
Dimensions Size | 3500x4000x1400mm | 4000x4000x1400mm | 4500x4000x1400mm |
Carton Box Folder Gluer Machine Detail
![]() |
Feeding Unit
Powerful adsorption belt system, single and double sheets can be sent.
|
![]() |
Gluing unit
All glue cylinders can be loaded and unloaded. The lower glue cylinder is equipped with 1-2. Choose according to the actual situation. The glue can also be adjusted and stabilized, and maintenance is convenient. The thickness of the rubber wheel is 20mm and is durable.
|
Main parts list
Name | Brand | Model |
Interface | HCFA China | EA-070BC |
PLC | HCFA China | A8c-24x24yt-d |
Inverter | LITE-ON Taiwan | DVP-M |
Power supply | Mean well Taiwan | S-250-24 |
Servo motor | HCFA China | MSD-KAD15AA+SM80 |
Contactor | Schneider France | D0910 |
Intermediate relay | Hequan China | |
Button | Schneider France | |
optoelectronic switch | Omron Japan | |
pneumatic element | AirTAC Taiwan |
