Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Making Folding Carton Gluing Machines Folder Gluer Machines | Model: | HF-GA2400 |
|---|---|---|---|
| Maximum Paperboard Size: | 2400×1100mm | Minimum Paperboard Size: | 440×170mm |
| Power Supply: | 12kw | Overall Diemension: | 15000*4200mm |
| Voltage Supply: | 380V/220V | Usage: | Corrugated Carton Box Pasting |
| High Light: | Corrugated Carton Box Folder Gluer Machine,12kw Carton Box Folder Gluer Machine,CE corrugated folder gluer machine |
||
Product Description

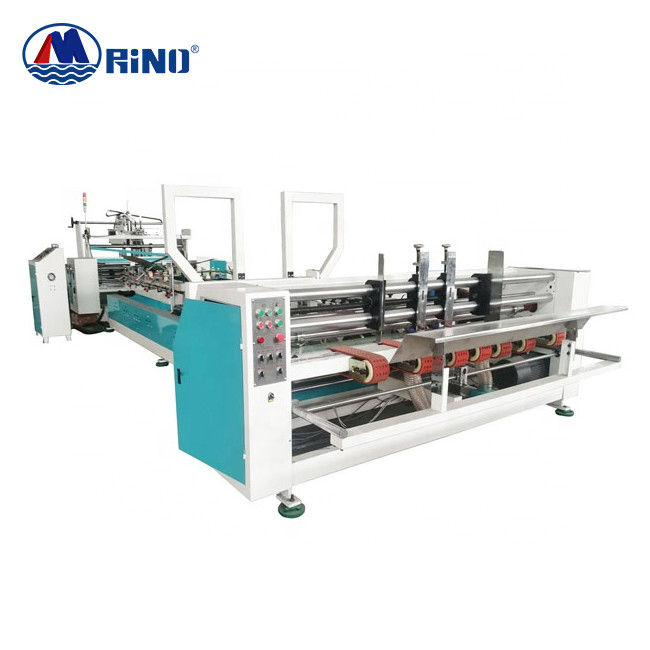

Carton Box Making Folding Carton Gluing Machines Folder Gluer Machines
Product Introduction of Carton Box Folder Gluer
1. Compared with folding gluing box by manual, our machine can save more labor and nearly half glue at the same time more production cost.
2. It glue right without spilling glue, realized little investment and malfunction and reduced the dependency of labor.

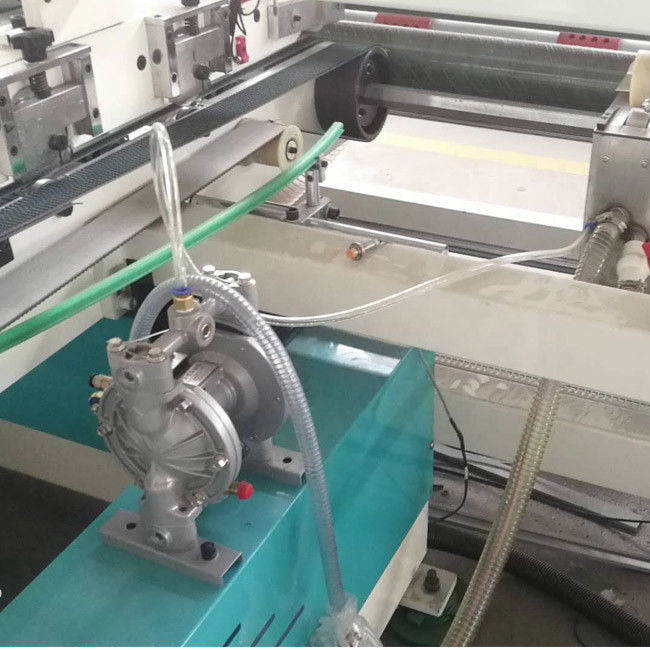

Composed of 1) Automatic cardboard feeding unit 2) Automatic gluing unit 3) Automatic folding unit 4) Automatic piling & counting unit 5) Automatic strapping unit (optional) 6) Electric elements
Parameter of Carton Box Folder Gluer
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2200 | 440-2400 | 440-2600 | 440-2600 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2600×1600 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1) Adopt imported paper conveying belt with suction fan, and the automatic stacker assured the smoothly paper feeding. 2) The special machine design make the adjustment, side guide plate, paper feeding blade separated from belt. It is easy to changed the size of box
|
|
|
Paper folding unit
Adopt imported conveying belt with high friction, keep the synchronous speed with paper feeding unit. The high speed converter can be controlled independently.
|
Electrical device
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
