Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

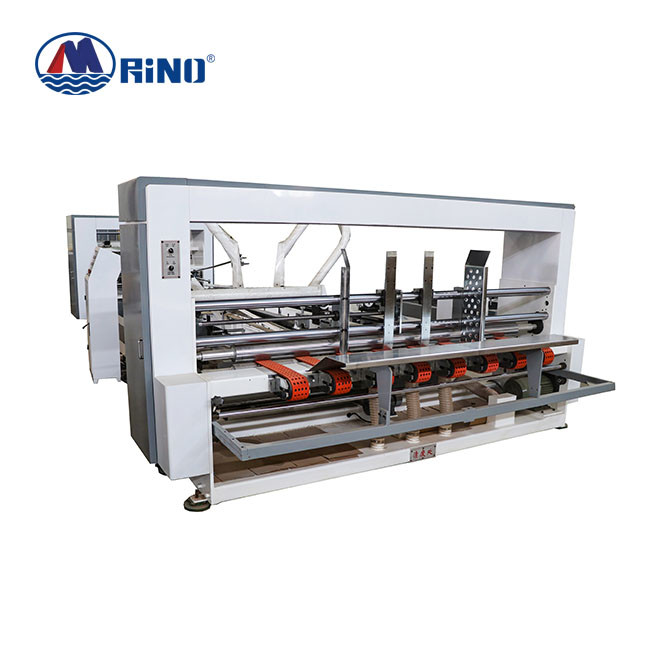

| Name: | Carton Box Folder Gluer Machine Folding Gluing For Corrugated Board Price | Model: | HF-GA2400 |
|---|---|---|---|
| Maximum Cardboard Size: | 2400×1100mm | Minimum Board Size: | 440×170mm |
| Power: | 12kw | Diemension Of Machine: | 15000*4600mm |
| Voltage Supply: | 380V/220V | Function: | Corrugated Cardboard Carton Box Pasting Gluing |
| High Light: | Corrugated Board Folder Gluing Machine,Carton Box Folder Gluer Machine 12kw,Touch Screen Folder Gluing Machine |
||
Product Description
This machine can realize full computer adjustment of gluing unit, feeding unit and folding unit. Just input three data (length, width, height dimension) on the touch screen, and the machine can automatically adjust to the exact position.
The machine is also equipped with a single computer numerical control adjustment, which can be adjusted in any single position, and also has an adjustment button.
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2200 | 440-2400 | 440-2600 | 440-2800 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2800×1200 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Adopt the belt front edge suction and paper feeding method, which is accurate and reliable. 2. Adopt high-end electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be controlled separately, and the operation is simple and reliable.
|
|
|
Paper folding unit
1. The main motor adopts frequency conversion speed regulation system, no noise, flexible and stable speed regulation 2. Imported high-friction belts are used to convey the cardboard, automatically stacked
|
|
|
Stacking unit
1. Pneumatic method for counting and pushing out, PLC electronic control, reliable action, accurate and fast 2. Adopt PLC programming controller and touch screen digital control, simple operation, reliable action, input data without stopping, automatic counting 3. The output part adopts the synchronous pressing method of the bottom conveyor belt and the upper pressing belt to make the finished carton stick firmly and output neatly.
|
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
