Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

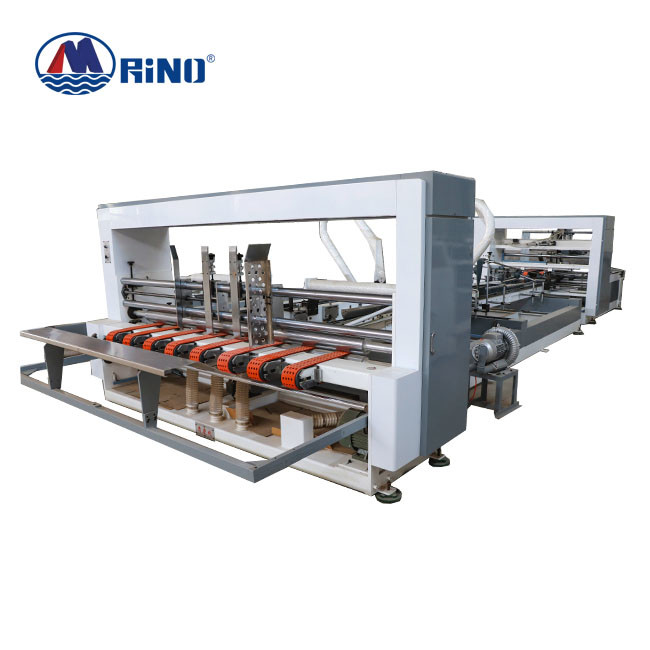

| Name: | 2200mm Folder Gluer Machine For Corrugated Board Carton Manufacturer | Model: | HF-GA2200 |
|---|---|---|---|
| Maximum Cardboard Size: | 2200×1100mm | Minimum Board Size: | 440×170mm |
| Power: | 12kw | Diemension Of Machine: | 15000*4600mm |
| Voltage Supply: | 380V/220V | Function: | Corrugated Cardboard Carton Box Pasting Gluing |
| High Light: | 2200mm Folder Gluer Machine,PLC Carton Folder Gluer Machine,Corrugated Board Folder Gluer Machine |
||
Product Description
The automatic folder gluer is composed of three parts: feeding part, gluing folding forming part, counting and palletizing output part. PLC digital display speed, touch screen display amplitude modulation, simple and precise control method. Automatic feeding (gluing), automatic folding, automatic counting, stacking output. The working speed is 150m/min, and the design speed is 180m/min.
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2200 | 440-2400 | 440-2600 | 440-2800 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2800×1200 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Linked with the folding part, frequency conversion speed regulation, paper feeding speed 0-150m/min.
|
|
|
Paper folding unit
1. The folding part is equipped with a cardboard correction device and an indentation correction device. 2. The folding part has two rows of adjustable inner positioning guide wheel system, which has higher forming accuracy. 3. Folding speed 0-150m/min.
|
|
|
Stacking unit
1. Use belt to transport cartons, stack neatly, speed 0-130m/min 2. Use the flap board to hit the carton, which has the function of correcting deviation, and the deviation is small.
|
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
