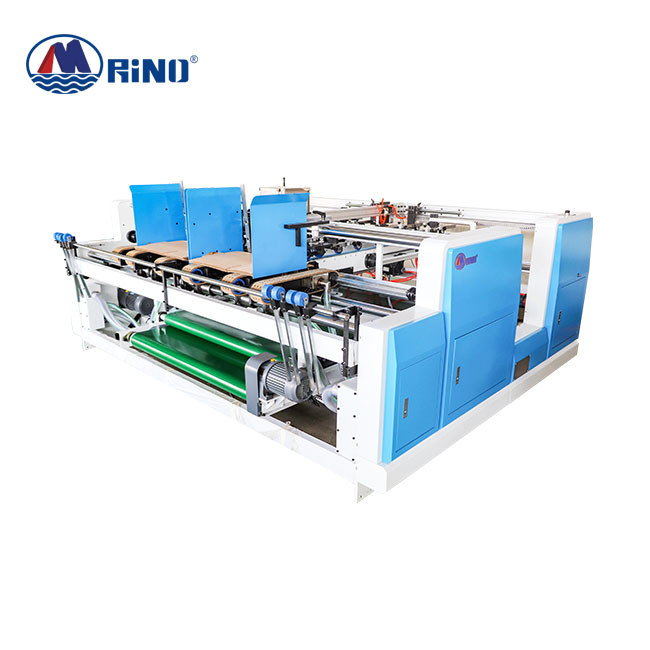

2300mm Pressing Carton Box Folder Gluer Machine Double Pieces

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-GD2300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2300mm Carton Box Gluer Machine Pressing Type Double Pieces Cardboard Gluing Maximum Paperboard Size: 1150×1060mm
Minimum Paperboard Size: 450×260mm Maximum Height Of Stacking: 400mm
Maximum Speed: 3000 Pieces/hour Machine Power: 11 Kw
Total Weight: 2.4 Ton Overall Dimensions Size: 3000×3050 ×1460mm
High Light:

Pressing Carton Box Folder Gluer Machine

,

2300mm Carton Box Folder Gluer Machine

,

Double Pieces Carton Folder Gluer Machine

Product Description

2300mm Carton Box Gluer Machine Pressing Type Double Pieces Cardboard Gluing

Carton Box Gluer Machine Introduction



1. Alignment system: The patented motion control servo positioning system ensures that the carton alignment is more precise and the digital adjustment is faster.



2. Gluing mechanism: It adopts hot and cold double-coating structure. The hot glue adopts aluminum glue box to heat up quickly, and the cold glue uses stainless steel plastic box to resist corrosion.



3. Paper delivery mechanism: manual folding molding makes the precision of various products controllable.



This machine adopts frequency converter for speed regulation, PLC control, model conversion, and cooperates with high-speed clutch, and the operation control is accurate.
This machine adopts a separate paper feeding system and adopts a hard suction paper feeding method, which can feed double sheets and single sheets.
When this machine is processing two cartons, the two sheets can be glued when moving, the four positions are accurate, the folded part can be folded manually, and the intersection part of the creasing line and the corrugated line can be manually erected to complete the final forming.


Parameter of Carton Box Gluer Machine



Model HF-GD2300
Maximum Size

1150×1060mm


Minimum size

450×260mm


Applicable
Paper

A-E 3/5ply corrugated board
and cardboard


Maximum speed

0-3000 pieces/hour


Total power 11 kw
Weight 2 .4 TON
Dimensions

3000×3050
×1460mm



Carton Box Gluer Machine Detail


2300mm Pressing Carton Box Folder Gluer Machine Double Pieces 0

Main parts list


PARTS NAME BRAND
FEEDING MOTOR ZHONGDA (ZD CHINA)
FEEDING PUMP NAXIDE (CHINA )
LINEAR GUIDEWAY KOREA IMPORTED
GUIDE SCREW HIWIN TAIWAN
SOLENOID VALVE AIRTAC TAIWAN
INVERTER TAIWAN DELTA
SERVO MOTOR DELTA TAIWAN
HUMAN MACHINE INTERFACE TAIWAN DELTA
POWER TAIWAN DELTA
PROGRAM CONTROLLER TAIWAN DELTA
FASTENERS TAIWAN JINYI, PENGCHI,
RELAY JAPAN IMPORTED
BUTTON SCHNEIDER
PAPER FEED BELT TAIWAN IMPORTED
EXCITED PAPER FEEDING BELT TAIWAN IMPORTED
BEARING RENBEN NSK.HRB
PROXIMITY SWITCH XINLING
THERMOSTAT XINLING
GLUING MOTOR CHINA
FORWARD PAPER ALUMINUM PLATE CHINA
TIMING BELT IMPORTED
CLUTCH CHINA



Packing&Shipping

2300mm Pressing Carton Box Folder Gluer Machine Double Pieces 1
