Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Maximum Paperboard Length: | 2800mm | Minimum Paperboard Length: | 340mm |
|---|---|---|---|
| Name: | Semi Automatic Carton Box Folder Gluer Machine Pasting Folding Gluiing Machine | Maximum Corrugated Cardboard Width: | 1515mm |
| Minimum Corrugated Paper Cardboard Width: | 250mm | Feeding Cardboard Height: | 900mm |
| Main Motor Power Supply: | 2200w | Machine Weight: | 2 MT |
| Highlight: | 2200w Semi Automatic Folder Gluer Machine,2800mm Semi Automatic Folder Gluer Machine |
||
Product Description

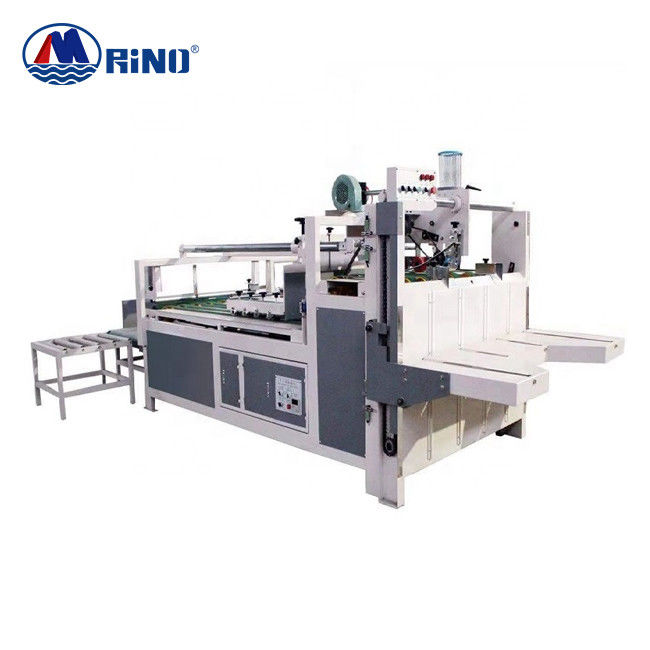

Semi Automatic Carton Box Folder Gluer Machine Pasting Folding Gluiing Machine
Carton Box Folder Gluer Introduction
This machine is suitable for folding and gluing all kinds of cardboard. The operation is simple and no training is required. Quickly change orders in one minute. The carton glue is the smallest. The size is 260 mm. It is the best choice for carton manufacturers.
The main structure of the machine
1. The semi-automatic gluing machine consists of a host and two small conveyors.
2. The main forms include template, upper and lower worktables, front feeding section, front proofing section, middle conveying section, middle pressure section, side carton conveying section, and electrical control system.
Parameter
| Max cardboard size (length +width)*2(mm) | 2800 |
| Min cardboard size (length +width)*2(mm) | 340 |
| Max cardboard size (width +height) (mm) | 1515 |
| Min cardboard size (width +height) (mm) | 250 |
| Feeding cardboard height(mm) | 900 |
| Power of main motor | 2.2 |
| Machine weight(kg) | 2000 |
| Machine speed(pieces /min) | 40 |
| Dimension(mm) length *width *height | 5500 x 1800 x 2000 |

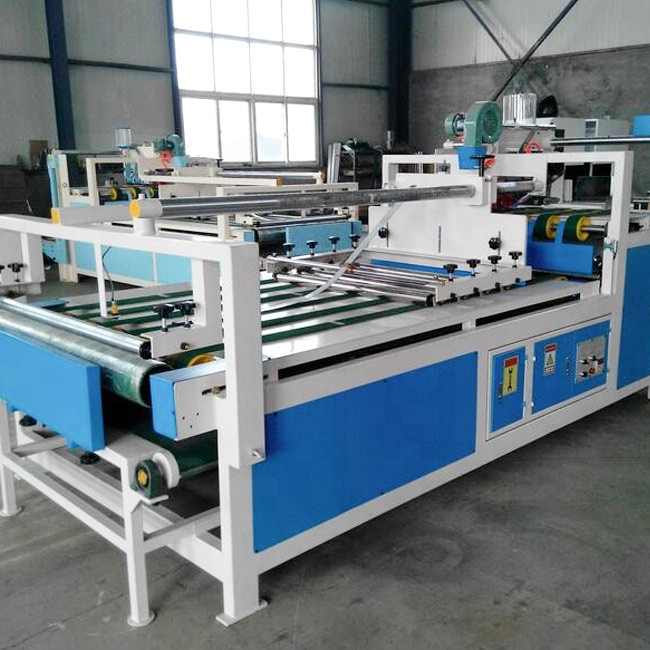

Machine Details
