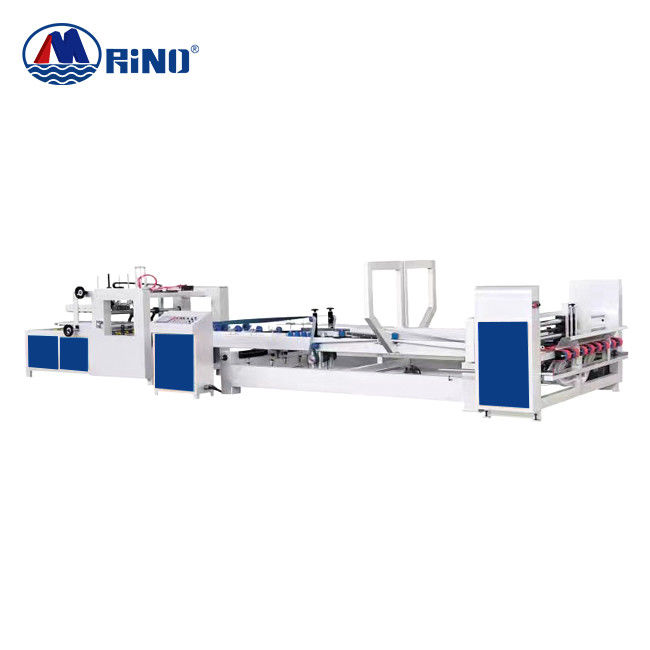

Corrugated Automatic Carton Folder Gluer Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HRT-2600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Corrugated Paper Box Automatic Folder Gluer Folding Pasting Machine For Carton Boxs Model: HRT-2800
Maximum Cardboard Size: 2800×1100mm Minimum Cardboard Size: 440×170mm
Power Consumption: 12kw Diemension Of Machine: 15000*4600mm
Voltage Supply: 380V/220V Function: Corrugated Cardboard Carton Box Pasting Gluing
High Light:

Corrugated Automatic Carton Folder Gluer Machine

,

2800mm Automatic Carton Folder Gluer Machine

Product Description

Corrugated Paper Box Automatic Folder Gluer Folding Pasting Machine For Carton Boxs



Product Introduction of Carton Box Folder Gluer



This machine can realize the full computer adjustment of the gluing unit, paper feeding unit and folding unit. Just input three data (length, width, and height) on the touch screen, and the machine can automatically adjust to the correct position.

The machine is also equipped with a single computer numerical control adjustment, which can be adjusted in any unit, and an adjustment button is also set to meet different operating habits.



Parameter of Carton Box Folder Gluer



Model

HRT-2200

HRT-2400

HRT-2600

HRT-2800

Size A(mm) 80-850 80-850 80-850 80-850
Size B(mm) 440-2200 440-2400 440-2600 440-2600
Size C(mm) 130-840 130-840 130-840 130-840
Size D(mm) 170-1100 170-1100 170-1100 170-1100
Installation area(mm) 4000×15000 4200×15000 4400×15000 4600×15000
Motor Power(kw) 12kw 12kw 12kw 12kw
Maximum unfolding size(mm) 2200×1100 2400×1100 2600×1100 2600×1600
Minumum unfolding size(mm) 440×170 440×170 440×170 440×170

Corrugated Automatic Carton Folder Gluer Machine 0

Details Introduction

Corrugated Automatic Carton Folder Gluer Machine 1

Paper Feeding Unit



1. Vacuum suction and feeding, easy feeding of warped cardboard.
2. Using high-quality electromagnetic clutch and brake, the feeding section is controlled independently, and the operation is convenient.



Corrugated Automatic Carton Folder Gluer Machine 2

Paper folding unit



1. Simple structure, high reliability, adjustable glue volume and easy cleaning.
2. Using stainless steel rubber wheels, long life, saving glue cost.



Corrugated Automatic Carton Folder Gluer Machine 3

Stacking unit



1. Stacking counting is simple and reliable.
2. Digital control, easy and reliable operation, data entry without stopping the machine, and automatic counting.





Electrical device



1 Bearing HRB Some
2 Frequency converter Delta,Taiwan Whole
3 PLC Delta,Taiwan Whole
4 Contactor Schneider France Whole
5 Touch Screen MCGS Whole
6 Remote control Telecrane,Taiwan Whole
7 Counting photoelectric Omron Japan Whole
8 Main Motor Huaxing, shenyang Two Sets



Packaging&Shipping



Corrugated Automatic Carton Folder Gluer Machine 4

Operation instruction of folder gluer machine.pdf
