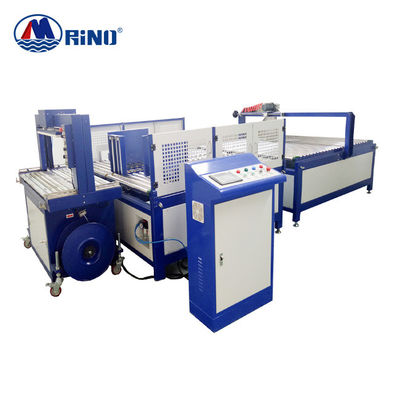

PP Belt Corrugated Box Strapping Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HS-A1600
Payment & Shipping Terms:
Minimum Order Quantity: 10 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Total Weight: 120kgs Strapping Speed: 15 Bundle/min
Air Pressure: 0.5-0.8MPa Effective Width: 650mm
Overall Dimension: 1600*660*1900mm Voltage Supply: 380V /220V
Name: Fully Automatic PP Belt Packing Bundling Strapping Machine For Carton Package Machine Frame Thickness: 1.2-1.5mm
High Light:

PP Belt Corrugated Box Strapping Machine

,

380V Corrugated Box Strapping Machine

Product Description

Fully Automatic PP Belt Packing Bundling Strapping Machine For Carton Package



Specifications of Corrugated Box Strapping Machine



Using the brand strapping technology, it is now designed as a dual-circuit control of the whole machine, which is more stable and reliable than the previous single-circuit control performance. The dual-circuit control reduces the internal load of the machine's electrical board, and the strapping structure runs more smoothly and stably between each circuit. As a manufacturer of balers, we have superior performance, more reliable quality, simpler and more convenient inspection and debugging, and the first to adopt photoelectric control for the retracting clutch. The working principle of this automatic packing machine is to complete packing through tensioning, heat capacity, tape cutting, and bonding. The professional baler factory produces a wide range of applications. No matter the size of the packaging, it can be packed without adjusting the machine. The strapping machine is a mechanical structure, and some of the imported baler parts are used. The rear blade is stable and reliable, easy to adjust, and the baler is reasonably priced.



Specification of Strapping Machine



Model 1600
Dimension (L*W*H): 1600*660*1900mm
Weight 120kgs
Tape width: 5mm(optional)
Power: 1ph,220v,50HZ 600w10A
Strapping speed: 15bundle/min
Arch size(W*H): W650*H500 mm
Strapping tension: 45kg
Height of table: 850mm(Adjustable table bases can be optional)
Effective width of working table: 650mm
Bearing capacity 80kg
Bonding way At the bottom of the adhesive,bonding surface>90%
Air pressure 0.5-0.8MPa





Name Parameter
Total Power (Including Steering Machine,Box Closer,Pressurized) 3KW
Power Supply



Three-phase five-wire AC 380 V (1+10%)50Hz

Steering Machine (L2210 W2050 H1460)
Box Closer (L1880 W2050 H1360)
Baler (L1580 W670 H2000)
Working Ability 12-18pcs/min
Working Environment



Relative humidity less than or equal to 90%,temperature 0-40 degrees Celsius,noise less than or equal to 75 dB(A)



Packing type specification

Width 5-9 mm
  Thickness 0.5-0.6 mm



Tape Size



Ring paper core diameter 200mm-210mm





Outer diameter of belt ring 400-450mm





Ring width 175-190mm

Adhesion method Hot fusion
Bonding mode



Bottom bonding the area more than 90%,the deviation lower than 2mm

Strapping tightness 0-45Kg
Gas Pressure 0.5-0.8MPa
Roller Material Stainless Steel
Roller Diameter 50mm
Frame Thickness 1.2-1.5mm
Convey Speed 0-50m/min

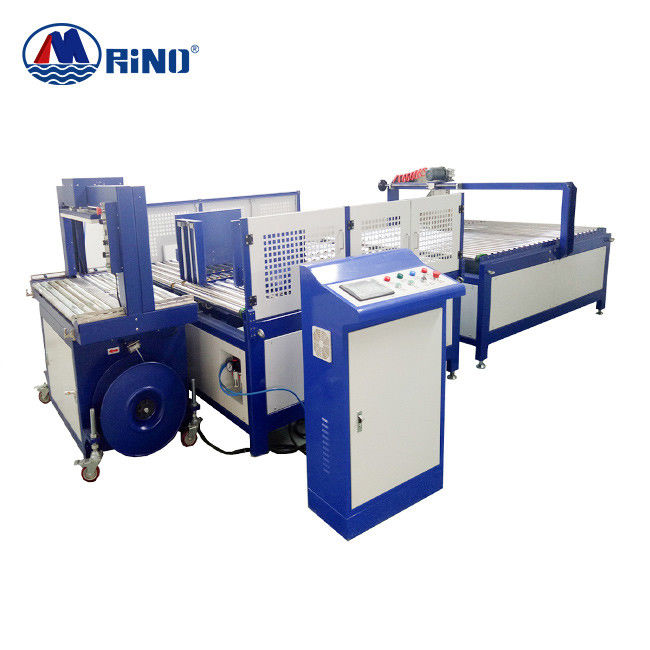

PP Belt Corrugated Box Strapping Machine 0

Factory

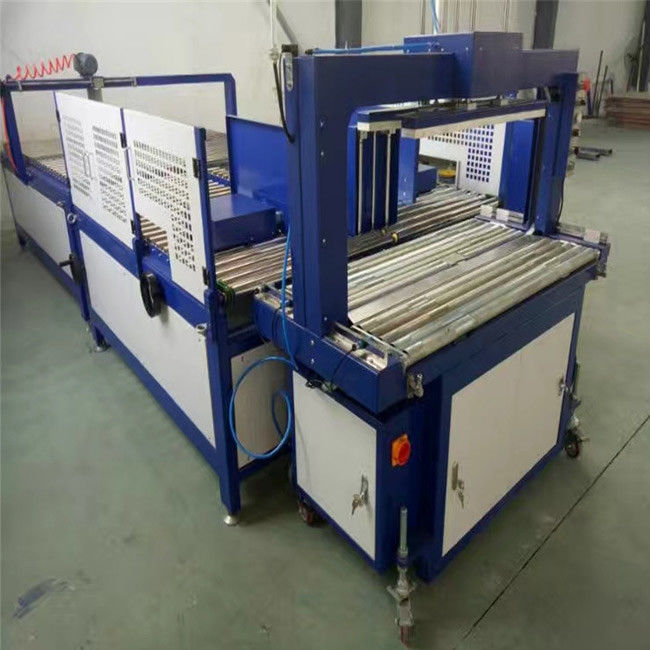

PP Belt Corrugated Box Strapping Machine 1
