Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-PPA650 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Total Power: | 3KW | Speed: | 12-18pcs/min |
|---|---|---|---|
| Roller Diameter: | 50mm | Roller Material: | Stainless Steel |
| Machine Dimension: | L1580 W670 H2000mm | Voltage: | 380 V /50Hz |
| Name: | Automatic High Speed Pressurized Corrugated Box Strapping Machine | Frame Thickness: | 1.2-1.5mm |
| Highlight: | Pressurized Corrugated Box Strapping Machine,18pcs/Min Corrugated Box Strapping Machine,automatic box strapping machine |
||
Product Description

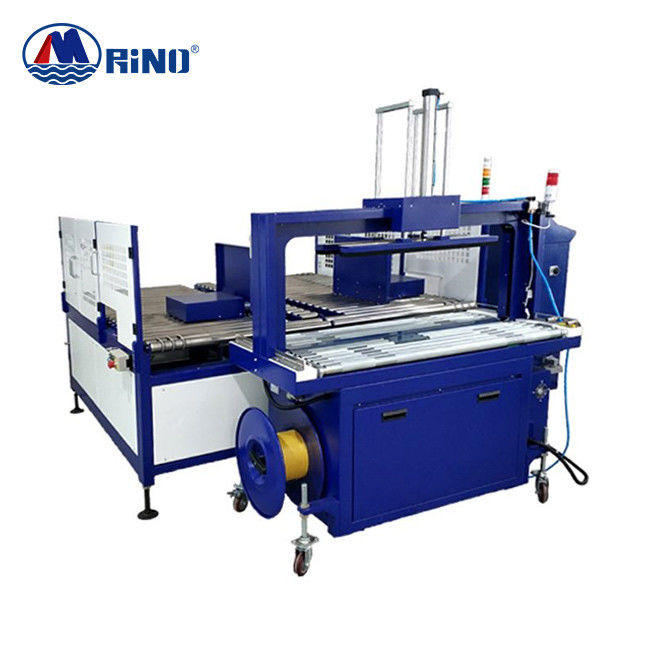

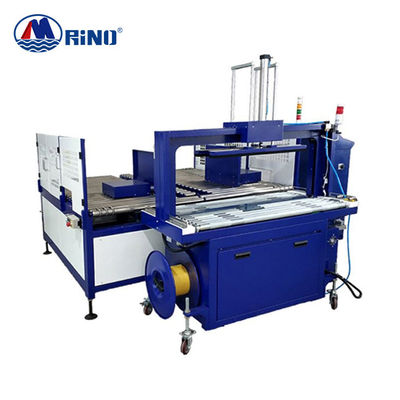

Automatic High Speed Pressurized Corrugated Box Strapping Machine
Specifications of Corrugated Box Strapping Machine
Automatic strapping machine is mainly used in automatic strap after automatic stitching or automatic gluing, the machine includes turning, pat in order, pressurized strapping. Adopt PP strapping tape, firm, no rebound, less damage in paper edge. The whole process automatically finish, without human intervention, can save a lot of artificial cost. It’s first choice of packaging companies to reduce consumption and increase profit, such as printing plant, paper products factory
The machine by turning, taken together, pressurized banding.Using PP strapping, strong, do not rebound, paper edge damage.
Specification of Strapping Machine
| Name | Parameter | |
| Total Power (Including Steering Machine,Box Closer,Pressurized) | 3KW | |
| Power Supply |
Three-phase five-wire AC 380 V (1+10%)50Hz |
|
| Steering Machine | (L2210 W2050 H1460) | |
| Box Closer | (L1880 W2050 H1360) | |
| Baler | (L1580 W670 H2000) | |
| Working Ability | 12-18pcs/min | |
| Working Environment |
Relative humidity less than or equal to 90%,temperature 0-40 degrees Celsius,noise less than or equal to 75 dB(A) |
|
|
Packing type specification |
Width | 5-9 mm |
| Thickness | 0.5-0.6 mm | |
|
Tape Size |
Ring paper core diameter 200mm-210mm |
|
|
Outer diameter of belt ring 400-450mm |
||
|
Ring width 175-190mm |
||
| Adhesion method | Hot fusion | |
| Bonding mode |
Bottom bonding the area more than 90%,the deviation lower than 2mm |
|
| Strapping tightness | 0-45Kg | |
| Gas Pressure | 0.5-0.8MPa | |
| Roller Material | Stainless Steel | |
| Roller Diameter | 50mm | |
| Frame Thickness | 1.2-1.5mm | |
| Convey Speed | 0-50m/min | |

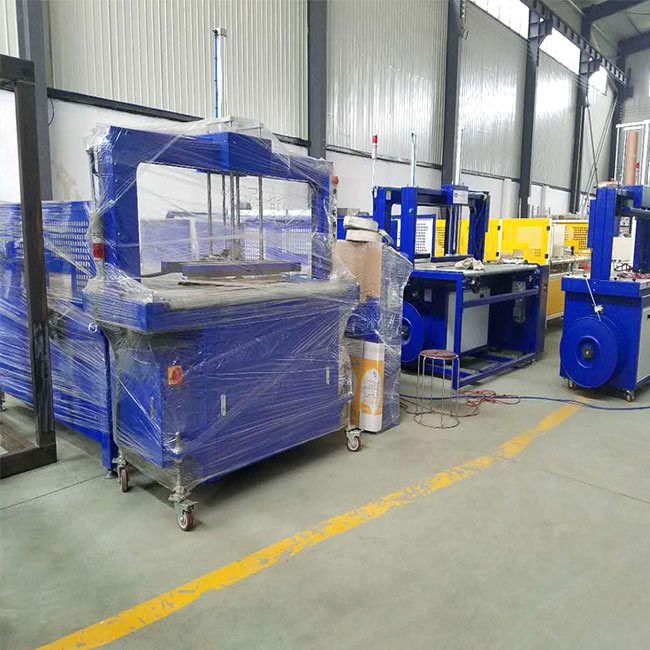

Factory
|
|
