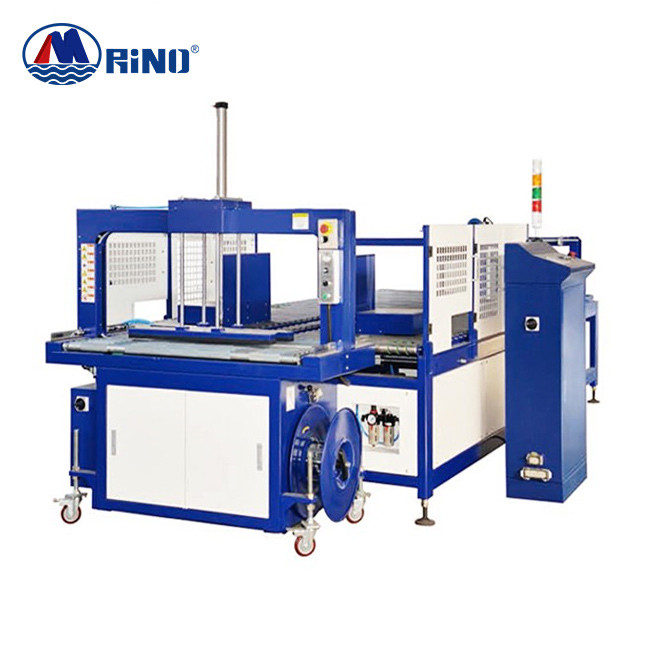

Corrugated Automatic Box Strapping Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HS-A1600
Payment & Shipping Terms:
Minimum Order Quantity: 10 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Weight: 0.12t Machine Speed: 15 Bundle/min
Air Pressure: 0.5-0.8MPa Effective Width Of Table: 650mm
Overall Dimension: 1600*660*1900mm Voltage Supply: 380 V /50Hz
Name: Corrugated Box Automatic Strapping Machine Wrapping Machine For Carton Machine Frame Thickness: 1.2-1.5mm
High Light:

Corrugated Automatic Box Strapping Machine

,

15 bundle/min Automatic Box Strapping Machine

Product Description

Corrugated Box Automatic Strapping Machine Wrapping Machine For Carton



Specifications of Corrugated Box Strapping Machine



Receive board and turn part

1. Smoothly receive cardboard before prior conveying.
2. Double touch type steering, will be 90 degrees of corner cardboard.

Clear up and patting part

1. Can be adjusted according to different specifications carton size.
2. Arrange positioning automatically four direction taken together, and then delivery.

 Delivery part

After finishing send carton smoothly, improve the work efficiency;

Pressure strapping part

1. Pneumatic pressure will be more than one solid board.

2. PP belt automatically, the elastic can be adjusted, paper edge damage light.

3. Automatic adaptation cardboard size.

4. Photoelectric sensing detection strap position.

5. 1~2 Road, the use of knob switch

6. Strapping automatically after delivery.



Specification of Strapping Machine



Model 1600
Dimension (L*W*H): 1600*660*1900mm
Weight 120kgs
Tape width: 5mm(optional)
Power: 1ph,220v,50HZ 600w10A
Strapping speed: 15bundle/min
Arch size(W*H): W650*H500 mm
Strapping tension: 45kg
Height of table: 850mm(Adjustable table bases can be optional)
Effective width of working table: 650mm
Bearing capacity 80kg
Bonding way At the bottom of the adhesive,bonding surface>90%
Air pressure 0.5-0.8MPa





Name Parameter
Total Power (Including Steering Machine,Box Closer,Pressurized) 3KW
Power Supply



Three-phase five-wire AC 380 V (1+10%)50Hz

Steering Machine (L2210 W2050 H1460)
Box Closer (L1880 W2050 H1360)
Baler (L1580 W670 H2000)
Working Ability 12-18pcs/min
Working Environment



Relative humidity less than or equal to 90%,temperature 0-40 degrees Celsius,noise less than or equal to 75 dB(A)



Packing type specification

Width 5-9 mm
  Thickness 0.5-0.6 mm



Tape Size



Ring paper core diameter 200mm-210mm





Outer diameter of belt ring 400-450mm





Ring width 175-190mm

Adhesion method Hot fusion
Bonding mode



Bottom bonding the area more than 90%,the deviation lower than 2mm

Strapping tightness 0-45Kg
Gas Pressure 0.5-0.8MPa
Roller Material Stainless Steel
Roller Diameter 50mm
Frame Thickness 1.2-1.5mm
Convey Speed 0-50m/min

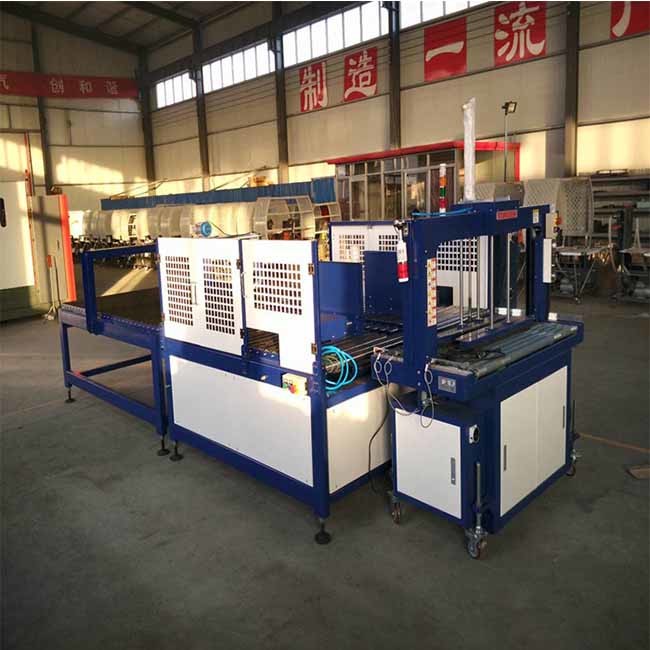

Factory



Corrugated Automatic Box Strapping Machine 0

Corrugated Automatic Box Strapping Machine 1 Corrugated Automatic Box Strapping Machine 2
