Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-PPS850 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Maximum Paperboard Size: | 800×600mm | Width Of Pp Strap: | 9mm/12mm/13mm/13.5mm/15mm |
|---|---|---|---|
| Working Table Hight: | 820mm | Strap Speed: | 2.5seconds/cycle |
| Power: | 0.85KW 50/60HZ | Warranty: | 1 Year |
| Power Supply: | 380V | Name: | Semi Automatic Corrugated PP Strapping Machine For Carton Box |
| High Light: | Semi Automatic Corrugated Box Strapping Machine,800×600mm Corrugated Box Strapping Machine,Corrugated pp box strapping machine |
||
Product Description

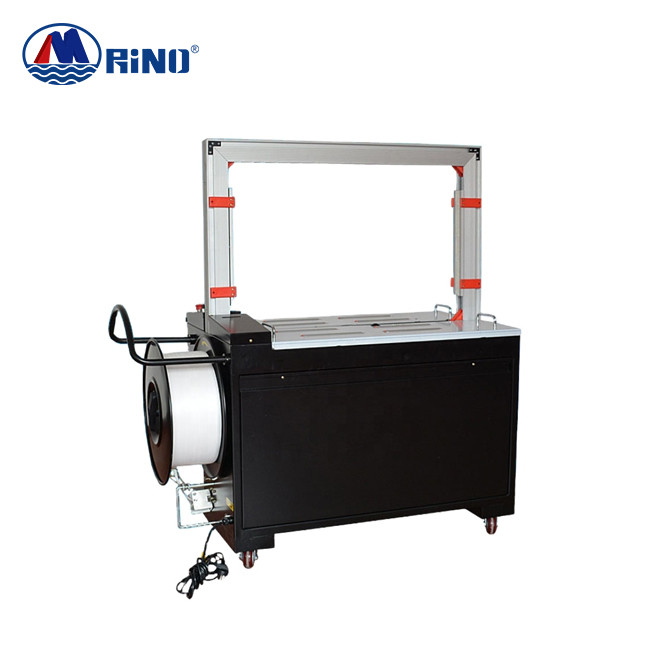

Semi Automatic Corrugated PP Strapping Machine For Carton Box
Specifications of Corrugated Box Strapping Machine
2.Unique design tension,tightening stronger.
3.Clamshell panels,repair warranty.
4.The new electric devices,heating fast,high speed and long use life .
5.Single-chip electronic control,fully functional,easy to operate of the strapping machine.
6.The machine adopts international brand electrical parts which ensure the machines good quality.
7.Electrical accessiores:"LG" PLC control,and"ORMON"photoelectric switch control,Schneider relay.
8.It can be used individually,and equipped with designed conveyor to fulfill unmanned strapping system.
9.Add on a safety device,built for 24 hours continuous operation.
Specification of Strapping Machine
| Model |
HS-PPS850 |
| Electrical | 1PH,380V/220V,50HZ60HZ |
| Power consumption | 850W |
| Warm-up time | 180s |
| Strap width | 8-19mm(fix) |
| PP strap paper coil I.D | 8’’(200mm) |
| Tension adjustment | 0-70kgs |
| Strapping speed | 2.4s/pcs (25pcs/min) |
| Arch | aluminum arch |
| Arch size | W:800×H:600mm |
| Min. strapping size | W:100×H:30mm |
| Max. strapping size | W:850×H:650mm |
| Working table height | 850mm |
| Machine dimension(L×W×H) | 1420×633×1520mm |
| Wooden size (L×W×H) |
Arch assembled 1476×689×1644mm arch disassembled 1476×829×999 |
| Machine weight | 280kgs |
