Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HS-PPS850 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 20 Working Days After Deposit |
Payment Terms: | T/T |
Supply Ability: | 100 Set/Month |
Detail Information |
|||
Maximum Strapping Size: | 850×585mm | Minimum Strapping Size: | 100*30mm |
---|---|---|---|
Workbench Hight: | 814mm | Speed: | 25pcs/min |
Total Power: | 950w | Total Weight: | 280KGS |
Dimension: | 1420×633×1520mm | Voltage Supply: | 220V/380V |
Name: | Semi Automatic Strapping Pack Machine For Box And Carton Corrugated Box | ||
High Light: | 25pcs/min Corrugated Box Strapping Machine,850×585mm Corrugated Box Strapping Machine,Corrugated Strap Machine For Packing |
Product Description

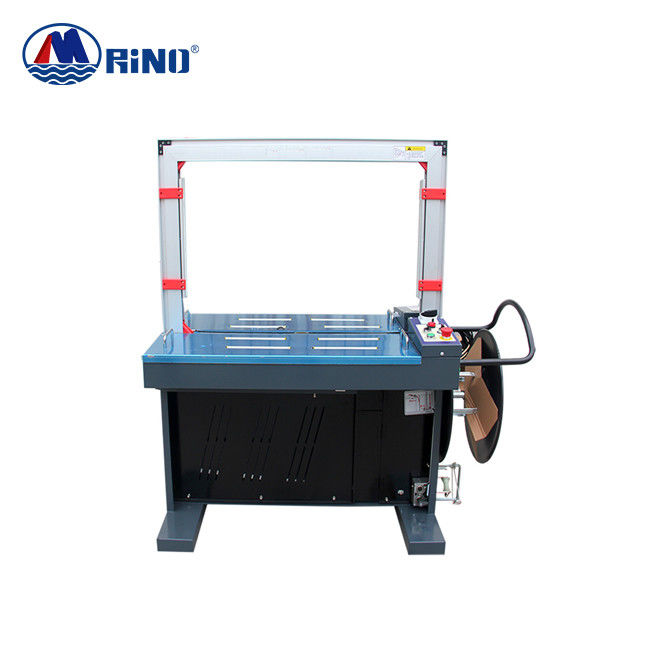

Semi Automatic Strapping Pack Machine For Box And Carton Corrugated Box
Specifications of Corrugated Box Strapping Machine
This machine is suitable for automatic packing and bundling of cardboard boxes,paper and other large or small goods in food , medicine, hardware and other industrial.

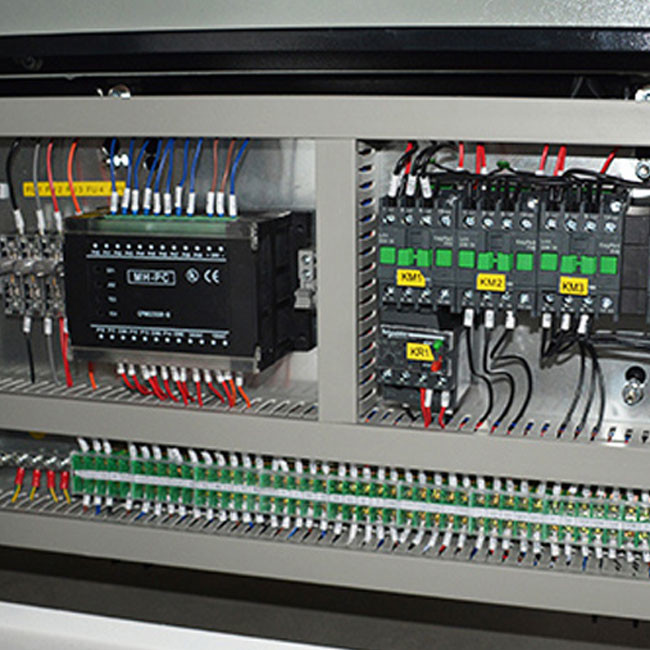

1. Advanced photoelectric control system, no need to manually, automatically put the belt in place.
2. No need to manual operate, the PP tape pops up automatically.
3. Electric control of tightness, more ideal strapping tightness.
4. If the belt is not in place, it will not run empty.
Specification of Strapping Machine
Model |
HS-PPS850 |
Electrical | 1PH,110V/220V,50HZ60HZ |
Power consumption | 950W |
Warm-up time | 180s |
Strap width | 8-19mm(fix) |
PP strap paper coil I.D | 8’’(200mm) |
Tension adjustment | 0-70kgs |
Strapping speed | 2.4s/pcs (25pcs/min) |
Arch | aluminum arch |
Arch size | W:850×H:600mm |
Min. strapping size | W:100×H:30mm |
Max. strapping size | W:850×H:585mm |
Working table height | 814mm |
Machine dimension(L×W×H) | 1420×633×1520mm |
Wooden size (L×W×H) |
Arch assembled 1476×689×1644mm arch disassembled 1476×829×999 |
Machine weight | 280kgs |
