Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GH2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Semi Automatic Gluing Carton Box Folder Gluer Machine Corrugated Board Box Gluer Machine | Voltage: | 220V |
|---|---|---|---|
| Power Supply: | 3.8kw | Hz: | 50 Or 60hz |
| Weight: | 1450kgs | Overall Dimension Size: | 2200x2650x1300mm |
| Max Size Of Cardboard: | 2000x1100mm | Min Size Of Cardboard: | 200x260mm |
| High Light: | 1.45 Tons Semi Automatic Gluing Machine,CE Semi Automatic Gluing Machine,Corrugated board gluing machine |
||
Product Description

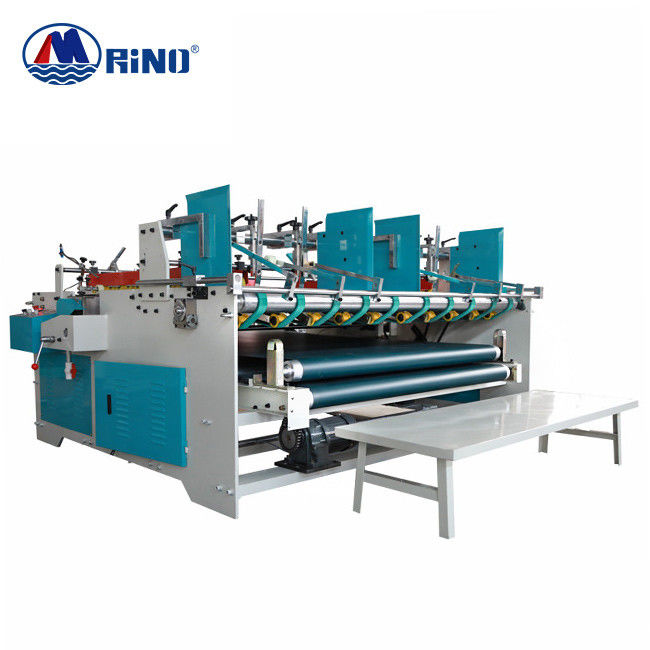

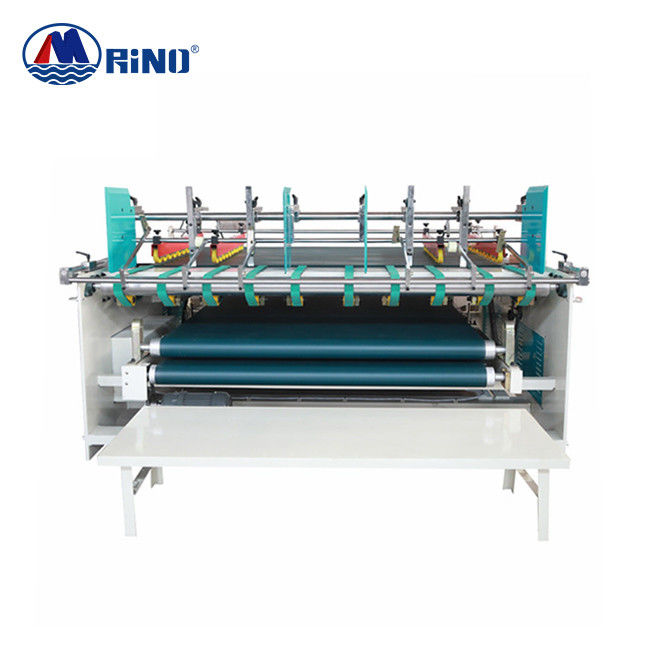

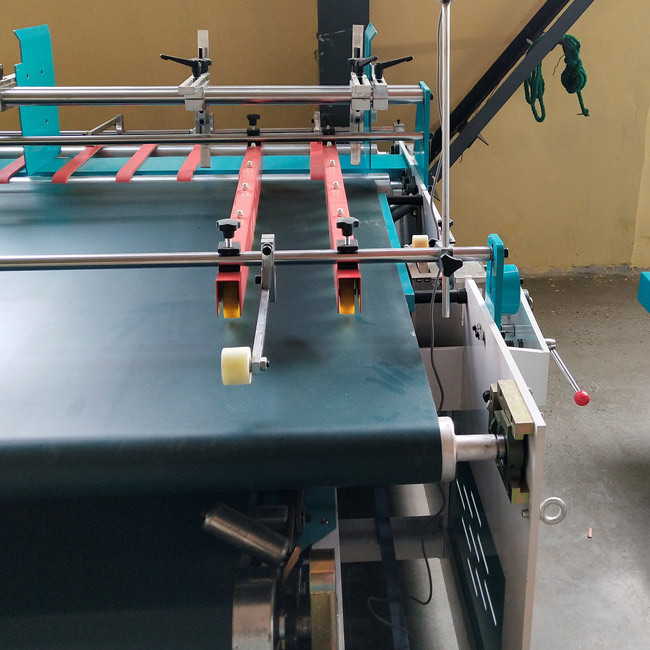

Semi Automatic Gluing Carton Box Folder Gluer Machine Corrugated Board Box Gluer Machine
Carton Box Folder Gluer Machine Introduction
Semi-auto Gluer machine(Combined pressure Model) is the latest exploit. According to the Small order of the user,it has a small Volume and cover an area of small.Easy operation without having experienced, Suitable for transform small batch products,Applicable range is very wide,Ordinary carton,Heterogeneous shape can be glued,Max Mechanical speed is 56m/min ,Effciency is higher 4 times than manual operation;Adhesive is strong, Tidy not leak adhesive, Light membrane of plastic coated of Sticky mouth section can be polished and removed by two-headed burnish implement, lmprove the glue adhesive,Solve the cartons are easy to opening glue problem in some seasons,in this machine , folding carton is manual,lmprove the work efficiency meanwhile correct wrong indetation line.
Parameter Of Carton Box Folder Gluer Machine
| Model |
HF-GH1500 |
HF-GH1800 |
HF-GH2000 |
| Voltage | According customer need | According customer need | According customer need |
| Power | 3.2kw | 3.2kw | 3.8kw |
| Hz | 50/60hz | 50/60hz | 50/60hz |
| Weight | 1.0tons | 1.3tons | 1.45tons |
| Overall size | 2200x1900x1300mm | 2200x2400x1300mm | 2200x2650x1300mm |
| Max size of box | 1500x1100mm | 1800x1100mm | 2000x1100mm |
| Min size of box | 200x260mm | 200x260mm | 200x260mm |
Packaging&Shipping
