Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Folder Gluer Machine | Model: | HF-GA2800 |
|---|---|---|---|
| Maximum Unfolding Size: | 2600×1100mm | Minimum Unfolding Size: | 440×170mm |
| Motor Power: | 12kw | Installation Area: | 15000*4600mm |
| Voltage: | 380V/220V | Usage: | Carton Box Pasting |
| High Light: | RINO Carton Box Folder Gluer Machine,2600×1600mm Carton Box Folder Gluer Machine,12kw corrugated box pasting machine |
||
Product Description

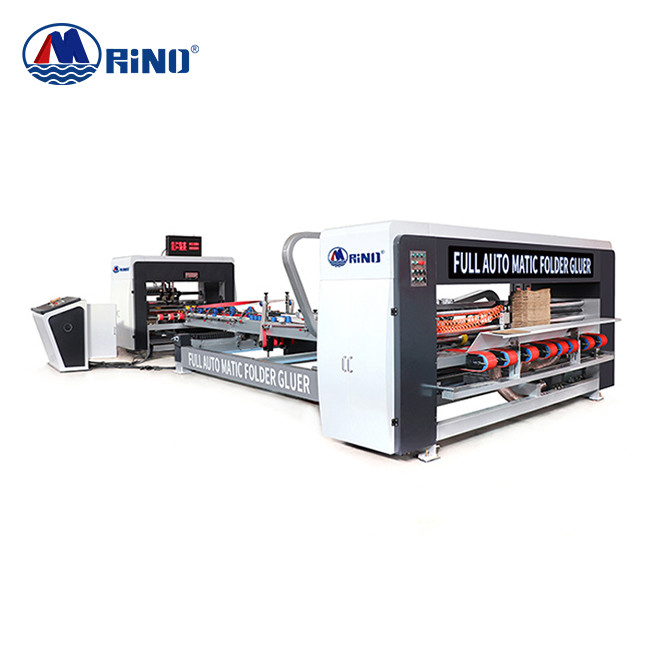

2800 Carton Box Folder Gluer Machine Foding Gluing Machine
Product Introduction of Carton Box Folder Gluer
The automatic box gluer is composed of three parts: a vacuum paper feeding part, a glue folding part and a counting accumulation output part. Digital display control, PLC computer amplitude modulation, simple, fast, reliable and accurate control mode. Automatic paper feeding, automatic glue folding, automatic counting, automatic stacking output, remote control within 100 meters to realize the remote host start and stop, host acceleration and deceleration, fan start and stop, paper feed start and stop, emergency stop, left and right arm adjustment, gluing Box adjustment, the average glue box speed is 150 m/min, high-speed energy saving, and labor cost saving.
Parameter of Carton Box Folder Gluer
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2000 | 440-2400 | 440-2600 | 440-2600 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2600×1600 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Adopt the belt front edge suction and paper feeding method, which is accurate and reliable. 2. Adopt high-end electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be controlled separately, and the operation is simple and reliable.
|
|
|
Paper folding unit
1. The main motor adopts frequency conversion speed regulation system, no noise, flexible and stable speed regulation 2. Imported high-friction belts are used to convey the cardboard, automatically stacked 3. Adopt stainless steel wheel to apply glue, uniform glue quantity, trouble-free and glue saving
|
|
|
Stacking unit
1. Automatic stacking and neat output 2. The main motor of the technical department is frequency-controlled, the speed is adjustable, and the startup is stable and reliable 3. Use belt to transport cartons, stack neatly, speed 0-130m/min 4. Use the flap board to hit the carton, which has the function of correcting deviation, and the deviation is small.
|
Electrical device
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
