Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-LS1100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Semi Automatic Thermal Lamination Laminating Film Machine For Paper | Max. Sheet Size: | 1100mm |
|---|---|---|---|
| Laminating Temperature: | ≤130°C | Suitable Matrial: | PET+EVA |
| Machine Speed: | 30m/min | Main Power: | 25.5kw |
| Machine Weight: | 2200kg | Dimension: | 4000×1900×1600mm |
| High Light: | Paper Film Laminating Machine,1100mm Film Laminating Machine,25.5kw Semi Automatic Thermal Lamination Machine |
||
Product Description

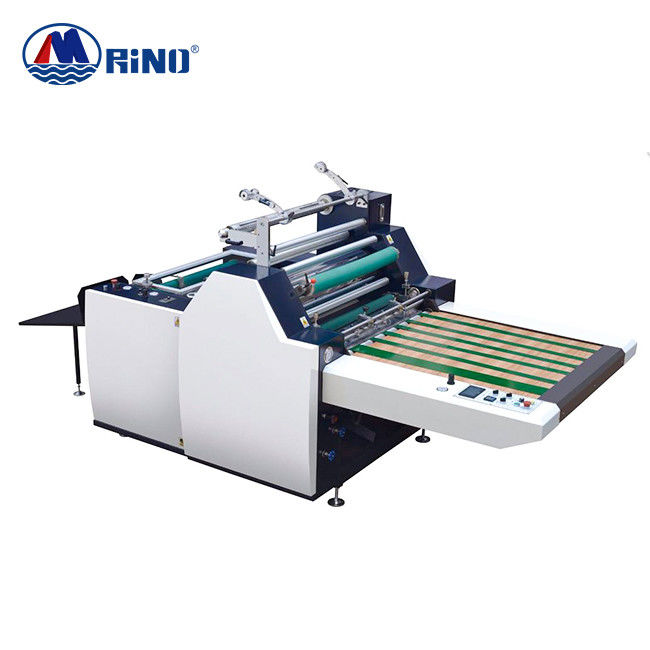

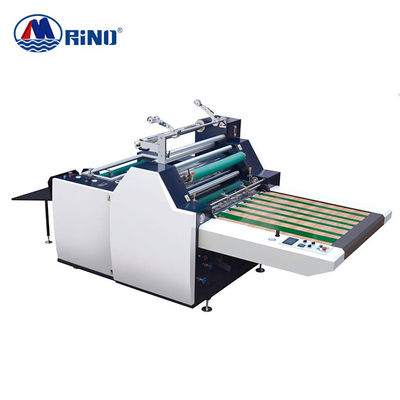

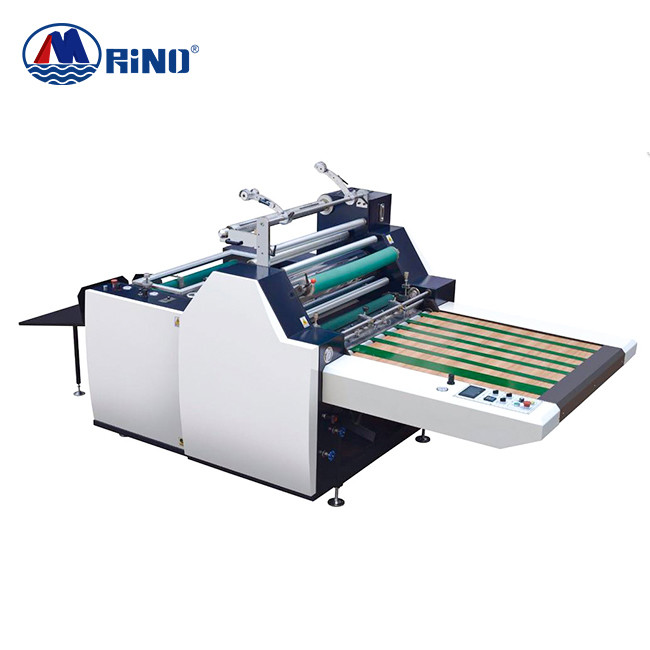

Semi Automatic Thermal Lamination Laminating Film Machine For Paper
Film Laminating Machine Configuration & Functions
Semi-Automatic laminating Machine is suitable for producing business card, greeting card, This machine is very functional. Price is competitive, low investment for the begining of enterpreneurs.
1. Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.
2. One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.
3. Manual paper feeding.
4. Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6. Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
Main Parameter
| Model No. |
HF-LS920 |
HF-LS1100 |
| Max Paper Size | 920mm | 1100mm |
| Laminating Speed | 0-30m/min | 0-30m/min |
| Temperature | ≤130°C | ≤130°C |
| Main Power | 22.5kw | 25.5kw |
| Overall Dimensions | 4000×1700×1600mm | 4000×1900×1600mm |
| Weight | 2000kgs | 2200kgs |

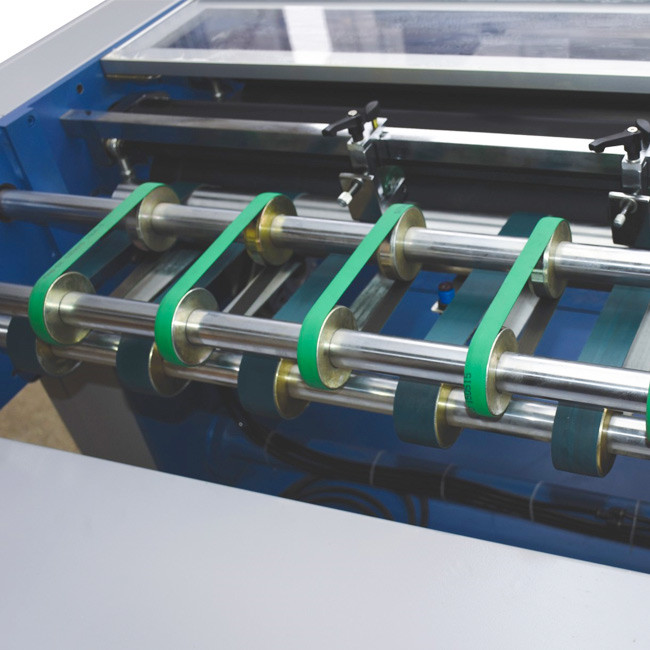

Main Units
Packaging&Shipping
