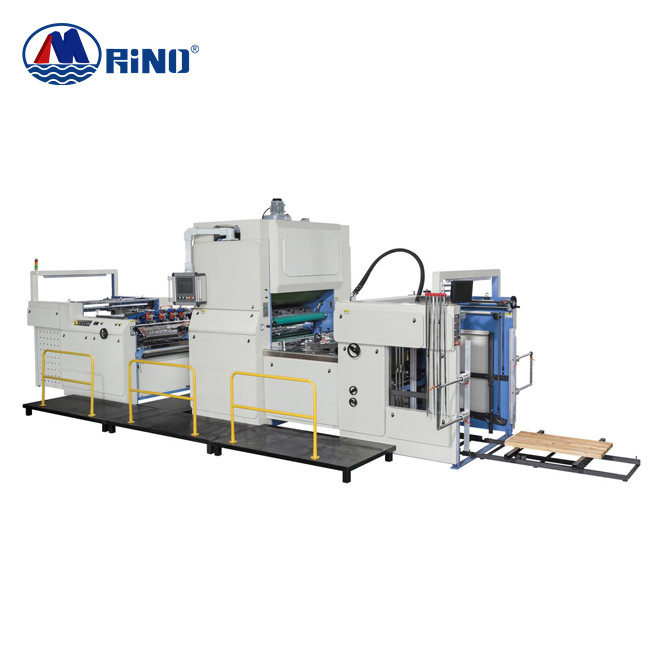

1200*1080mm Film Laminating Machine 88m/Min With Feeder Feeding

Product Description

1100 Automatic Film Laminating Machine Film Laminator With Feeder Feeding

Film Laminating Machine Configuration & Functions

1. Automatic Feeder: Adopts offset feeder with advanced pneumatic side lay, which fastest can feed around 15000 sheet/h. Non-stop and pre-stack feeding can improve work efficiency.

2. Overlapping Regulator: Adopts Servo system to control the overlapping that guarantee accurate and stable, and make sure the overlop error within 2mm.

3. Drying and Heating System: Bulk 800mm diameter drying roll, that could bring the highest glue drying effect, Large heating roll by oil heating and electromagnetic heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

4. Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

5. Two Rows Chain Driving System with Gear box: Special structure design in minimum transmission line , adpots two rows chain with gear box to drive the laminating unit to guarantee the high laminating speed with low noise.

6. Hydraulic Pressure System: The machine adopts hydraulic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

Main Parameter

Main Units

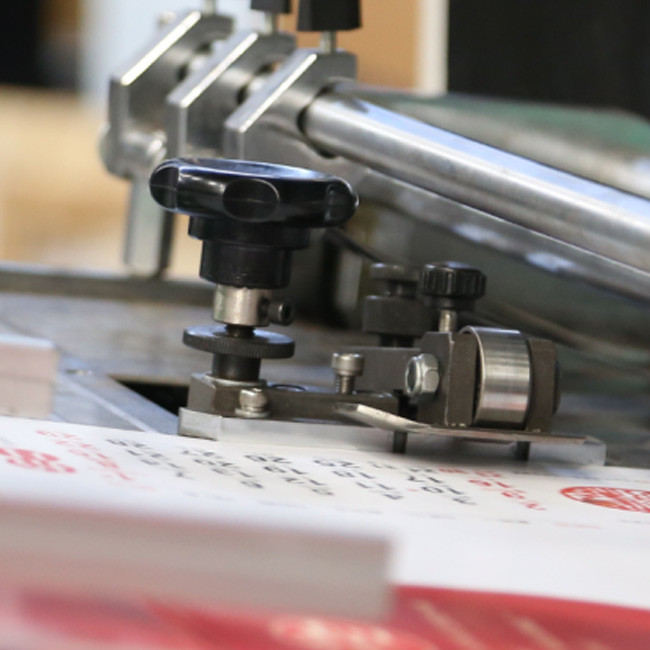

Automatic Feeder   We adopt offset feeder head (max speed 15000sheet/ hour), that makes the sheet feed more stable and smooth. The feeder is non-stop type with pre-stack guide device, which can keep the machine running when run out the paper pile. German Becker vacuum pump guarantee the stable feeding.

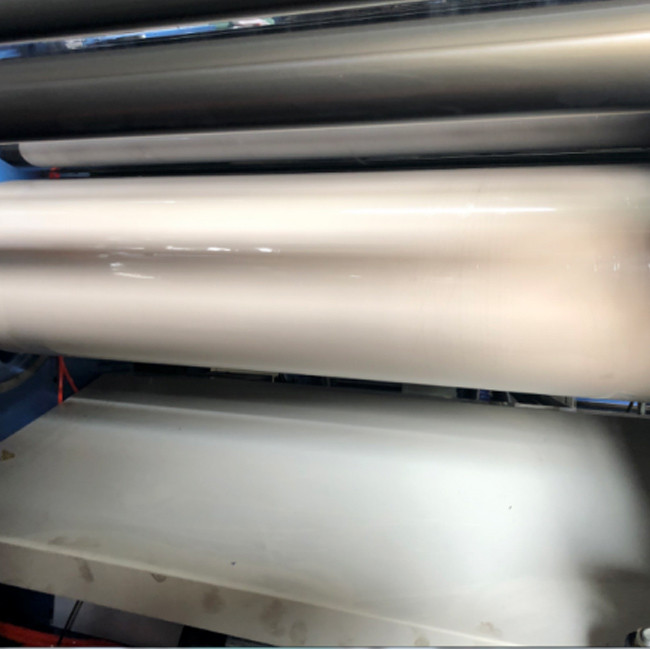

Laminating Unit   Heating roller by electromagnetic heating or oil heating, guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating. Pressure rubber roller controlled by fully penumatic system, the pressure would highly uniform and easy to adjust without bubbles,spots or wrinkle.

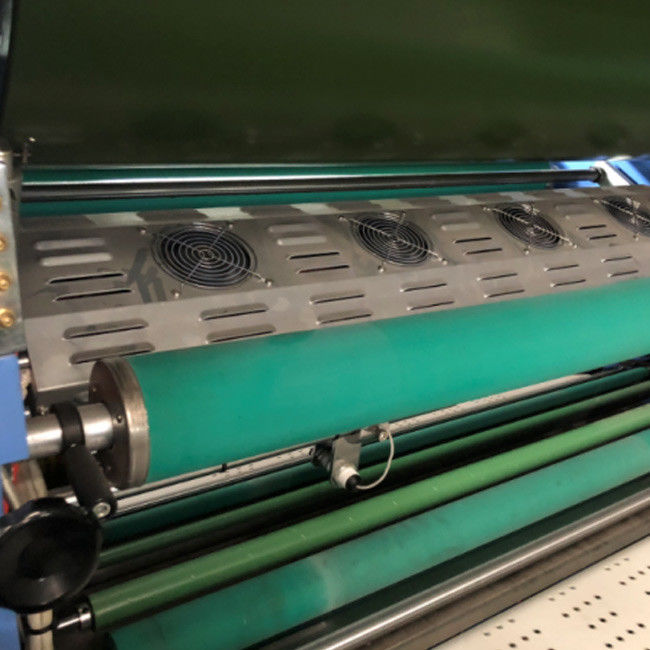

Drying system   Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power comsuption. Blowing fans plus exhaust fan rececle the hot air and energy saving Telfon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain.
