Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-LS920 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 30m/Min Film Laminating Machine , 920mm Lamination Machine Semi Automatic | Max. Sheet Size: | 920mm |
|---|---|---|---|
| Temperature: | ≤130°C | Machine Speed: | 30m/min |
| Main Power: | 22.5kw | Machine Weight: | 2000kg |
| Hardness: | Soft | Overall Dimensions: | 4000×1700×1600mm |
| High Light: | 30m/Min Film Laminating Machine,Pre Coated Film Laminating Machine,720mm pet lamination machine |
||
Product Description

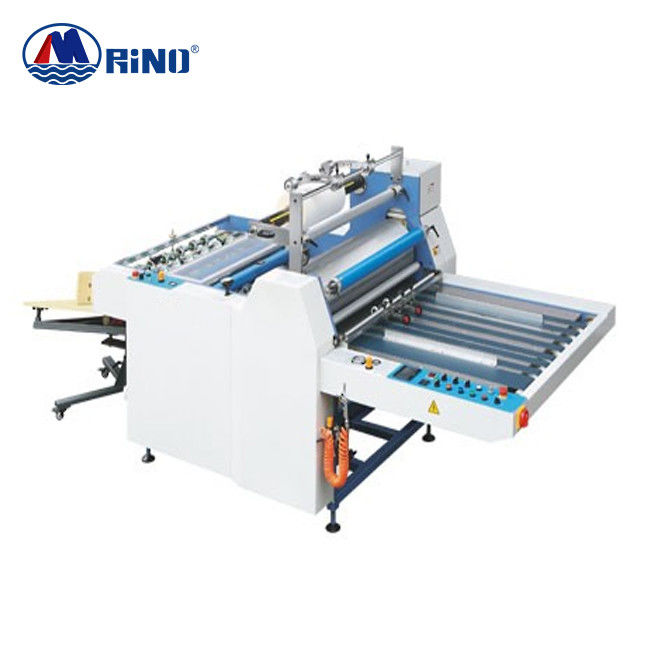

920 PET Thermal Semi Automatic Film Laminating Machine Film Laminator
Film Laminating Machine Configuration & Functions
Suitable for two kinds of film, non-adhesive film film and pre-coated hot film film.
The semi-automatic dry film photoresist laminating machine is a competitive laminating machine with high technical content, high quality and novel appearance, which is carefully designed and manufactured by combining the advanced technology of the international similar products and more than 20 years of manufacturing experience. Compact structure, small space occupation and convenient operation. The main components are all internationally renowned brands. The semi-automatic dry film laminating machine integrates the excellent performance of a variety of semi-automatic laminating machines into an integrated design, and is equipped with a corrugated conveying system, a vibration receiving system, etc., to completely solve the long-standing technical problem, the curling problem of laminated thin paper.
Main Parameter
| Model No. | HF-LS920 | HF-LS1100 |
| Max Paper Size | 920mm | 1100mm |
| Laminating Speed | 0-30m/min | 0-30m/min |
| Temperature | ≤130°C | ≤130°C |
| Main Power | 22.5kw | 25.5kw |
| Overall Dimensions | 4000×1700×1600mm | 4000×1900×1600mm |
| Weight | 2000kgs | 2200kgs |
Main Units
Packaging&Shipping
