Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-FG2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Carton Box Stitcher Machine For Carton Box Folding Gluing Stitching Machine | Sutiable Board: | 3/5 /7ply Corrugated Cardboard |
|---|---|---|---|
| Max. Machine Gluing Speed: | 120-220pcs/min | Machine Weight: | 7000kgs |
| Grade: | Automatic Type | Total Power: | 17KW |
| Overall Dimension: | 3200*15000mm | Stitching Wire Type: | 17#,18# |
| High Light: | 220pcs/Min Automatic Corrugated Box Stitching Machine,17KW Automatic Corrugated Box Stitching Machine |
||
Product Description

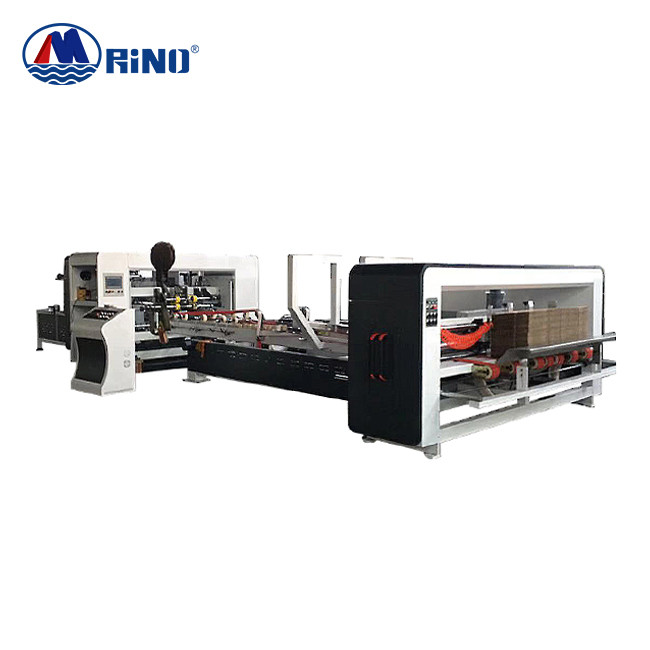

Automatic Carton Box Stitcher Machine For Carton Box Folding Gluing Stitching Machine
Functions and features of Automatic Folder Gluer Stitcher Machine
1. Automatic feeding, automatic glue, automatic folding, automatic calibration, automatic counting, only two people can complete the whole process.
2. The suction belt feeding way, simple structure, fast speed, paper accurately.
3. The nail tooth belt feed, feed accuracy;and it has secondary indentation function, make folding cartons more accurately.
4. With functions of secondary rectification, eliminate the size of the different mouth, reduce rejection rate.
5. With differential correction regulating function, eliminate shear knife and fork, fold more accurate.
Parameter of Automatic Folder Gluer Stitcher Machine
|
Model
|
HS-FG2600 |
HS-FG2800 |
|
Machine size
|
3000*15000 mm
|
3200*15000mm
|
|
Total power
|
17KW
|
17KW
|
|
Max cardboard size
|
1200*2200mm
|
1200*2400mm
|
|
Min stitching size
|
350*800mm
|
350*800mm
|
|
Min gluing size
|
440*170mm
|
440*170mm
|
|
Gluing speed
|
120-220pcs/min
|
120-220pcs/min
|
|
Stitching speed
|
60pcs/min
|
60pcs/min
|
|
Economic stitching speed
|
50pcs/min
|
50pcs/min
|
|
Nail distance
|
50-90mm
|
50-90mm
|
|
Stitching wire
|
17#,18#
|
17#,18#
|

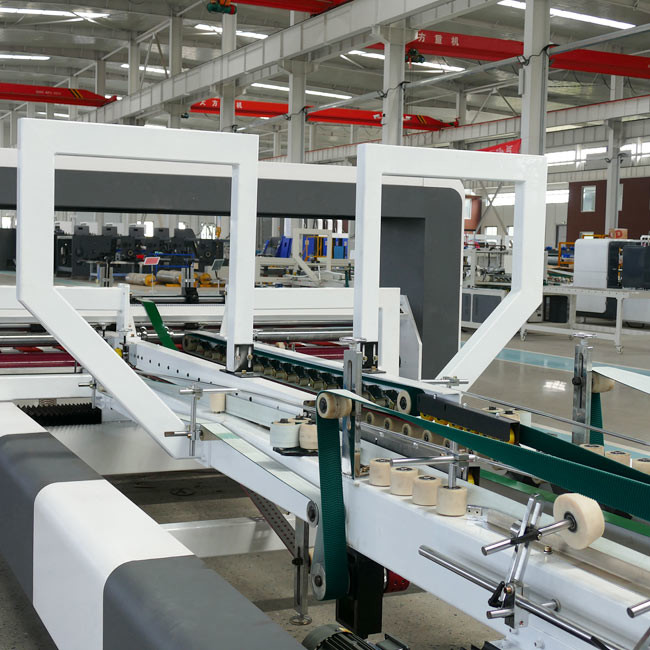

Deails of Folder Gluer Stitcher Machine
|
|
1. The height of the press wheel can be adjusted.Suitable for cardboard thickness of 2-8mm.
2. With the folding section linkage, frequency conversion speed regulation.
3. The front baffle of the paper feeding department and the paper belt are adjustable.
|
|
|
1. Gluing department adopt high quality stainless steel gluing wheel.
|
Packaging&Shipping
