Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-FG2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Folder Gluer Stitcher Carton Box Gluing And Folding Machine | Sutiable Material: | 3/5 /7ply Corrugated Cardboard |
|---|---|---|---|
| Machine Speed: | 200-300 M /min | Total Weight: | 7000kgs |
| Grade: | Automatic Type | Total Power: | 17KW |
| Machine Size: | 3200*15000mm | Stitching Wire: | 17#,18# |
| High Light: | 17KW Automatic Folder Gluer Stitcher Machine,RINO Automatic Folder Gluer Stitcher Machine,7ply Carton Folding Gluing Machine |
||
Product Description

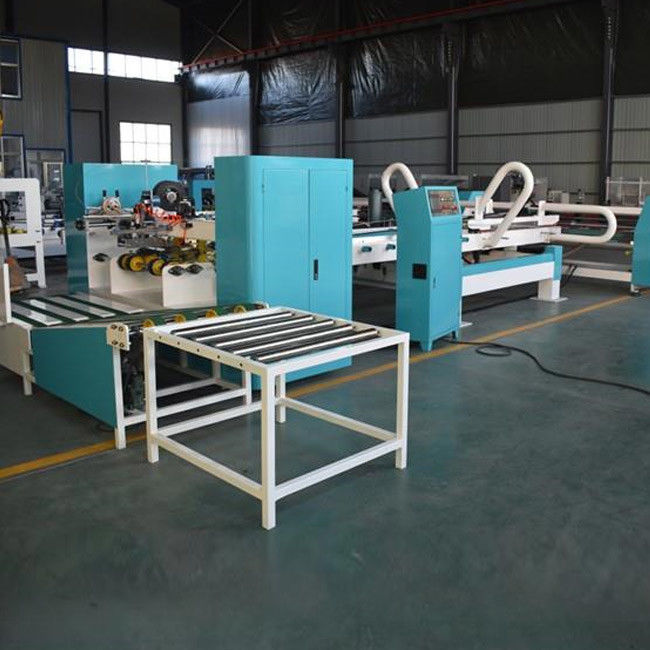

Automatic Folder Gluer Stitcher Carton Box Gluing And Folding Machine
Functions and features of Automatic Folder Gluer Stitcher Machine
This machine is composed of a vacuum paper feeding part and a stitching part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, the control method is simple, fast, reliable and accurate, automatic paper feeding, automatic sewing and folding, automatic counting, automatic stacking output, high-speed energy-saving, and labor cost saving.
Parameter of Automatic Folder Gluer Stitcher Machine
|
Model
|
HS-FG2600 |
HS-FG2800 |
|
Machine size
|
3000*15000 mm
|
3200*15000mm
|
|
Total power
|
17KW
|
17KW
|
|
Max cardboard size
|
1200*2200mm
|
1200*2400mm
|
|
Min stitching size
|
350*800mm
|
350*800mm
|
|
Min gluing size
|
440*170mm
|
440*170mm
|
|
Gluing speed
|
120-220pcs/min
|
120-220pcs/min
|
|
Stitching speed
|
60pcs/min
|
60pcs/min
|
|
Economic stitching speed
|
50pcs/min
|
50pcs/min
|
|
Nail distance
|
50-90mm
|
50-90mm
|
|
Stitching wire
|
17#,18#
|
17#,18#
|
Deails of Folder Gluer Stitcher Machine
|
|
1. The height of the press wheel can be adjusted.Suitable for cardboard thickness of 2-8mm.
2. With the folding section linkage, frequency conversion speed regulation.
3. The front baffle of the paper feeding department and the paper belt are adjustable.
|
|
|
1. Gluing department adopt high quality stainless steel gluing wheel. |
