Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-FG2600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Corrugated Carton Stitching Folding Gluing Machine Box Cardboard Glue | Sutiable Board: | 3/5 /7ply Corrugated Cardboard |
|---|---|---|---|
| Maximum Machine Gluing Speed: | 120-220pcs/min | Machine Weight: | 7MT |
| Grade: | Automatic Type | Total Power: | 17KW |
| Overall Dimension: | 12800×3050x2250mm | Stitching Wire Type: | 17#,18# |
| Highlight: | Stitching Folding Carton Gluing Machine,Touch Screen Folding Carton Gluing Machine |
||
Product Description

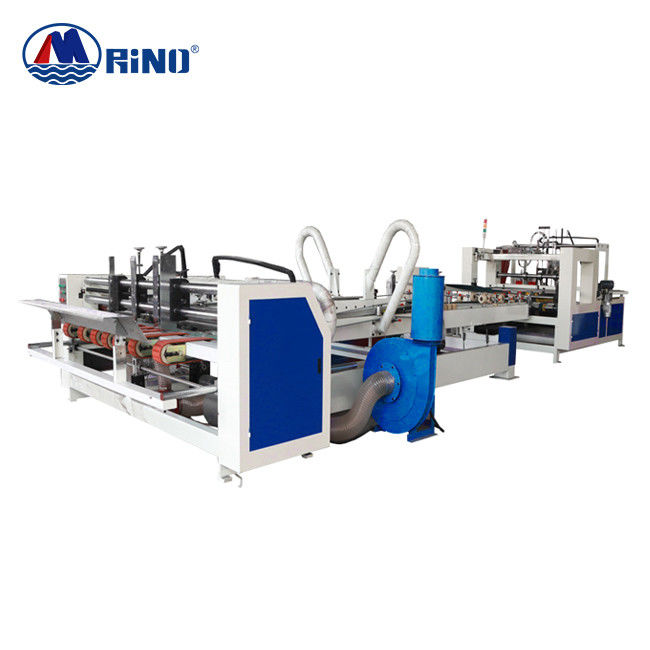

Automatic Corrugated Carton Stitching Folding Gluing Machine Box Cardboard Glue
Functions and features of Automatic Folder Gluer Stitcher Machine
Simple touch screen operation, the machine adopts PLC input computer programmable controller, digital operation, touch screen input data, which can realize non-pole change data, production speed and so on, It has the order memory storage function,the baffle of the feeding part, the position board will be adjusted in place by one key, the adjustment is simple and fast;The automatic feeding, automatic folding forming , automatic counting, automatic stacking output.
Parameter of Automatic Folder Gluer Stitcher Machine
|
Model
|
HS-FG2600 |
HS-FG2800 |
|
Machine size
|
3000*15000 mm
|
3200*15000mm
|
|
Total power
|
17KW
|
17KW
|
|
Max cardboard size
|
1200*2200mm
|
1200*2400mm
|
|
Min stitching size
|
350*800mm
|
350*800mm
|
|
Min gluing size
|
440*170mm
|
440*170mm
|
|
Gluing speed
|
120-220pcs/min
|
120-220pcs/min
|
|
Stitching speed
|
60pcs/min
|
60pcs/min
|
|
Economic stitching speed
|
50pcs/min
|
50pcs/min
|
|
Nail distance
|
50-90mm
|
50-90mm
|
|
Stitching wire
|
17#,18#
|
17#,18#
|
Deails of Folder Gluer Stitcher Machine
|
|

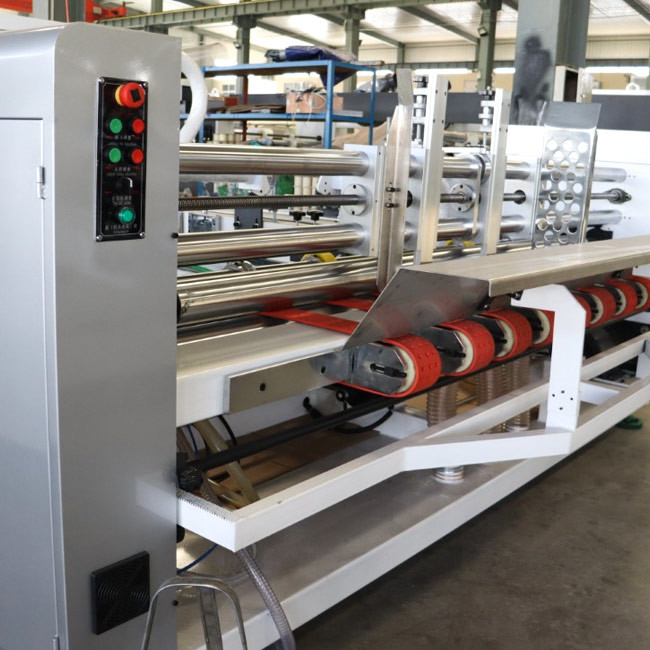

Board height adjustment structure is made of high-quality steel, and the box height and board length of different specifications and sizes can be adjusted quickly.
|
|
|
The folding forming department adopts seamless butt ring belt made of imported special materials with high friction and abrasion resistance to complete the automatic folding forming of cardboard accurately.
|
