Product Description

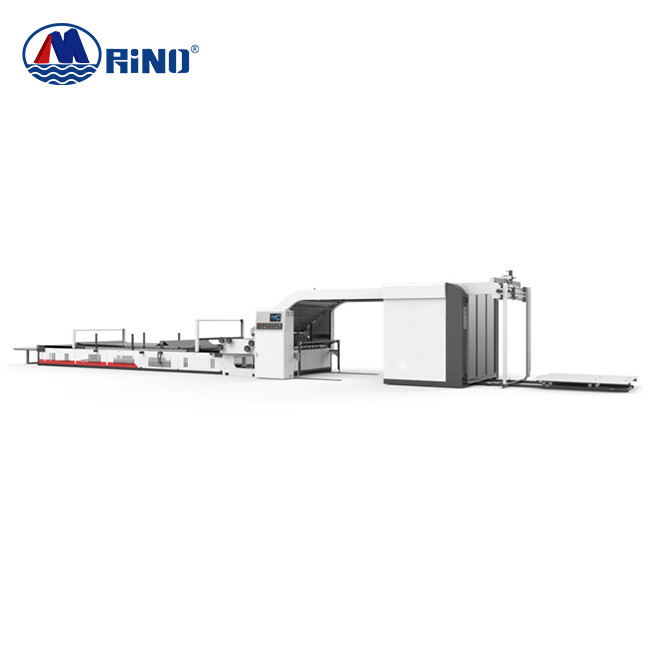

Model 1450 Automatic High Speed Flute Laminating Machine For Corrugated Board

Flute Laminatng Machine Introduction

1. The most high-end electrical control system, computerized high-speed lamination, up to 13,000 sheets per hour
2. The upper paper feeder adopts high-speed paper feeder to ensure accurate paper feeding under the condition of high-speed paper feeding
3. Bottom paper feeding: The bottom paper conveying structure of the suction belt is driven by a servo motor to make the conveying distance of the bottom paper precise and smooth
4. High-precision coating and conveying with automatic page control of paper and gluing wheel side gluing mechanism, high-speed operation without glue overflow, and adjustable glue return
5. Use multiple sets of photoelectric sensor and the bottom line to advance the relative position, so that the servo motors on both sides of the face paper are driven independently to compensate for the upper and lower paper alignment, which is accurate and smooth

Main Parameter



Main Units


Top paper feeding unit   This machine adopts German BECKER air pump and a high-speed feeder head paper feeding mechanism. The feeder head is fixed on the linear guide, (other companies are fixed on two iron rods). Input paper size then automatically in place to ensure high-speed feeding. High-speed and accurate delivery of the face paper .

Bottom paper feeding unit   The bottom paper feeding adopts a widened and elongated bottom paper feeding belt, which is stable in paper feeding with Yaskawa servo control system, and the paper is fed with stability and precision with high-power suction fan. Each belt is tightened separately, (others have been changed to overall tightening in order to reduce costs).
