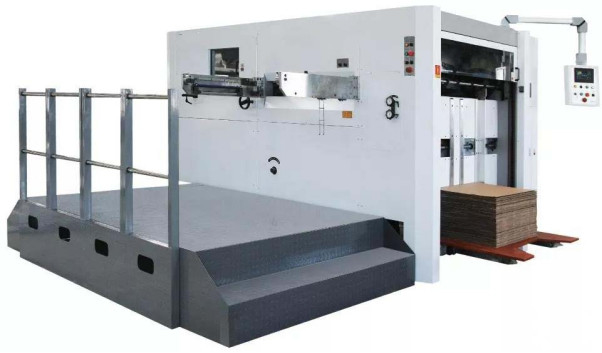

17.8T Cardboard Die Cutting Machine 17KW Semi Automatic

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-S1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 17.8T Die Cutting Machine For Cardboard 17KW Semi Automatic Max Feeding Cardboard Size: 1510×1120mm
Min Feeding Cardboard Size: 400×400mm Max Die Cutting Size: 1500×1100mm
Max Die Cutting Pressure: 350T Die Cutting Precision: ±0.5mm
Cardboard Thickness: Corrugated Board Thickness ≤9mm (max. Thickness) Max Die Cutting Speed: 4500 Sheets/h
High Light:

Cardboard Die Cutting Machine Semi Automatic


17KW Cardboard Die Cutting Machine


Semi Automatic Cardboard Box Die Cutting Machine

Product Description

17.8T Die Cutting Machine For Cardboard 17KW Semi Automatic


Product Description Of Carton Box Die Cutting Machine


Die-cutting and creasing machine is a special equipment for die-cutting of high-end color boxes and color boxes, developed by our company combining the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Manual turning is convenient and labor-saving.


Parameter of Carton Box Die Cutting Machine


Model HD-S1500
Max feeding cardboard size 1510×1120mm
Min feeding cardboard size 400×400mm
Max die cutting size 1500×1100mm
Max die cutting pressure 350T
Die cutting precision ±0.5mm
Cardboard thickness Corrugated board thickness ≤9mm (max. thickness)
Max die cutting speed 4500 sheets/h
Weight 17.8T
Total power 17KW
Dimension 6300×4500×2500mm



Main Units


Die Cutting unit


17.8T Cardboard Die Cutting Machine 17KW Semi Automatic 017.8T Cardboard Die Cutting Machine 17KW Semi Automatic 1



The die-cutting plate adopts four-claw nut fastening type installation to ensure that the large-format die-cutting plate is always flat, and is equipped with a pneumatic plate locking device, which effectively reduces the preparation time for plate change.

The steel plate adopts quenched manganese alloy steel material, which has an extremely long life. The steel plate pneumatic suspension device can be easily loaded and unloaded.

The die-cutting pressure is adjusted by four points, which can be adjusted easily by turning the handle, or can be adjusted individually.


17.8T Cardboard Die Cutting Machine 17KW Semi Automatic 217.8T Cardboard Die Cutting Machine 17KW Semi Automatic 3


Paper positioning and conveying unit


The unique upper and lower front gauges cooperate with the gripper mechanism to ensure the smooth transmission of warped paper and the accuracy of die cutting.
The front rule has a left and right gripper fine-tuning device, and the rule can be aligned by simply turning the handwheel.
Warped paper conveying correction device.
The tooth row adopts aluminum-magnesium alloy profile, which has high strength and does not deform. All screws and nuts of the tooth row adopt standard anti-loosening screws and nuts.
Imported conveyor chain, high-strength oil-containing nylon chain guide plate and drip lubrication device, high speed and low noise.


17.8T Cardboard Die Cutting Machine 17KW Semi Automatic 417.8T Cardboard Die Cutting Machine 17KW Semi Automatic 5


Paper feeding and receiving unit


Pre-coded paper, pneumatic side gauges, and non-wheel-type paper loading planks can minimize the paper change time and improve the efficiency of mechanical production.
Imported through-beam photoelectric, control the height of the paper stack, regardless of the warped paper and flat paper can automatically control the best paper feeding position, easy and continuous paper feeding, up to 4500 sheets/hour.
Linear bearings are used for paper delivery and arranging, with simple structure and neat paper delivery.


Documents when delivery

Operational instruction (English language)/Certificate(if needed) /Packing list

Installation and training
If required by the buyer, the seller can offer on site installation and training. In principle, the cost for our engineer go abroad for installation and training, which include visa, round tickets, accommodation, 100 USD/ per day allowance should be undertaken by the buyer.
Warranty and after sale service
The warranty of all our equipment is one year. During this warranty, it is free to replace the spare parts. Warranty expires ,it only charges the cost of the spare parts.
Packing (Plastic film wrapped with iron wire fixed in the container)


17.8T Cardboard Die Cutting Machine 17KW Semi Automatic 6
