NC Thin Blade Slitter Scorer

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HT-NC1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 30 Set/Month
  • Detail Information
  • Product Description

Detail Information

Product Model: HT-NC1600 Number Of Blade: Blades Can Be Customized According To Customer Needs
Maximum Paper Slitting Length: 1600mm Machine Design Speed: 200m/min
Working Speed: 160m/min Order Change Time: 3-8s
Order Change Accuracy: ±0.5mm Name: NC Thin Blade Slitter Scorer For Corrugated Cardboard Production Line
High Light:

NC Thin Blade Slitter Scorer


200m/min Thin Blade Slitter Scorer

Product Description

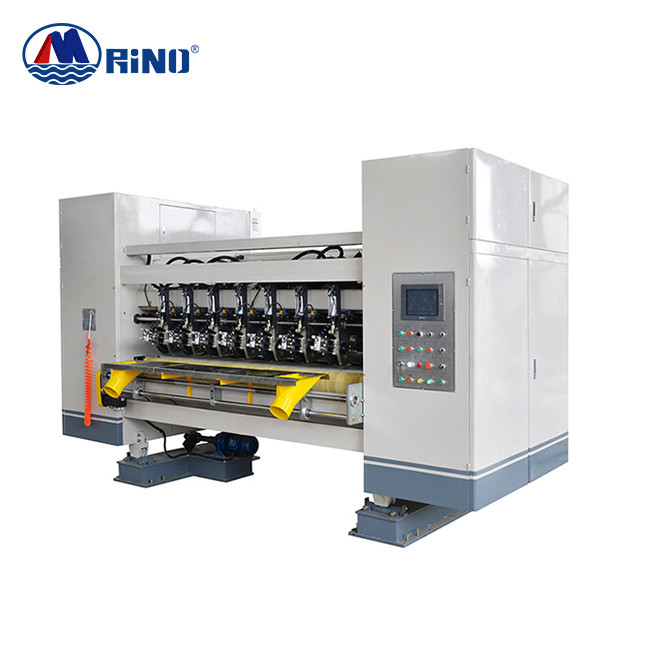

 NC Thin Blade Slitter Scorer For Corrugated Cardboard Production Line


Thin Blade Slitter Scorer Machine Introduction


1. Synchronous servo motor controls the knife and wire arrangement. Automatic reset. The size is accurate, the order change time is 3-8 seconds, a single machine can store 999 orders, and the two machines will not slow down immediately, which can realize automatic or manual order change without stopping the machine.

2. Schneider M258PLC control system adopts CANopen line system, has order management function, and synchronous signal input with dryer speed.

3. The HMI uses a 10.4-inch color touch screen to store 999 orders, change orders automatically or manually, and alarm for failures.

4. Three types of pressure lines: convex to concave (three-layer line), convex to concave (five-layer line), convex to flat, three voltage lines 5. Thin tungsten alloy steel knife, sharp blade, life over 8 million Meter.

6. The knife sharpener is computer-controlled, automatic or manual knife sharpener, which can be divided into sharpening to improve production efficiency.

7. Imported synchronous drive system with accurate accuracy, long life and low operating noise.


Parameter of Thin Blade Slitter Scorer Machine

Width 1600-2500mm
Design Speed 200m/min
Working Speed 160m/min
Order change time 3-8s
Order change precision ±0.5mm
Knife & score 5 slitting knives ,8 score lines
Min.Slitting width 310mm

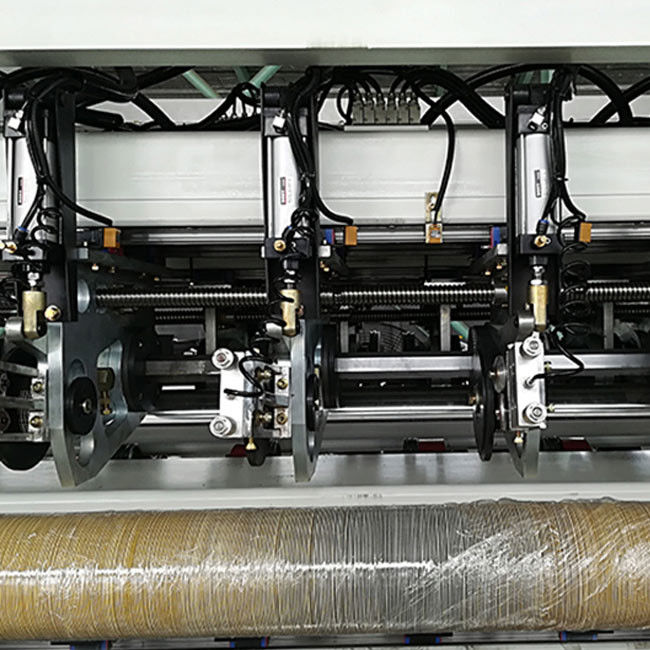

NC Thin Blade Slitter Scorer 0

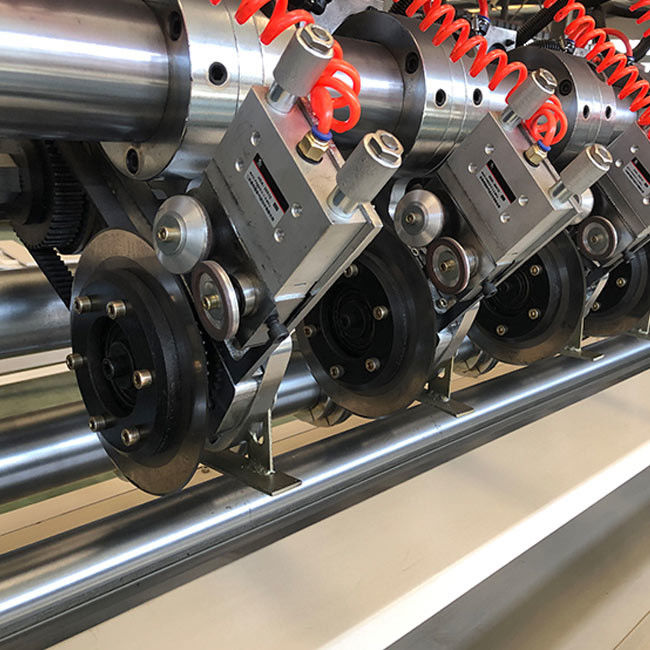

NC Thin Blade Slitter Scorer 1
