Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | SF280 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Name: | Corrugator Cardboard Making Machine Carton Machine Cardboard Single Facer | Maximum Speed: | 100m/min |
---|---|---|---|
Working Speed: | 80m/min | Maximum Working Paper Suitable Width: | 1600mm |
Steam Heating Temperature: | 160—210 Centigrade | Total Power: | 220V, 50Hz |
Diameter Of Press Roller: | 320mm | Diameter Of Corrugated Roller: | 280mm |
Highlight: | 100m/Min Corrugated Cardboard Single Facer,220V Corrugated Cardboard Single Facer |
Product Description

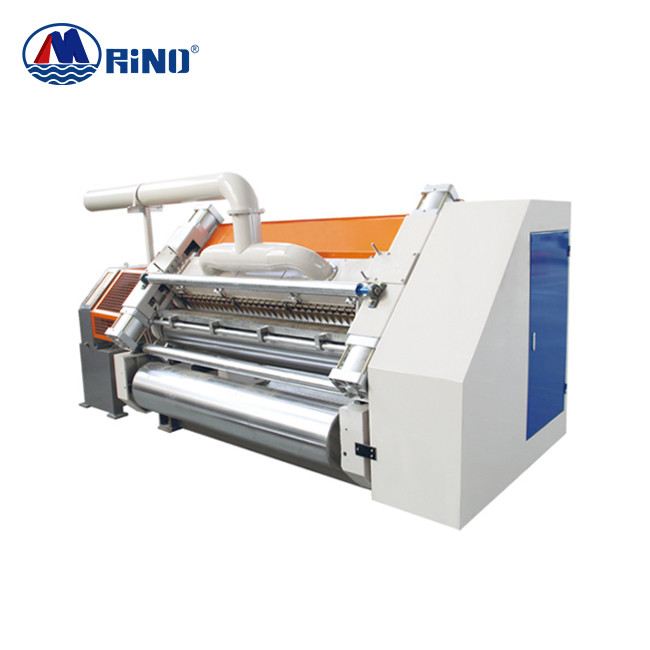

Corrugator Cardboard Making Machine Carton Machine Cardboard Single Facer
Introduction of Single Facer Corrugated Machine
* The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.
* The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
* The glue roller surface is treated with special mesh nicking and chrome-plating.
* Upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62. The surface is grinded and chrome plated.
Single Facer Corrugated Machine Parameter
Max. machine speed | 100m/min |
Economic speed | 80m/min |
Max. working width | 1600mm |
Steam temperature | 160—210 centigrade |
Power requirements: | 220V, 50Hz |
Diameter of corrugated roller | 280mm |
Diameter of Press roller . | 320mm |
Diameter of preheater roller | 300mm |
Diameter of Glue roller | 215mm |
Diameter of doctor roller | 105mm |

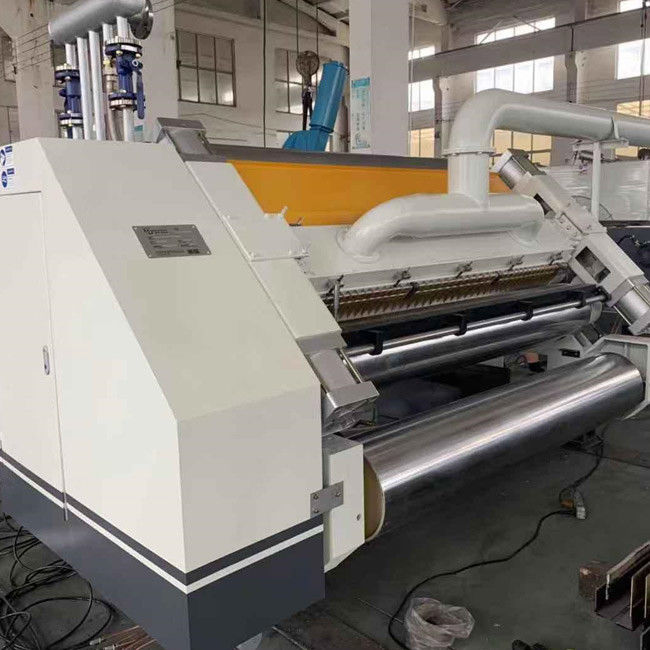

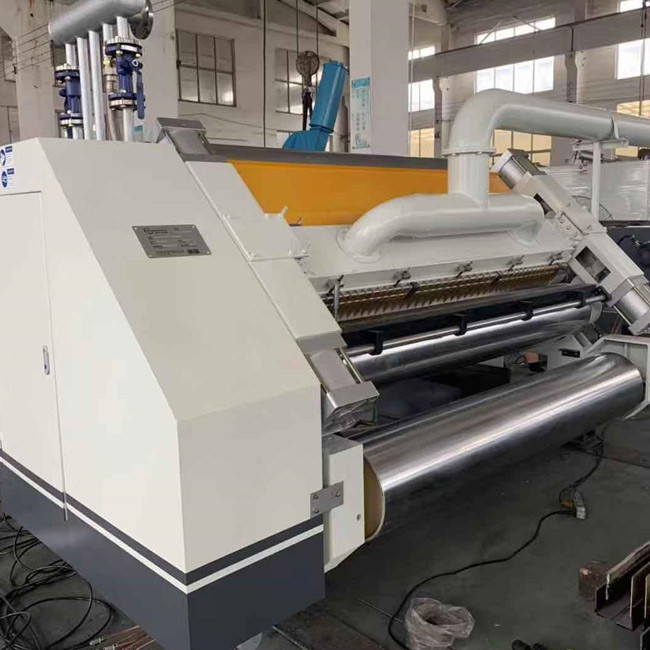

Machine Details
1. The paper guide mode using wind adsorption,ensure the paper feeding stable
2. By the fan through the corrugated paper adsorption chamber in the corrugated roller form a negative
pressure zone 180 degrees scope, to complete the corrugated rolling
3. The corrugated roller suction slot width is less than 2mm
4. Gear box transmission
5. Using automatic cycle for rubber, pneumatic glue and reset
6. The up and down corrugated roller adopt 48crmo.
7. Flute type: Depend on customer.
