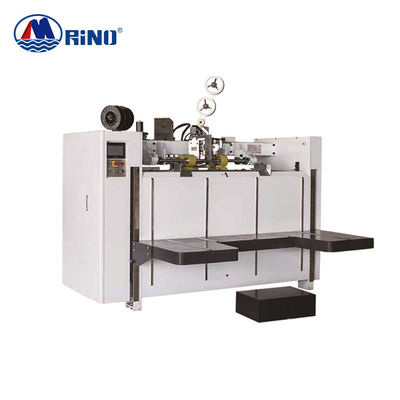

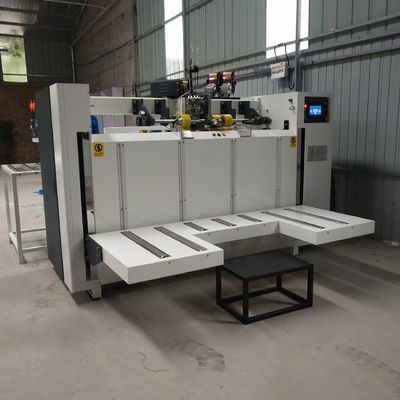

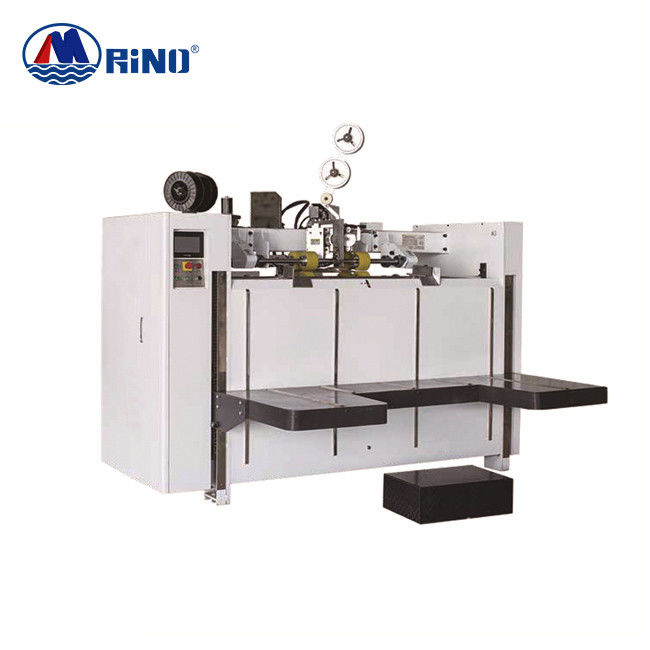

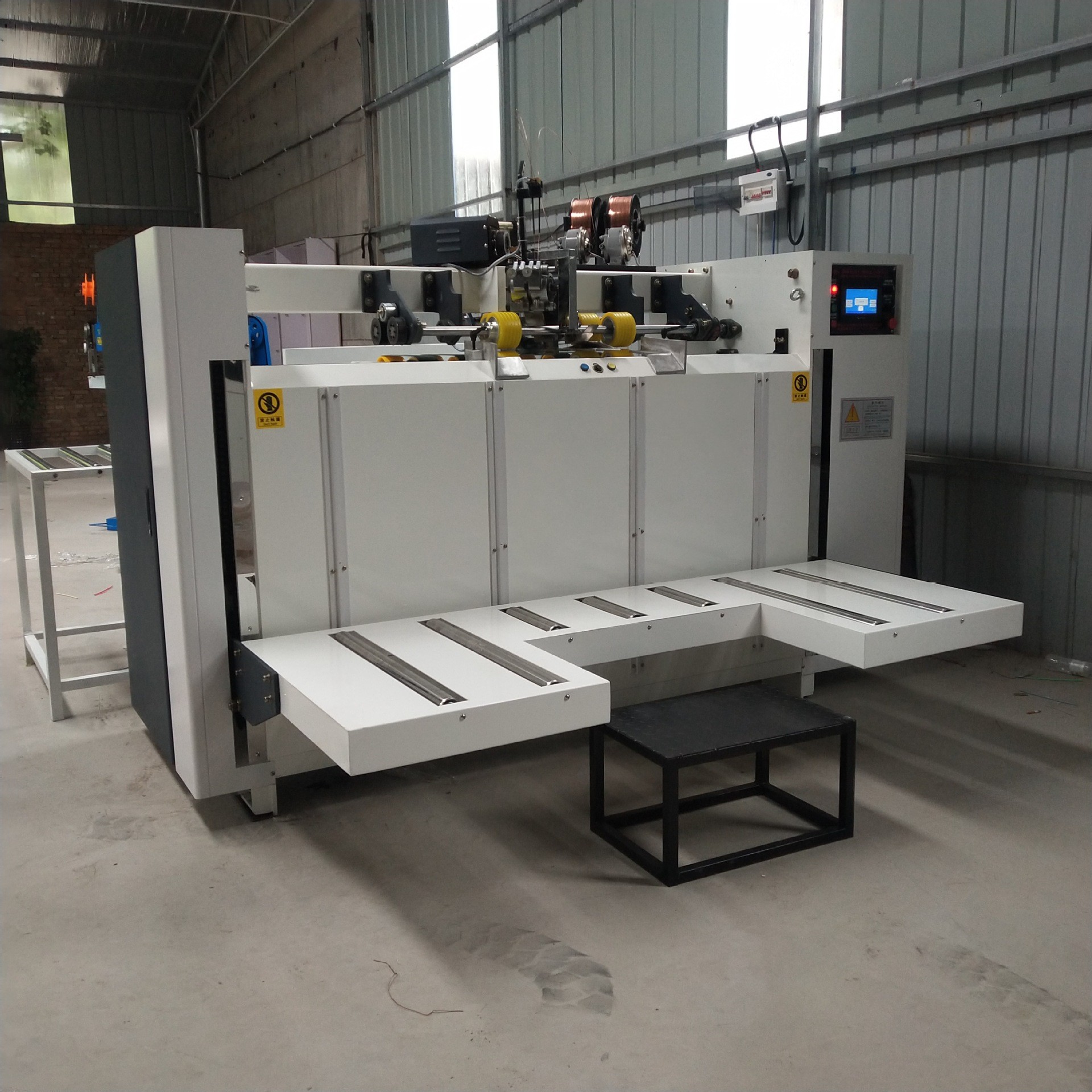

Semi Auto Carton Box Stitching Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HRT-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Maximum Pardboard Size: 2800*1500mm Minimum Pardboard Size: 660*330mm
Nail Distance: 30-120mm Maximum Speed: 600 Nails/min
Name: Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine Power: 6HP
Nail Wire Model: #17、#18 Number Of Nails: 1-99
High Light:

Semi Auto Carton Box Stitching Machine


600 Nails/min Carton Box Stitching Machine

Product Description

Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine
Introduction of Cardboard Box Stitching Machine
1. Dual-servo-drive imported from Yaskawa, Japan, High precision, Low fault rate while reducing the mechanical transmission part.
2. Touch screen operation, Conveniently adjustment like nail distance, nail number, nail types & tail gate.
3. The whole control system is Omron PLC control system.
4. The back electric block board is stepper motor-driven which has high precision, and is quick and convenient in adjustment.
5. The contactor in the control box is Siemens brand.
6The photoelectric and proximity switches are Schneider brand.
7. The under mold and blades are made of tungsten steel made in Japan (wearable)
8. The whole nail heads are made of special steel, precision making.
9. Suitable for single nail, Dual nail, strengthen nails, Dual nail on both sides and single nail in the middle ). Completed at one time. Meet the request of different customer requirements.
Cardboard Box Stitching Machine Parameter

MAX.pardboard Size2800*1500mm
MIN .pardboard Size660*330mm
Nail Distance30-120mm
Speed600 nails / min
Total Power6HP
Nail Wire#17,#18
Paper Stacking Height900MM

Accessory List

5BLADE1Japanese Tungsten Steel
6STITCHING HEAD1Imported from Taiwan, Italian technology
8BREAKER Schneider
9BUTTON Schneider
10Wire Feeder1SHANGHAI

Operation instruction of semi-automatic stitching ...
