Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HC-PL 5 ply 2200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Set/Month |
|
Detail Information |
|||
| Name: | 5 Ply 2200mm 180 Corrugated Board Production Line For Carton Cardboard | Size: | 1800mm-2500mm |
|---|---|---|---|
| Speed: | 180m/min | Total Power: | 250kw |
| Total Length Of Line: | 75m | Flute Type: | According To Customers Needs |
| Main Machine: | Single Facer ,preheater,NC Cut Off Machine ,etc. | Max. Pressure: | 10-12kg/cm2 |
| Highlight: | 5 Ply Corrugated Board Production Line,2200mm Corrugated Board Production Line,5 Ply Corrugated Box Making Machine |
||
Product Description

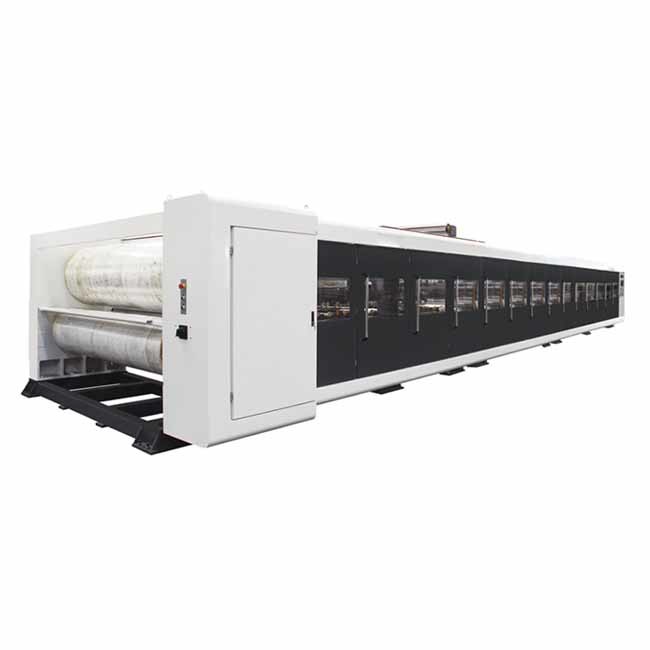

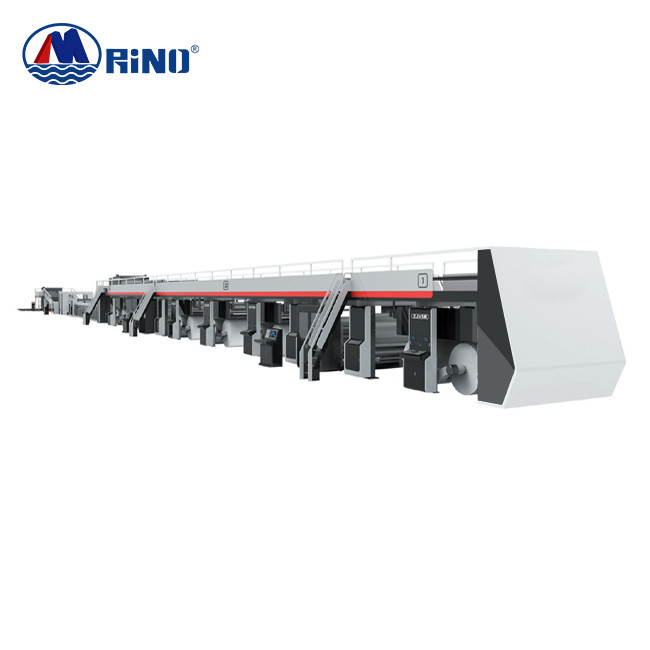

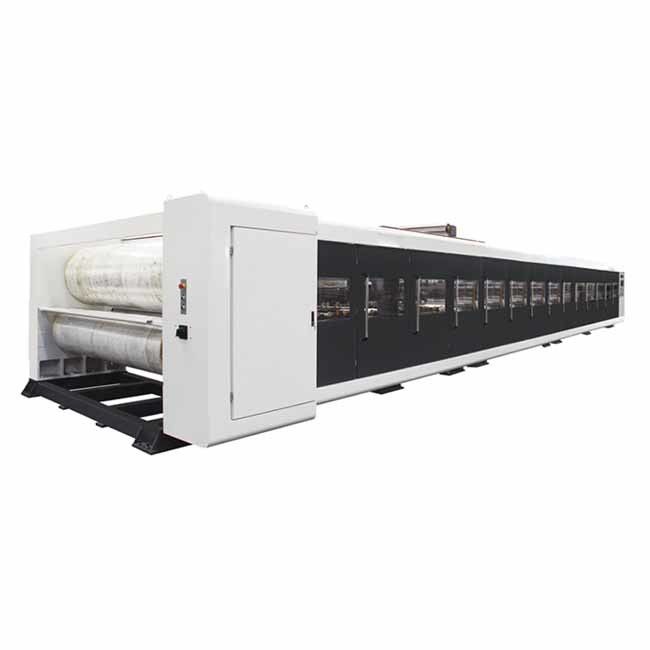

5 Ply 2200mm 180 Corrugated Board Production Line For Carton Cardboard
Machine introduction of Corrugated Board Production Line
According to the corrugated board production process, the corrugated board production line is composed of two relatively independent process sections, wet end equipment and dry end equipment. The wet end equipment mainly includes base paper trays, automatic paper splicing machines, preheating pre-conditioners, and single facer machine, paper conveyor bridges, glue spreaders, double facer machines, etc., wet end equipment will make corrugated base paper into three, five, and seven-layer corrugated cardboard with different flute combinations; cadre equipment mainly includes rotary cutting machines, slitting and creasing machines , Cross-cutting machine, stacking machine, etc., the cadre equipment will slit the corrugated cardboard according to the order requirements for slitting, cross-cutting and stacking.
Parameter
| 1 | Effective width | 2200mm | 2 | Design produce speed | 180m/min | |||
| 3 | Three layer work speed | 150-180m/min | 4 | Five layer work speed | 120-150m/min | |||
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | ------------------ | |||
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm | |||
|
note |
Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. | |||||||
| Top paper index | 100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%) | |||||||
| Core paper index | 80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) | |||||||
| In paper index | 90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%) | |||||||
| 9 | Flute combination | |||||||
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr | ||||
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈250KW | Running Power≈150KW | ||||
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
| 13 | space | ≈Lmin75m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
Corrugated Single Facer Machine
Machine Introduction
* Design speed: 180m/min.
* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* corrugating roller: Dia.280mm with a drum.
* Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance
* Gluing roller: surface is embossed with netting design and chrome plated.
* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
* With preheating and preconditioning rollers.
NC Cut Off Machine
| Width | 2200mm |
| Cutting lenth | 500—9999mm |
| Order keeping | 999orders |
| Cutting precision | ±1mm |
| Power | 11kw |
| Knive roller diameter | 190mm |
| Max.production speed | 180m/min |
Machine Introduction
1. Special structure type, high quality wallboard and seat, reliable and slinky.
2. With watch-window on two sides wallboard, easy for see in manufacturing and maintenance.
3. Driving part adopts hermetic lubricate, make sure high precision, high stability.
4. Adopts high precision and rigidity lapping gear, suit for high speed, oil felt lubrication prolong work-life. Ensure cutting blade accuracy meshing, carton sheets without raw edges.
5. High precision cutting shaft and cutting seat, reliable and slinky.
6. Special structure design in changing blade, easy and fast to change blade.
7. Whole system design C.E standard strictly, pass industry computer test strictly, ensure high quality, long work life and stability.
