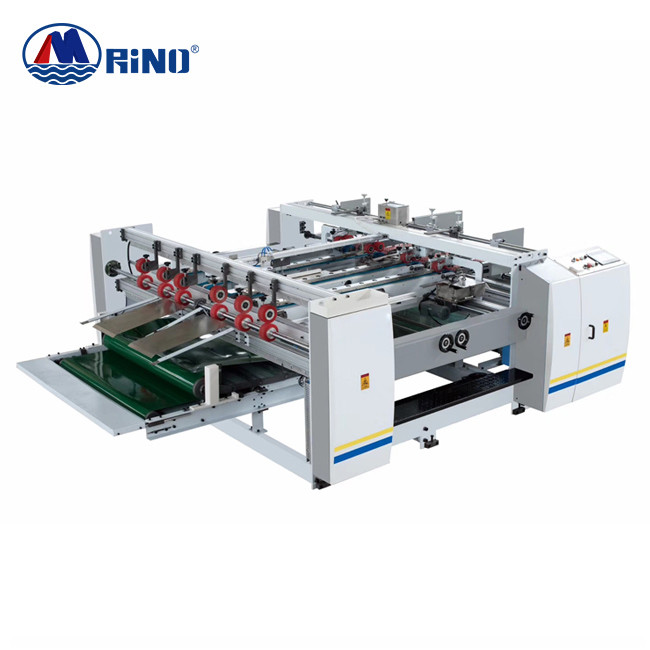

14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-GD2600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2600 Double Pieces Pressing Type Semi-Automatic Carton Box Folder Gluer Machine Max Paper Size: 1300x1300mm
Min Paper Feeding Size: 450x320 Mm Max Height Of Stack: 400mm
Main Motor Power: 1.5KW Total Power: 14KW
Total Weight: 3000kg Dimensions Size: 4000x4000x1400mm
High Light:

Double Pieces Carton Box Folder Gluer Machine


1300mm Carton Box Folder Gluer Machine

Product Description

2600 Double Pieces Pressing Type Semi-Automatic Carton Box Folder Gluer Machine
Carton Box Folder Gluer Machine Introduction
Existing AB sheet carton gluing process: 1. Traditional manual glue brush manual gluing. 2. Apply glue with the old box gluing machine, and then manually glue. The existing processing technology of workers labor cost is high, low efficiency, and gluing precision and quality control is difficult, easy to cause quality accidents. The aforesaid problems have been effectively solved by the advanced technology of woori high speed AB plate gluing machine.
Machine Features
1. The front feeding section of the carton gluing machine is equipped with two cardboard stacking places, which are used to stow AB two pieces of cardboard, so as to improve the production efficiency. The following suction structure is used to improve the conveying accuracy and efficiency.
2. In the middle section, the paper transfer butt joint is bonded by hot sols, and the paper board is in the specified position on all sides, with accurate positioning and high precision.
3. After the section of the folding part, the use of manual folding, effectively solve the die-cutting indentation and corrugated position is not good to determine the problem, carton adhesive size is effectively controlled.
4. This machine can be operated by two people, one person in the front is responsible for paper and the number of pasted carton packaging; One person at the back is responsible for folding the cardboard and feeding it into the pressed belt, which is easy to operate and easy to use.
Parameter of Carton Box Folder Gluer Machine





Max Output Paper Size (Single) 1150x1300mm 1300x1300mm 1500x1300mm
Mini Feed Size (Single) 450x320 mm 450x320 mm 550x450 mm
Max Height Of Stack 400mm 400mm 400mm
Main Motor Power 1.5Kw 1.5Kw 1.5Kw
Total Power 14KW 14KW 18Kw
Total Weight 2.5T 3.0T 4.0T
Dimensions Size 3500x4000x1400mm 4000x4000x1400mm 4500x4000x1400mm

Carton Box Folder Gluer  Machine Detail

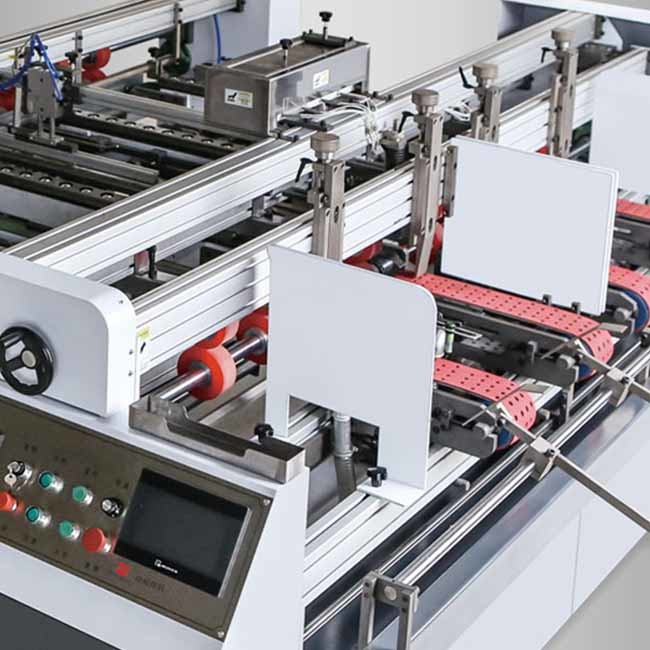

14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm 0

Feeding Unit


The feeding unit of the machine has two paper board stack to hold AB two pieces of papers, which helps to improve the production efficiency. Below adopt the air sucking structure, which is conducive to improve transport efficiency and accuracy.

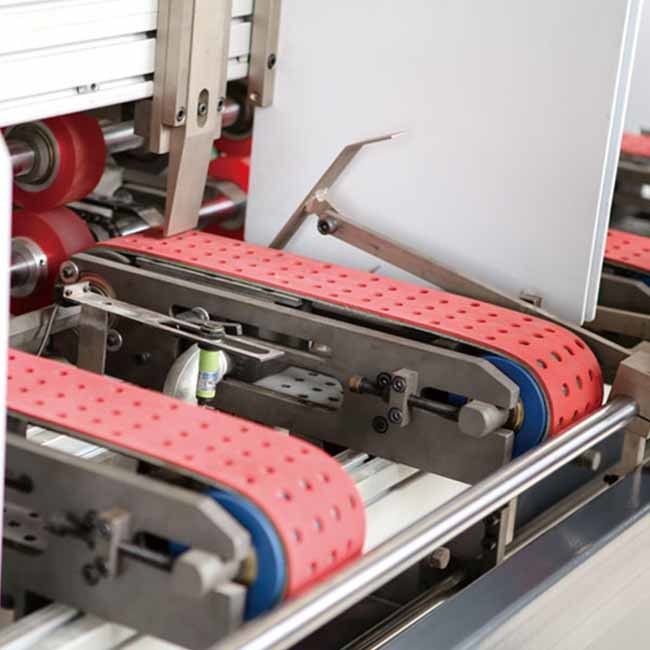

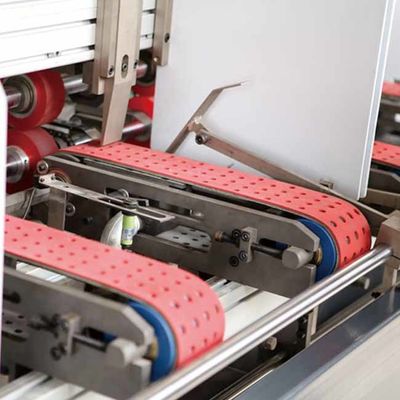

14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm 1

Alignment system


Connecting unit adopts hot melt adhesive, servo positioning, ensuring accurate register and high precision.


Main parts list

Name Brand Model
Interface HCFA China EA-070BC
PLC HCFA China A8c-24x24yt-d
Inverter LITE-ON Taiwan DVP-M
Power supply Mean well Taiwan S-250-24
Servo motor HCFA China MSD-KAD15AA+SM80
Contactor Schneider France D0910
Intermediate relay Hequan China
Button Schneider France
optoelectronic switch Omron Japan
pneumatic element AirTAC Taiwan
