Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Flexo Printing Machine Corrugated Board Printer With Die Cutting Slotter | Grade: | Automatic |
|---|---|---|---|
| Weight: | 30000kg | Gear Thickness: | 60mm |
| Standard Printing Plate Thickness: | 3.2---7.2mm | Tinted Precision: | ±0.5mm |
| Total Power: | 45KW | Design Speed: | 200Pcs/Min |
| Highlight: | 1400x2400 Carton Box Flexo Printing Machine,45KW Corrugated Board Printers,RINO Corrugated Board Printers |
||
Product Description

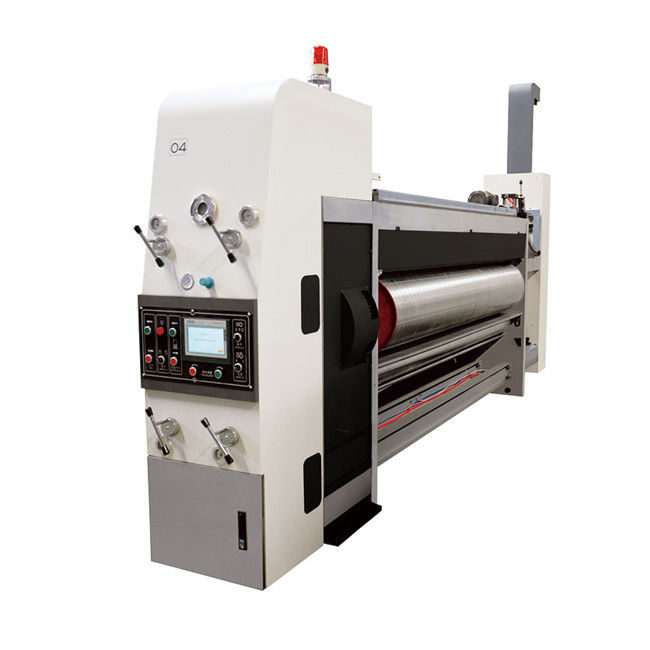

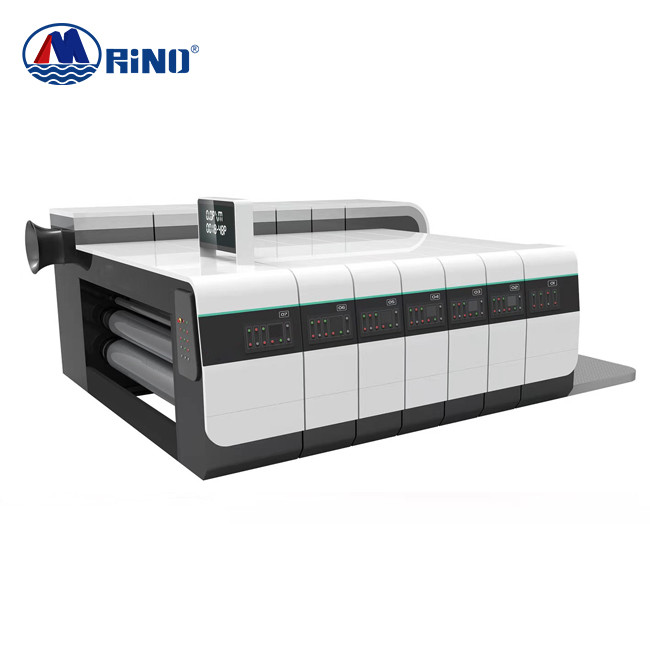

Carton Box Flexo Printing Machine Corrugated Board Printer With Die Cutting Slotter
Box Flexo Printing Machine Introduction
All drive shafts of the whole machine are treated with dynamic and static balance, and the gears are processed by a special process, all are carburized and ground, the overall hardness is HRC52-58, and the accuracy is level 6. All gear lubrication adopts spray-type circulating lubrication, equipped with circulating oil display window, to observe the oiling situation at any time. The gear and the drive shaft are connected by a keyless coupling ring, which is firm and reliable. The machine has the characteristics of high degree of automation, convenient use and maintenance, accurate color registration, exquisite printing patterns, and high production efficiency.
Parameter of Carton Flexo Printing Machine
| Model | HP-LM1400 |
| Width | 2600mm |
| Maximum speed(pcs/min) | 200 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 1400 X 2400 |
| Minimum paper size(mm) | 400 X 650 |
| Skip paper feeding(mm) | 1450 X 2400 |
| Maximum printing size(mm) | 1400 X 2300 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5 Slotting accuracy±1.5 die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
 |
|
Paper feeding unit
|
|
|
Printing unit
The transparent ink supply tube and the high-hanging transparent storage ink cup make it more intuitive to observe the ink supply during production. Circulating cleaning of pipelines and ink rollers, simple and convenient operation and cleaning, and stable ink supply.
|
|
|
Slotting Unit
|
Packaging&shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
