Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||

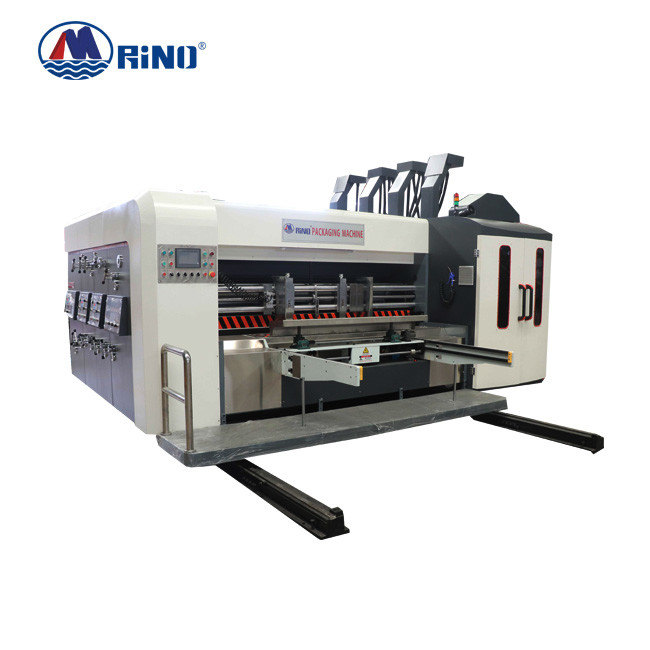

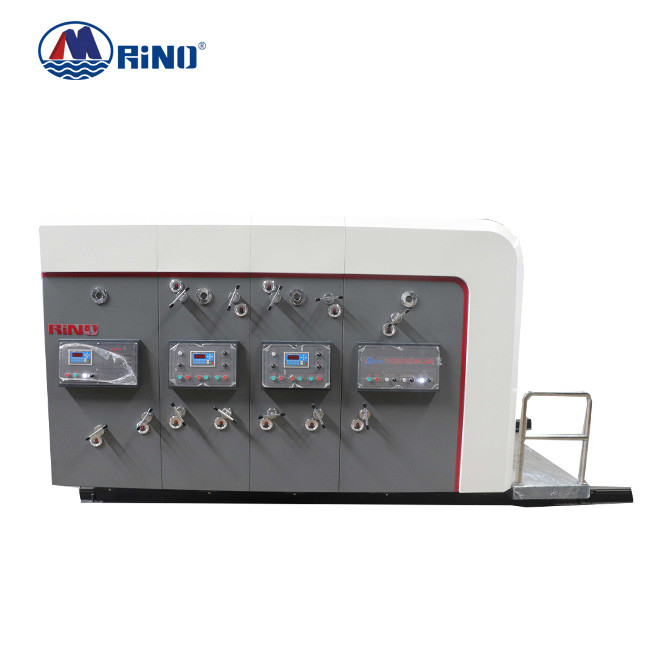

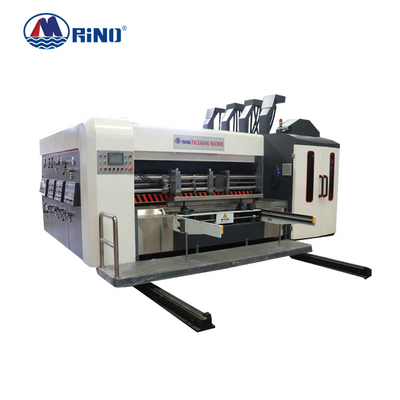

| Name: | Lead Edge Feeding 2 Color Corrugated Box Flexo Printing Machine With Slotter | Grade: | Automatic |
|---|---|---|---|
| Max. Paper Size: | 1728×2600mm | Min. Paper Size: | 450x850mm |
| Max. Paper Printing Size: | 1728×2500mm | Printing Repeating Dots: | 1683 |
| Standard Printing Plate Thickness: | 7.2mm | Total Weight: | 15 Ton |
| High Light: | Lead Edge Feeding Flexo Printing Machine,Corrugated Box Flexo Printing Machine,2 Colour Corrugated Box Flexo Printer |
||
Product Description
Box Flexo Printing Machine Introduction
1. It adopts vacuum adsorption, leading edge feeding, and the whole operation is humanized design, which can be set, modified, executed, replaced, memorized and displayed accurately in a short time.
2. The material of the aluminum drive roller is made of high-quality steel, with balance correction, smooth operation, surface grinding, and hard chrome plating.
3. Full gear transmission, high-quality alloy steel, heat-treated and ground.
4. Automatic oil balance device to keep the oil balance of each unit.
5. With automatic zeroing, recording memory, printing plate cleaning memory, order dust removal and other functions, optional touch screen PLC control, easy to operate.
Parameter of Carton Flexo Printing Machine
| Inside width of wallboard | 2800 | |
| Max Machine Speed (sheets/min) | 150 | |
| Economic Working Speed (sheets/min) | 100 | |
| Max Feeding Size (mm) | 1728×2600 | |
| Max Printing Size (mm) | 1728×2500 | |
| Min Feeding size (mm) | 450*850 | |
| Color registering accuracy | ±0.5 | |
| Die cutting accuracy | ±1.5 | |
| Standard Plate Thickness (mm) | 3.2-7.2 | |
| Suitable Cardboard Thickness (mm) | 2 - 11 | |
| Min Slotting Distance (mm) | Positive Knife | 130×130×130×130 |
| Negative Knife | 260×80×260×80 | |
| Total Power (kw) | 33 | |
Main units
|
|
Paper feeding unit
(1)Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators. (2)Air pressure interlocks, lock securely, conveniently and accurately. Machine clutch drive shaft is equipped with overload protection device. (3)Active self-locking function: if unit is not completely locking state, the host cannot start, to ensure the safety of machine and operator; while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.
|
|
|
Printing unit
(1)Planetary gear structure (2)Digital computer 360 ° adjustment, both running and stopping state conditions (3)Printing phase adjustment of PLC computer display adjustment (4)After units separate, automatic reset system (eraser memory) (5)Electrically adjust the lateral position, and the adjustment distance is 5mm in total
|
|
|
Die Cutting Unit
(1)Adjust the transfer roller use computer and electric digital control, (2)The rubber roller compensated by motor-driven,control the speed of the rubber roller, range ±3mm (3)Rubber roller cutting structure, keep rubber surface roughness
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
