Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1650 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1650mm High Speed Automatic Carton Box Die Cutting Machine Die Cutter Manufacturer | Maximum Paper Size: | 1650*1200mm |
|---|---|---|---|
| Minimum Paper Feeding Size: | 650*500mm | Die Cutting Accuracy: | ±0.5mm |
| Maximum Speed: | 5500pcs/h | Total Power: | 37KW |
| Total Weight: | 38T | Minimum Front Scrap Size: | ≥8mm |
| High Light: | Carton Box Die Cutting Machine High Speed,5500pcs/h Carton Box Die Cutting Machine,5500 Rpm Carton Box Die Cutting Machine |
||
Product Description

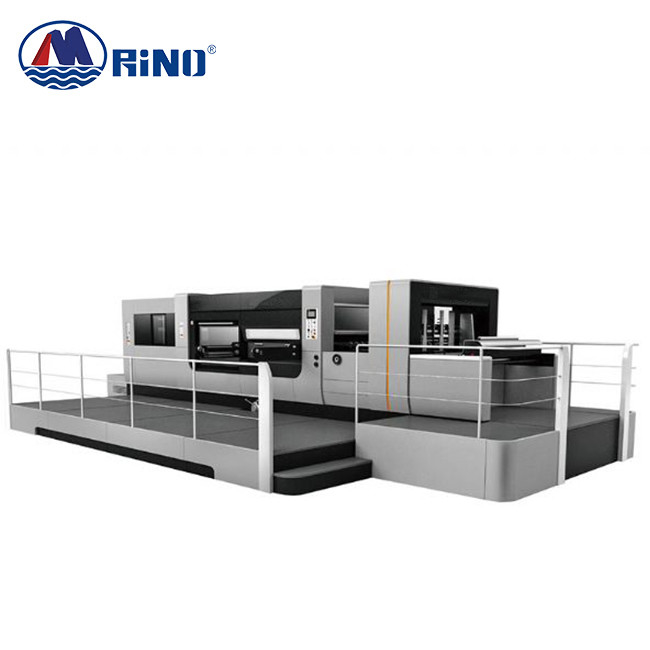

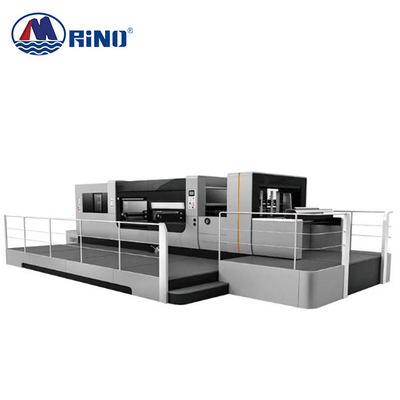

1650mm High Speed Automatic Carton Box Die Cutting Machine Die Cutter Manufacturer
Carton Box Die Cutting Machine Introduction
1650 Leading edge paper feeding automatic flattening and full waste removal die-cutting machine (high-speed machine) This product adopts a gear-connected intermittent mechanism, and increases the speed of the host to 5500 rpm by increasing the stroke of the host.
Carton Box Die Cutting Machine Parameter
| Model | HD-L1650 |
| Paper processed cardboard | corrugated board less than 9mm |
| Max. paper size | 1650mm×1200mm |
| Min. paper size | 650mm×500mm |
| Max. Die-cutting size | 1630mm×1180mm |
| Feeding paper pile height | 400mm |
| Delivery paper pile height | 980mm |
| Die cutting pressure | 450T |
| Max. working speed | 5500sheets/h |
| Total power | 37KW |
| Voltage | 380V |
| Weight | 38T |
| Dimensions | 11200mm×5560mm×2550mm |
Main Units
|
|
Paper feeding unit |
|
|
Die cutting unit
|
Finished Products
Our Factory
