Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HR-S41400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Slotter Corrugated Box Rs4 Slotter Machine Carton Box Making Machine | Max. Feeding Paper : | 1400*2400mm |
|---|---|---|---|
| Maximum Machine Speed: | 60pcs/min | Paper Slotting Width: | 7.5mm |
| Main Power: | 4 Kw | Usage: | Corrugated Carton Box Slotting And Creasing |
| Phase Adjustment Method: | Electric 360° | Machine Working Speed: | 40-50 Pcs/min |
| High Light: | Rs4 Corrugated Rotary Slotter Machine,1400*2400mm Corrugated Rotary Slotter Machine,60 Sheet/Min rotary slotter machine |
||
Product Description

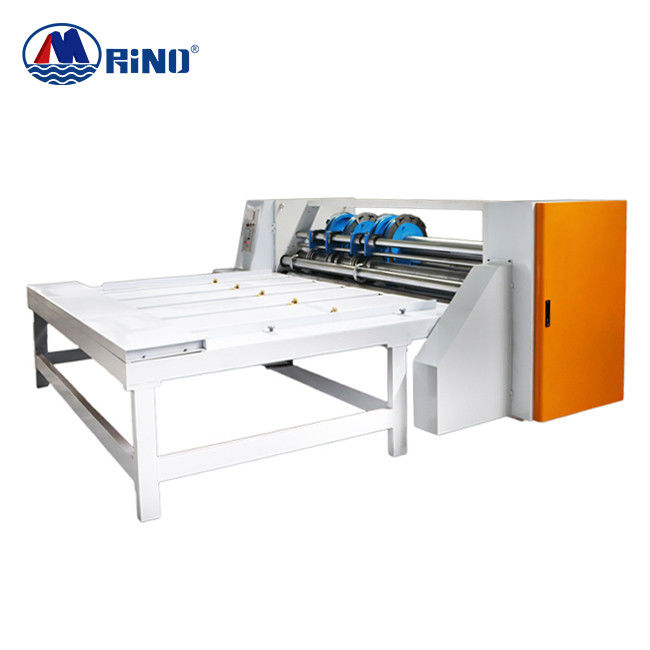

Slotter Corrugated Box Rs4 Slotter Machine Carton Box Making Machine
Machine Introduction of Corrugated Rotary Slotter Machine
This series corrugated paperboard seperating paper rolling line cutting corner opening slot machine, is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand, general flexual paperboard is applicable too.
Slotting tool apron can be turned 360 degree positive and reverse, circularly adjusted, adopt motor micro-adjusting equipment, convenient to operate, accurate adjusted size, locking reliable and slotting accuracy.
Taiwan showdown brake motors,coded pulse monitor, sensitive and accurate, microcomputer show, memory is memory and automatic zero adjustment phase (choose) function.
Slotted synchronized adjustments on the line and save time. Lubricating system adopt the type of spraying self-lubricate.
Corrugated Rotary Slotter Machine Parameter
| Model |
The Max. Feeding Area (mm) |
The Max. Working Speed (sheet/min) |
The Slotting Width (mm) |
The Main Motor power (KW) |
|
HR-S4900 |
900*2400 | 60 | 7.5 | 4 |
|
HR-S41200 |
1200*2400 | 60 | 7.5 | 4 |
|
HR-S41400 |
1200*2400 | 60 | 7.5 | 4 |
|
HR-S41600 |
1600*2400 | 60 | 7.5 | 4 |
Main Structure
1. Feeding table adopts chain style manual feeding paper.
2. Slotting blade phase adopts 360 degree positive turn and reverse turn, blade axes treated. by rigidity chroming electroplate and nicety grinding ,firmness durable
3. Transmit gear adopt no clearance cooperation, debase gear adjust error.
4. Gear lubricate, adopt spout out style system .prolong gear using life.
5. Slotter phase :electric number digital adjust
6. Combined slotting creasing slitting knives which is easy to change order.

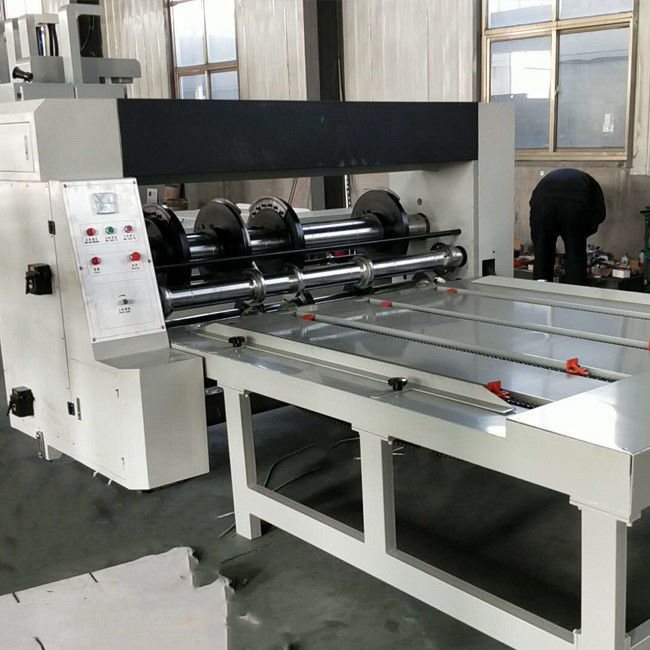

Detailed Picture
FAQ
1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q: Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
7. Q: Do you inspect machines before packing?
A: Of course we do.we have QC department to debug the machine before packing
8. Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery.
9. Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
