Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-H1300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

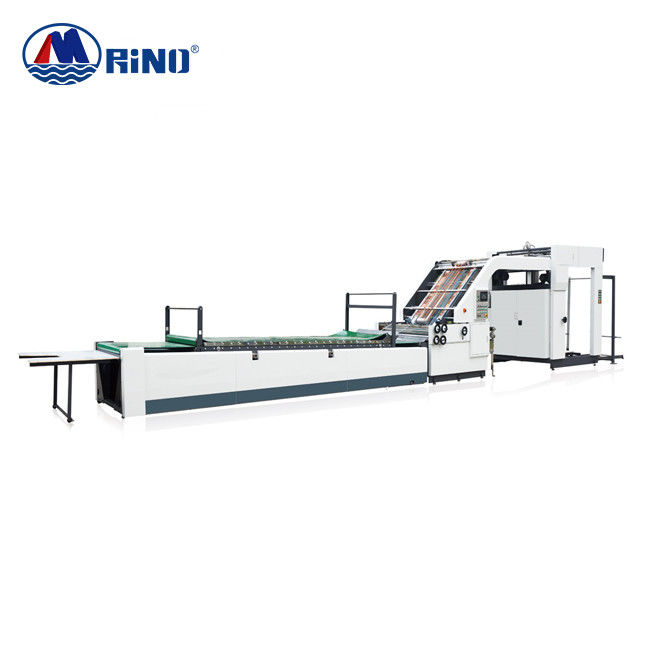

| Name: | 1300 Automatic Corrugated High Speed Flute Laminator Machine Flute Laminating Machine | Maximum Paper: | 1100*1300mm |
|---|---|---|---|
| Minimum Paper: | 400*400mm | Maximum Speed: | 12000 P/H |
| Overall Dimension: | 13600×2050× 2600mmmm | Total Weight: | 8000kg |
| Total Power: | 16.6KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | Computerized Flute Laminating Machine,1100*1300mm Flute Laminating Machine,1100mm flute lamination machine |
||
Product Description
Main Parameter
| Model |
HF-H1300 |
|
Maximum size (W*L)(mm) |
1100*1300 |
|
Minimum size (W*L)(mm) |
400*400 |
| Top feeding paper thickness | 200g/m2-1100g/m2 |
| Bottom feeding paper thickness | 0.5-10mm |
| Laminate precision (mm) | ≤±1.5 |
| Max.Speed (p/hour) | 12000 |
| Overall dimension |
13600×2050× 2600mm |
| Total weight | 8000kg |
| Total power | 16.6KW |
Main Units
|
|

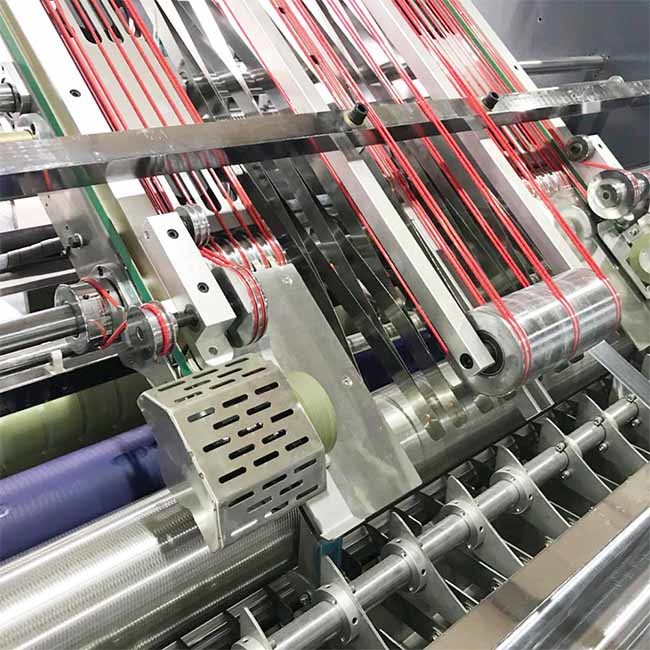

Top paper feeding unit
Consisting of stream feeding suction head,four sets of forwarding suckers ensuring smooth transportation of substrate.
|
|
|
Bottom paper feeding unit
The servo motor is used to drive the suction belt to feed the paper, corresponding to A/B/C/D/E/F/N flute, three layers, four layers, five Layer, seven-layer corrugated bottom paper and paperboard, gray board bottom paper are all suitable for smooth and accurate conveying; enhanced mutual pressure suction design, the thickest 1100g bottom paper can be sent .
|
|
|
Positioning unit
The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
|
