Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HH-M1800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | 1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand | Max. Working Width: | 1800mm |
|---|---|---|---|
| Min. Working Width: | 900mm | Max. Paper Mill Diameter: | 1500mm |
| Max Working Pneumatic Pressure: | 16-18Mpa | Power: | 380V, 50Hz |
| Length Of Track For Carry Paper Mill: | 6000mm | Function: | Kraft Paper Holder Feeding |
| High Light: | Mill Roll Stand Cardboard Production Line,Hydraulic Control Cardboard Production Line |
||
Product Description

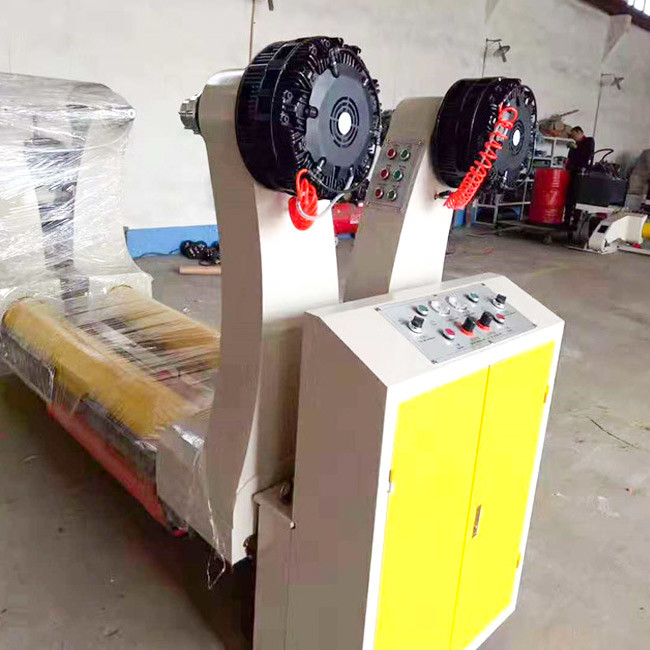

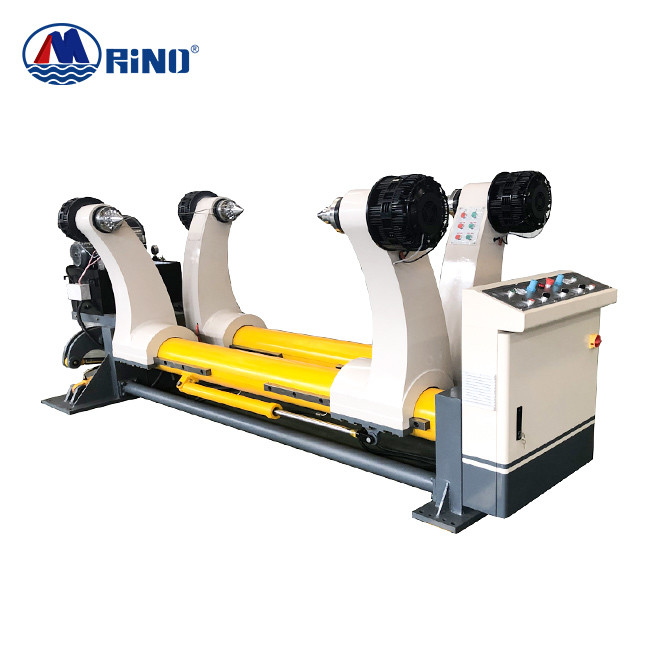

1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand
Features of Hydraulic Shaft Less Mill Roll Stand
1. To support and supply the scroll paper out in the course of production.
2. Hydraulic control of the paper reel, clamping, lifting, moving and so on.
3. The sturcture is double rotary shafts with four arms;support two paper mill rolls on both arms simultaneously.

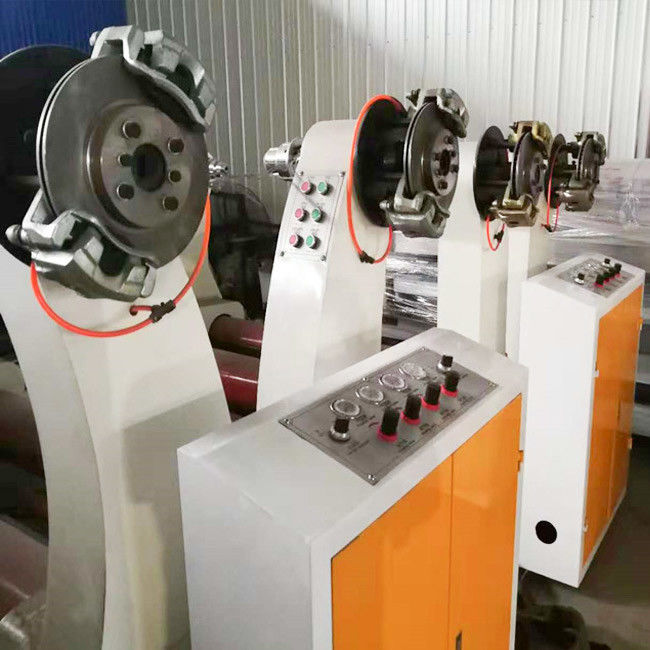

4. Using multi-point brake or manual web tension, tooth chucks, which reduce paper waste.
Parameter of Hydraulic Shaft Less Mill Roll Stand
|
Product Name
|
Hydraulic Mill Roll Stand
|
|
Width
|
1200-2800mm
|
|
Roll Paper Min. width
|
1200-2000mm: 800mm
2000-2800mm: 1200mm
|
|
Roll paper diameter
|
Max. 1500mm
|
|
Support Weight
|
Max. 3Tons
|
|
JIG
|
Standard: Inner expanding chuck
Option: Zero waste type chuck
|
|
Feeding trolley
|
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
|
|
Brake
|

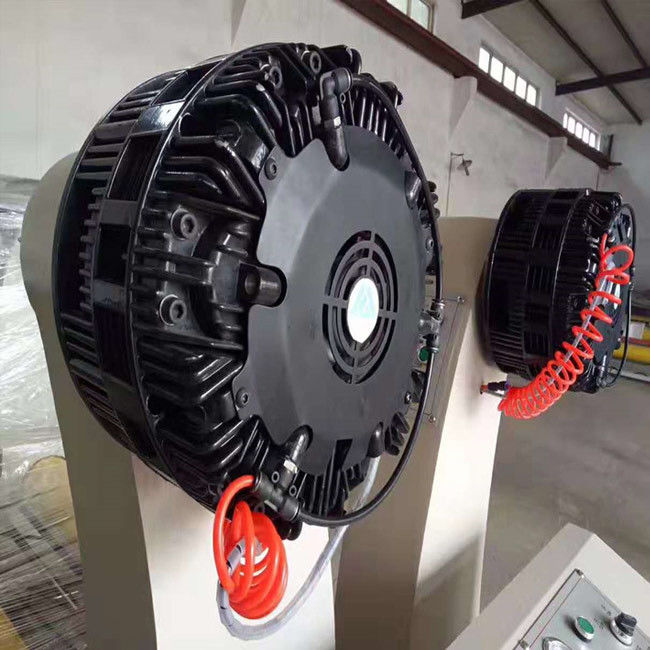

Pneumatic, multi-point brake
|
|
Material
|
Cast Iron
|
|
Network control
|
Available, need to connect to Auto Splicer, Automatic tension adjustment
|
|
Centering device
|
Option
|
|
Connect with Roll paper conveying system
|
Available
|
Hydraulic Shaft Less Mill Roll Stand Introduction
|
|
Main Parts
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang prduction | Q235AWelding parts |
| bearing | HRB OR C&U | |
| teeth chuck | 3-4inch shared | |
| Main electrical appliance | Siemens |
