Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GS2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Maximum Cardboard Length Size: | 2800mm | Minimum Cardboard Length Size: | 340mm |
|---|---|---|---|
| Name: | 2800 Semi Automatic Corrugated Box Pasting Machine Carton Box Folder Gluer Machine | Max Paper Cardboard Width Size: | 1515mm |
| Min Paper Cardboard Width Size: | 250mm | Feeding Paper Height: | 900mm |
| Main Motor : | 2200w | Machine Weight: | 2000kg |
| High Light: | 2200w Corrugated Folder Gluer Machine,40 Pieces /Min Corrugated Folder Gluer Machine |
||
Product Description

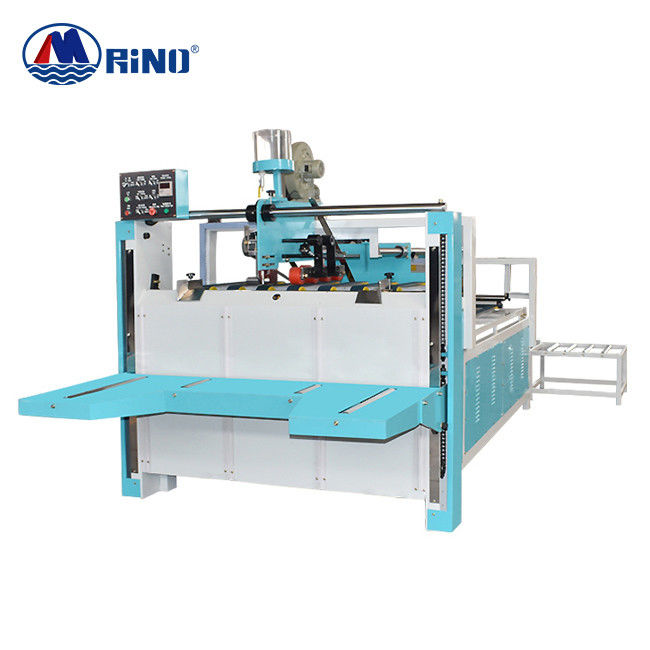

2800 Semi Automatic Corrugated Box Pasting Machine Carton Box Folder Gluer Machine
Carton Box Folder Gluer Introduction
Semi-automatic carton box folding gluing machine is the last process equipment of carton forming. It is suitable for the combination of three-layer and five-layer corrugated cardboard (if seven layers need to be bonded, it can be customized). It does not require nails and nails, and the cost is low. Suitable for all kinds of cartons bonding. It is suitable for the bonding of continuous cartons, the back section is automatically counted, and 10 cardboards can be output horizontally, which is convenient for bundling. Mid-section correction function, the carton will not appear the phenomenon of scissors. This machine has high production efficiency, and the cardboard produced is square and beautiful. The biggest advantage is that it consumes less glue and the cost is 10 times lower than that of boxed flat wire. The bonding is firm, the operation is convenient, the labor and electricity are saved, and the operation is stable. It is an ideal equipment for exporting high-end carton processing.
Parameter
| Max cardboard size (length +width)*2(mm) | 2800 |
| Min cardboard size (length +width)*2(mm) | 340 |
| Max cardboard size (width +height) (mm) | 1515 |
| Min cardboard size (width +height) (mm) | 250 |
| Feeding cardboard height(mm) | 900 |
| Power of main motor | 2.2 |
| Machine weight(kg) | 2000 |
| Machine speed(pieces /min) | 40 |
| Dimension(mm) length *width *height | 5500 x 1800 x 2000 |

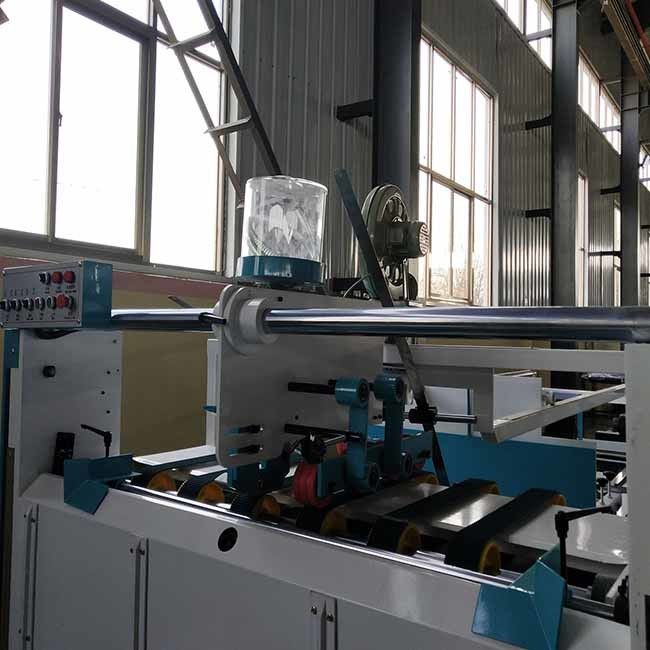

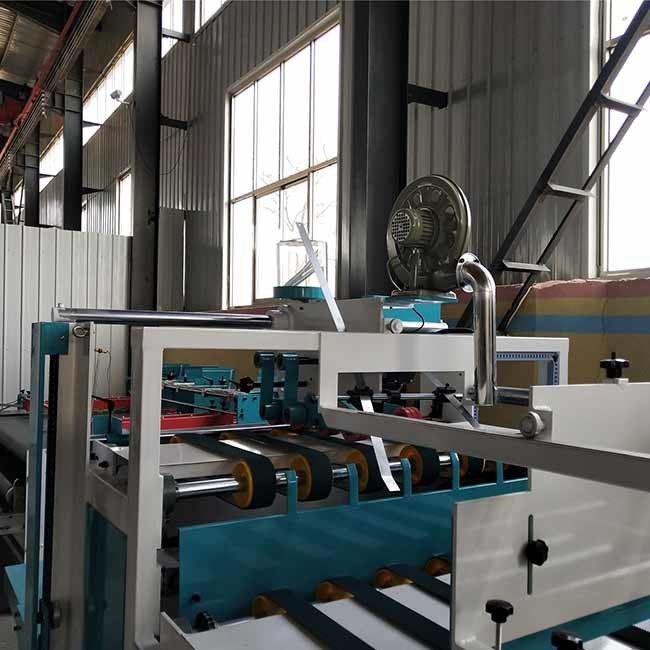

Machine Details
|
|
