Name: 1600mm Carton Box 3 Color Flexo Printing Machine CE certificate
Brand: RINO
SKU: HP-LM1600
Rating: 4.9 (117 reviews)

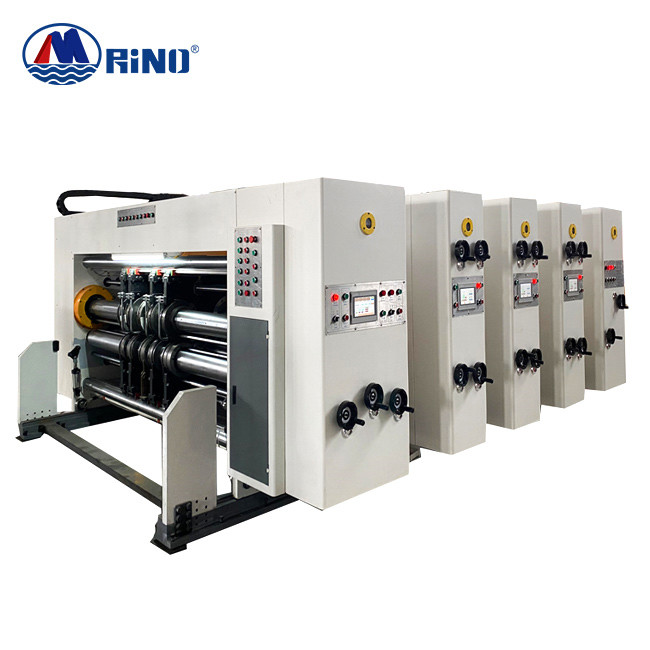

1600mm Carton Box 3 Color Flexo Printing Machine CE certificate

Product Details:

Place of Origin:

China

Brand Name:

RINO

Certification:

Model Number:

HP-LM1600

Payment & Shipping Terms:

Minimum Order Quantity:

1 Set

Price:

Negotiation

Packaging Details:

Wrapped with film or in wooden case

Delivery Time:

40-60 Working Days After Deposit

Payment Terms:

L/C, T/T

Supply Ability:

10 Set/Month

Detail Information
Product Description

Detail Information
Name:	1600 Carton Box 3 Color Flexo Printing Machine With Slotter For Corrugated Board	Grade:	Automatic
Weight:	28-32 T	Voltage:	380V
Slotting Precision:	±1.5mm	Tinted Precision:	±0.5mm
Total Power:	45KW	Design Speed:	200Pcs/Min
High Light:	1600mm Carton Flexo Printing Machine , 3 Color Carton Flexo Printing Machine

Product Description

1600 Carton Box 3 Color Flexo Printing Machine With Slotter For Corrugated Board

Carton Box Flexo Printing Machine Introduction

Fully Servo Control Vacuum Suction Corrugated Box Making Machine Paper feeding servo motor drive double rubber roller, without transmission mechanical error, upper roller is wrapped with wearable rubber, adjustment function to prevent cardboard from deformation, and to keep feeding accurate. easy to operate, accurate on adjustment.

Parameter of Carton Flexo Printing Machine

Width	mm	4000
Maximum Paper feeding size	mm	1600×3800
Effective printing size	mm	1600×3600
Minimum Paper feeding size	mm	350×650
Thickness of printing plate	mm	7.2
Design speed	sheets/mi n	200
Economic speed	sheets/mi n	150-180
Main motor	KW	20
Total power	KW	30-45
Weight	T	28-32
Tinted precision	mm	±0.5
Slotting precision	mm	±1.5

Main units

Paper feeding unit

1. Feeding roll is made of two-layer rubber,inner layer is soft and outer layer is hard,this makes inner layer more flexible and surface more wear-resistant,and reduce the flute damage of the cardboard;
2. Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls gap,motorized and PLC control of feeder side guides;

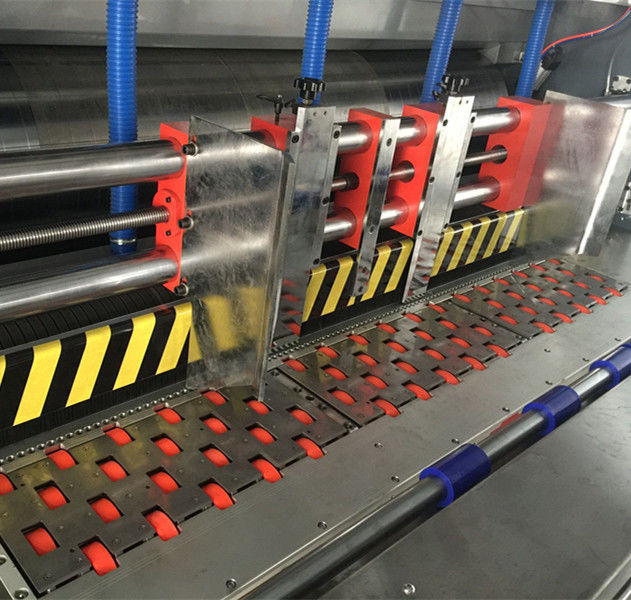

Printing unit

1. Quick set and self locking pull collars.

2. Automatic resetting after cleaning the printer.

Packaging&shipping

Factory Show
