Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2 Color Carton Box Flexo Printing Machine Printer With Die Cutting Slotter | Grade: | Automatic |
|---|---|---|---|
| Total Weight: | 30000kg | Voltage: | 380V |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Total Power: | 45KW | Design Speed: | 200Pcs/Min |
| High Light: | 2 Color Carton Flexo Printing Machine,Automatic Printer Slotter Die Cutter Machine,2 Color Printer Slotter Die Cutter Machine |
||
Product Description

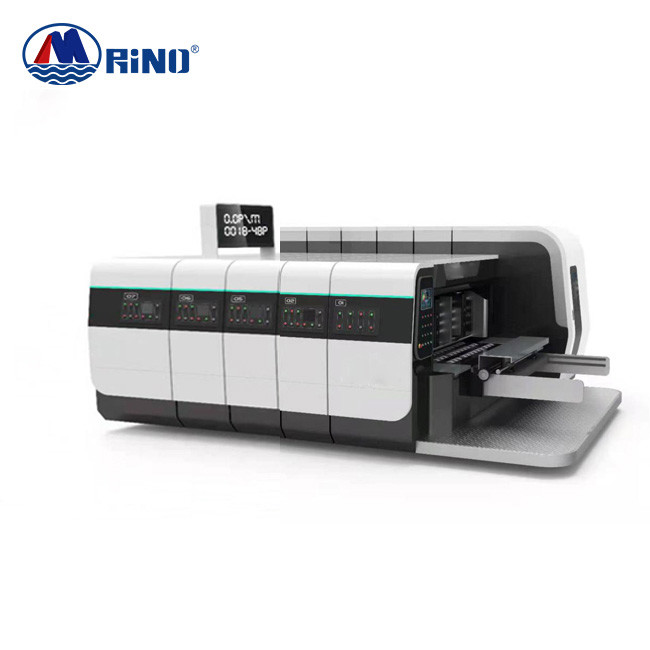

2 Color Carton Box Flexo Printing Machine Printer With Die Cutting Slotter
Box Flexo Printing Machine Introduction
The front of the main machine is equipped with paper output monitoring equipment, and the situation of the paper output department is observed at any time when starting and stopping to ensure the safety of the personnel who start up and adjust the machine. Each part is electrically separated and combined, pneumatic locking, pneumatic lifting, automatic ink distribution, and ink shortage alarm system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1400 |
| Width | 2800mm |
| Maximum speed(pcs/min) | 200 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 1400 X 2600 |
| Minimum paper size(mm) | 400 X 650 |
| Skip paper feeding(mm) | 1450 X 2600 |
| Maximum printing size(mm) | 1400 X 2500 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
|
|
Paper feeding unit
|
|
|
Printing unit
The printing roller phase planetary wheel controls the circumference 360° to adjust, the forward and reverse 360° computer control motor operation adjustment, can be operated or stopped, the touch screen automatically displays the adjustment amount, and automatically adjusts after inputting the size. The printing plate roller is automatically reset to zero.
|
|
|

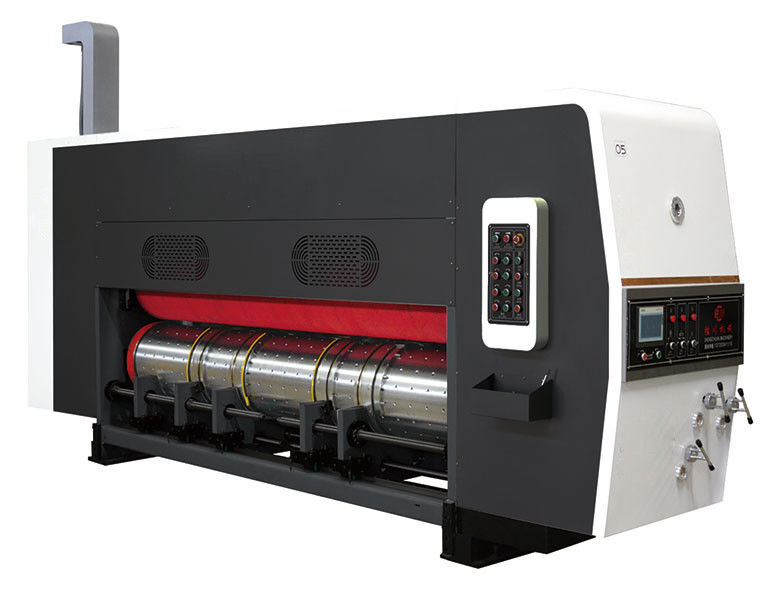

Slotting Unit
Color man-machine interface, menu storage, automatic compensation and correction of shift distance, etc. operations. The shift motor adopts a frequency converter to control the Taiwan Delta motor transmission box, and the motor speed is adjusted by frequency according to the distance.
|
Packaging&shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
