Name: 200 Sheets/Min Carton Box Flexo Printing Machine CE Certification
Brand: RINO
SKU: HP-LM1600
Rating: 4.6 (157 reviews)

200 Sheets/Min Carton Box Flexo Printing Machine CE Certification

Product Details:

Place of Origin:

China

Brand Name:

RINO

Certification:

Model Number:

HP-LM1600

Payment & Shipping Terms:

Minimum Order Quantity:

1 Set

Price:

Negotiation

Packaging Details:

Wrapped with film or in wooden case

Delivery Time:

40-60 Working Days After Deposit

Payment Terms:

L/C, T/T

Supply Ability:

10 Set/Month

Detail Information
Product Description

Detail Information
Name:	Large Size 3 Color Carton Box Flexo Printing Machine Lead Edge Feeding With Slotter And Die Cutter	Grade:	Automatic
Weight:	40 MT	Voltage:	380V
Slotting Precision:	±1.5mm	Tinted Precision:	±0.5mm
Total Power:	40KW	Design Speed:	200Pcs/Min
High Light:	200 Sheets/Min Carton Box Flexo Printing Machine , CE Carton Box Flexo Printing Machine

Product Description

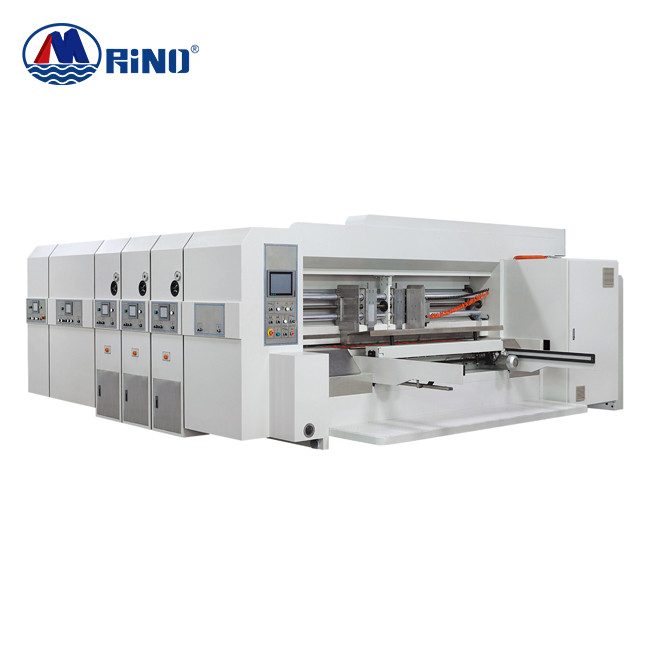

Large Size 3 Color Carton Box Flexo Printing Machine Lead Edge Feeding With Slotter And Die Cutter

Carton Box Flexo Printing Machine Introduction

1. Advanced scientific design concept, European CE certification, independent computer operating table
2. Gap adjustment and phase adjustment are computer controlled
3. Main gear is made of high quality steel, imported from Taiwan
4. All electrical, electronic and pneumatic components adopt European standards
5. Suitable for dot printing on cardboard printing
6. Can be used with stacking machines or printing glue box machines

Parameter of Carton Flexo Printing Machine

Width	mm	4000
Maximum Paper feeding size	mm	1600×3800
Effective printing size	mm	1600×3600
Minimum Paper feeding size	mm	350×650
Thickness of printing plate	mm	7.2
Design speed	sheets/mi n	200
Economic speed	sheets/mi n	150-180
Main motor	KW	20
Total power	KW	30-40
Weight	T	15
Tinted precision	mm	±0.5
Slotting precision	mm	±1.5

Main units

Paper feeding unit

1. Continuous or alternate sheet feeding (with counter)
2. Adopting the leading edge paper feed from the United States to increase the suction flow, the paper feed is more stable and accurate.
3. Variable frequency control of vacuum airflow and pressure to match cardboard size.

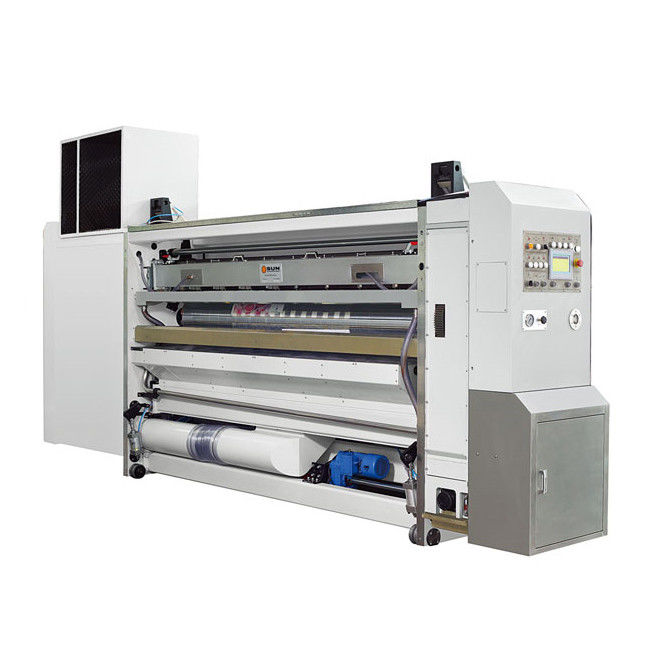

Printing unit

1. Full vacuum suction conveying, strong ability to adapt to warped cardboard, more accurate conveying, and improved color registration accuracy
2. Choice of doctor blade or roller-to-roll ink supply system
3. Automatic switching of cleaning devices, making ink recycling or cleaning easier and faster.

Packaging&shipping

Factory Show
