Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Flexo Printing Machin Lead Edge Feeding With Die Cutting Slotter And Stacker | Grade: | Automatic |
|---|---|---|---|
| Weight: | 30000kg | Voltage: | 380V |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Total Power: | 30KW | Design Speed: | 200Pcs/Min |
| High Light: | 30KW Carton Flexographic Printing Machine,Carton Two Color Flexographic Printing Machine |
||
Product Description

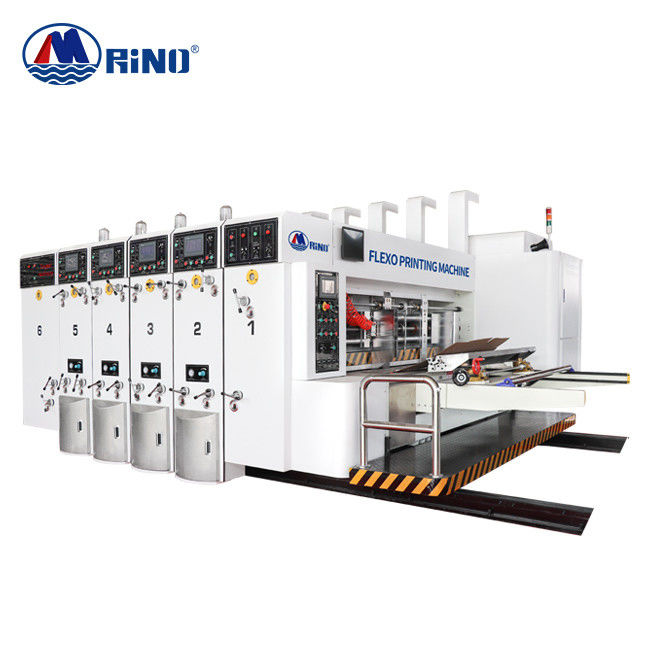

Carton Box Flexo Printing Machin Lead Edge Feeding With Die Cutting Slotter And Stacker
Box Flexo Printing Machine Introduction
The box flexo printing machine mainly including : feeding unit,printing unit ,slotting unit and die cutting unit. Which is an ideal equipment for carton box flexo printing. The carton box flexo printing machine is a printing equipment that can print the required text, pattern and other information on the surface of the carton box. It generally includes the process flow of plate loading, ink coating, embossing, and paper feeding. Carton printing generally includes printing, printing with slotting/die cutting, printing slotting/die cutting.
Parameter of Carton Flexo Printing Machine
|
Width |
mm |
3200 |
|
Maximum Paper feeding size |
mm |
1600×3000 |
|
Effective printing size |
mm |
1600×2800 |
|
Minimum Paper feeding size |
mm |
350×650 |
|
Thickness of printing plate |
mm |
7.2 |
|
Design speed |
sheets/mi n |
200 |
|
Economic speed |
sheets/mi n |
150 |
|
Main motor |
KW |
15 |
|
Total power |
KW |
30 |
|
Weight |
T |
15 |
|
Tinted precision |
mm |
±0.5 |
|
Die cutting precision |
mm |
±1.5 |
Main units
|
|
Paper feeding unit
1. Adopt servo motor driver multi-axis no pressure feeding system, no mechanical transmission error.
|
|
|

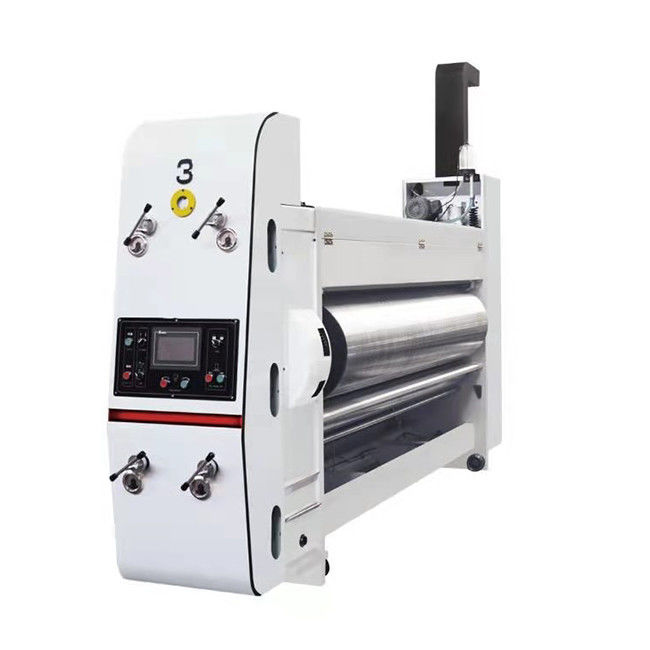

Printing unit
1. The outer diameter is ￠536mm. 2. The surface of the steel pipe is ground and plated with hard chromium. 3. Do balance correction, stable operation. 4. Ratchet fixed reel shaft. 5. Full-page hanging board slot, suitable for 10mm×3mm hanging board.
|
|
|
Die Cutting Unit
1. The outer diameter is 487 ㎜ (without die). 2. The surface of cast steel material is ground and plated with hard chromium. 3. Balancing correction to increase running stability. 4. The distance between the fixed screw holes of the knife mold is 100 ㎜×100 ㎜. 5. Applicable knife mold height is 25.4 mm.
|
Packaging&shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
