Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-G 4&6 1250 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1250 4/6 Corner Paper Board Folder Gluer Machine | Suitable Material: | Card Board 210gsm-850gsm,F ,E ,B,C Flute |
|---|---|---|---|
| Max Mechanical Speed: | 300m/min | Overall Dimension: | 16800*1900*1600mm |
| Weight: | 9.8T | Power Consumption: | 18KW, 380V,50HZ |
| Usage: | Cardboard Pasting Gluing | Glue Type: | Cold Glue |
| High Light: | 50HZ Folding Carton Gluing Machine,380V Carton Folder Gluer,300m/Min Carton Folder Gluer |
||
Product Description

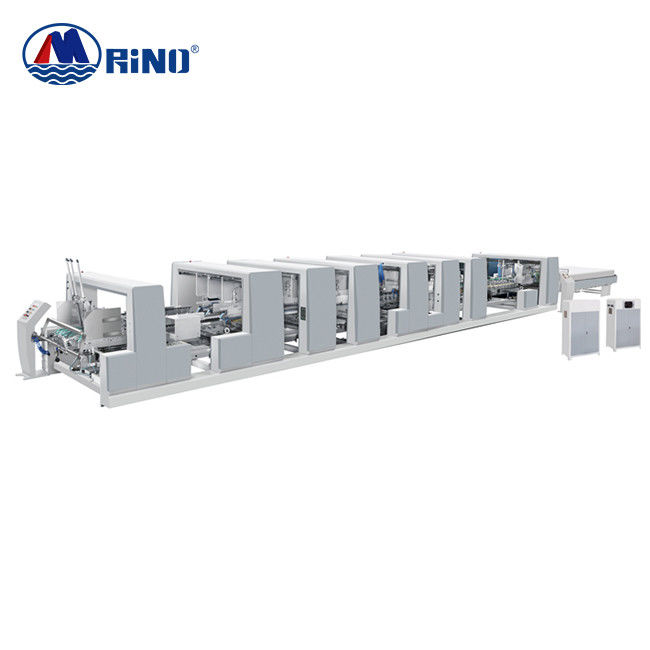

1250 4/6 Corner High Speed Folding And Gluing Machine
Folding And Gluing Machine Characteristics
1. Driving by synchronous belt,ensure smooth and accurate running.
2. Inverter driving,stable and power saving.
3. Use electric adjust,easy operate.
4. Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5. Automatic counting and kicking,quantity can preset.
6. Conveyer pressure adjustable according to the box to ensure best quality.
Folding And Gluing Machine Parameter
| Model |
HF-G 4&6 1250 |
| Suitable material | Card board 210gsm-850gsm |
| Suitable material | F ,E ,B,C flute |
| Max method | Automatic continuous feeding |
| Max mechanical speed | 300m/min |
| Overall dimension | 16800*1900*1600mm |
| Weight | 9.8T |
| Power consumption | 18KW, 380V,50HZ |
| Glue type | Cold glue |
| Compressed air | 6 bar,10 m³/h,60 L |
Main units
 |
|
Equipped with vibrating motor. With ,low noise,with front adjustable wheels,max working capacity can be achieved. Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
|
|
|
Bottom locked unit
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | 4-6 corner | √ | ||
| 15 | monitor | √ | ||
| 16 | Double-sided adhesive | √ |
Machine configuration
| Main motor | Siemens |
| PLC | Siemens |
| Inverter | Siemens |
| Touch Screen | Siemens |
| Driveing Bearing | NSK |
| Main axis | Taiwan chrome plated steel bar |
| Wall thickness (right +left side) | 20mm tempered |
| Feeding belt | NITTA |
| Plain belt | NITTA Japan |
| Low voltage apparatus | Schneider(Rely,Button,Circuit Breaker,a.c. contactor) |
| servo system | Delta Taiwan For 4&6 corner box |
| Gluing system | KQ for 4&6 corner box |
| Encoder | Panasonic |
Finished Product
